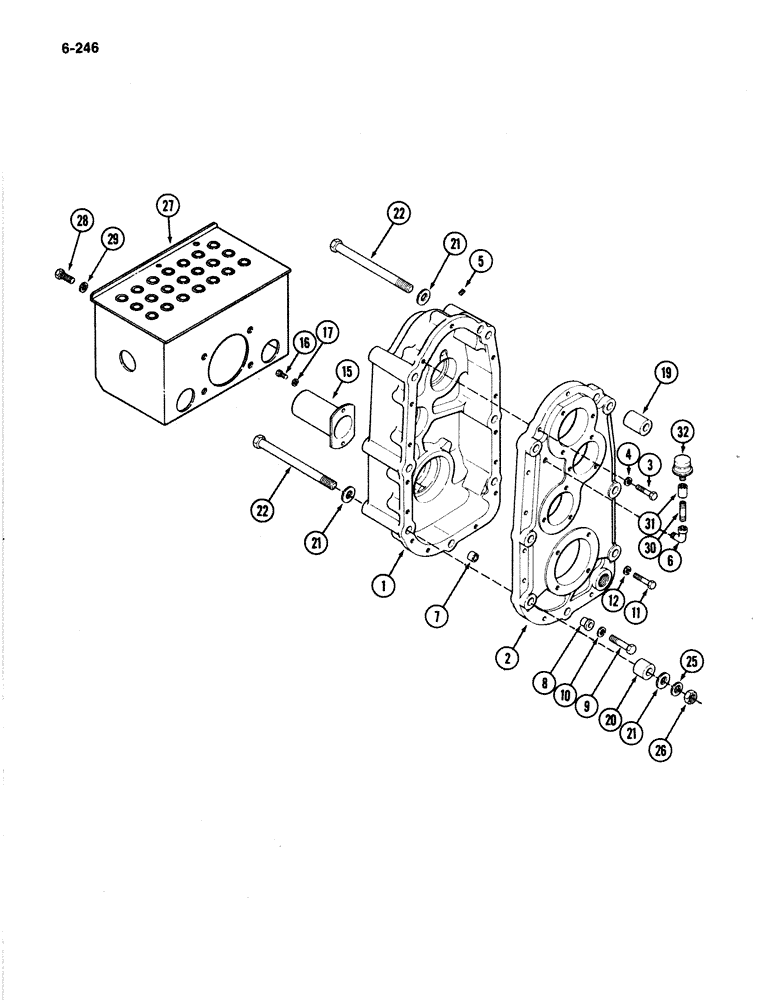

Запчасти Case IH 4894 (6-246) - PTO HOUSING, COVER AND SHIELD (06) - POWER TRAIN

A168215

HOUSING

ASSEMBLY - PTO, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - PTO (Order A168215)

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - housing front (Order A168215)

1шт.

3

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

221-850

PLUG,Hex Soc, 1/16"-27

- pipe socket head, 1/16 inch

1шт.

6

221-412

ELBOW,90 Degree, 1/4"-27, NPT

- 90 degree, 1/4 inch PT

1шт.

7

A50011

SLEEVE

- dowel, Serial Range: cover-housing

2шт.

8

A32426

BUSHING

SPACER - dowel

2шт.

9

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

10

92-8

LOCK WASHER,1/2"

2шт.

11

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

8шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

15

A58238

GUARD

- output shaft

1шт.

16

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

19

A138255

BUSHING

SPACER - upper mounting, 1-51/64 inch (46 mm) wide

2шт.

20

A138254

BUSHING

SPACER - lower mounting, 1-1/64 inch (30 mm) wide

2шт.

21

195-454

WASHER,1.140" x 1 7/8" x .032"

- flat, 13/16 x 15/32 x 1/8 inch (21 x 12 x 3 mm)

6шт.

22

113-735

BOLT,Hex, 3/4" - 10 x 9", Gr 5

- hex, 3/4 NC x 9 inch

4шт.

25

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

26

131-197

LOCK NUT,3/4"-10, GC

NUT - hex lock, 3/4 inch NC

2шт.

27

A177624

PROTECTOR

SHIELD - shaft, universal joint (Replaces A169900)

1шт.

28

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

29

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

30

221-1136

PIPE,Nipple, 1/4" NPT x 1 3/4"

NIPPLE - pipe, 1-3/4 x 1/4 inch PT

1шт.

31

221-1336

COUPLING,Pipe, 1/4" NPT

- pipe, 1/4 inch PT

1шт.

32

A27173

BREATHER

- PTO vent

1шт.
