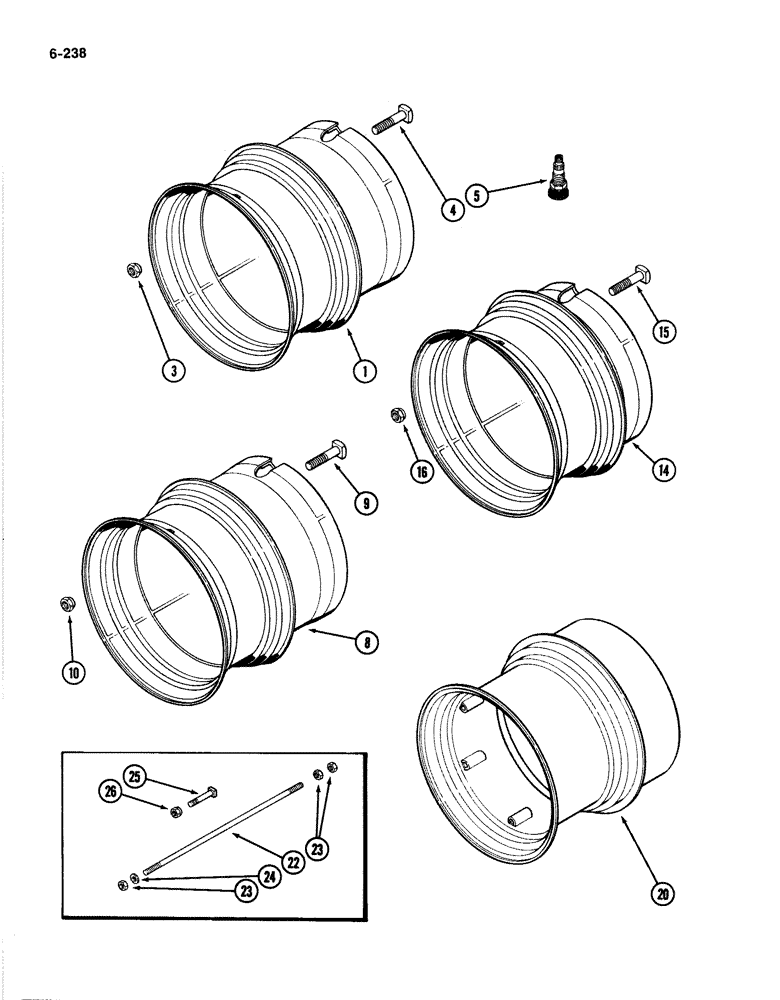

Запчасти Case IH 4894 (6-238) - DUAL WHEELS (06) - POWER TRAIN

1

A160663

WHEEL

RIM - outer, dual wheel, for 18.4 x 34 inch tire (467 x 864 mm) (Wide Spacing)

4шт.

3

A160864

WHEEL NUT

- hex, 90 degree seat, 3/4 inch NC (rim bolt)

40шт.

4

A160853

SQUARE BOLT

- square head, 3/4 NC x 5-1/4 inch rim

40шт.

5

A20058

VALVE STEM

VALVE STEM - Tubeless tire

4шт.

8

A160529

RIM

- outer, dual wheel, for 20.8 x 34 inch tire (528 x 864 mm) (Wide Spacing)

4.шт.

9

A160853

SQUARE BOLT

- square head rim, 3/4 NC x 5-1/4 inch

40шт.

10

A160864

WHEEL NUT

- hex, rim bolt, 3/4 NC, 90 degree seat

40шт.

14

A162802

WHEEL

RIM - outer, dual wheel, For 18.4 x 34 inch tire (467 x 864 mm) (Narrow Spacing)

4шт.

14

A161512

SCREW

RIM - outer, dual wheel, for 18.4 x 38 inch tire (467 x 965 mm)

4шт.

14

A148140

RIM

- outer, dual wheel, for 20.8 x 34 inch tire (528 x 864 mm) (Narrow Spacing)

4шт.

14

A161513

WHEEL

RIM - outer, dual wheel for 20.8 x 38 inch tire (528 x 965 mm)

4шт.

14

A160966

RIM

- outer, dual wheel, for 23.1 x 34 inch tire (587 x 864 mm)

4шт.

15

A160853

SQUARE BOLT

- square head 3/4 NC x 5-1/4 inch

40шт.

16

A160864

WHEEL NUT

- hex, 90 degree seat, 3/4 inch NC

40шт.

20

A180077

WHEEL

RIM - outer, dual wheel, for 24.5 x 32 inch tire

4шт.

A163833

KIT - hardware, dual wheel mounting (used to mount 24.5 x 32 rim to 24.5 x 32 tire) (Machinery Item), Includes: Ref. 22 - 26

1шт.

22

A165667

ROD

- dual wheel

24шт.

23

129-138

NUT,3/4"-10, G8

72шт.

25

D31328

WASHER

- hardened flat

24шт.

25

117-612

SQUARE BOLT,3/4" - 10 x 5", Gr 5

- square head, 3/4 NC x 5 inch

40шт.

26

A160864

WHEEL NUT

- wheel bolt

40шт.
