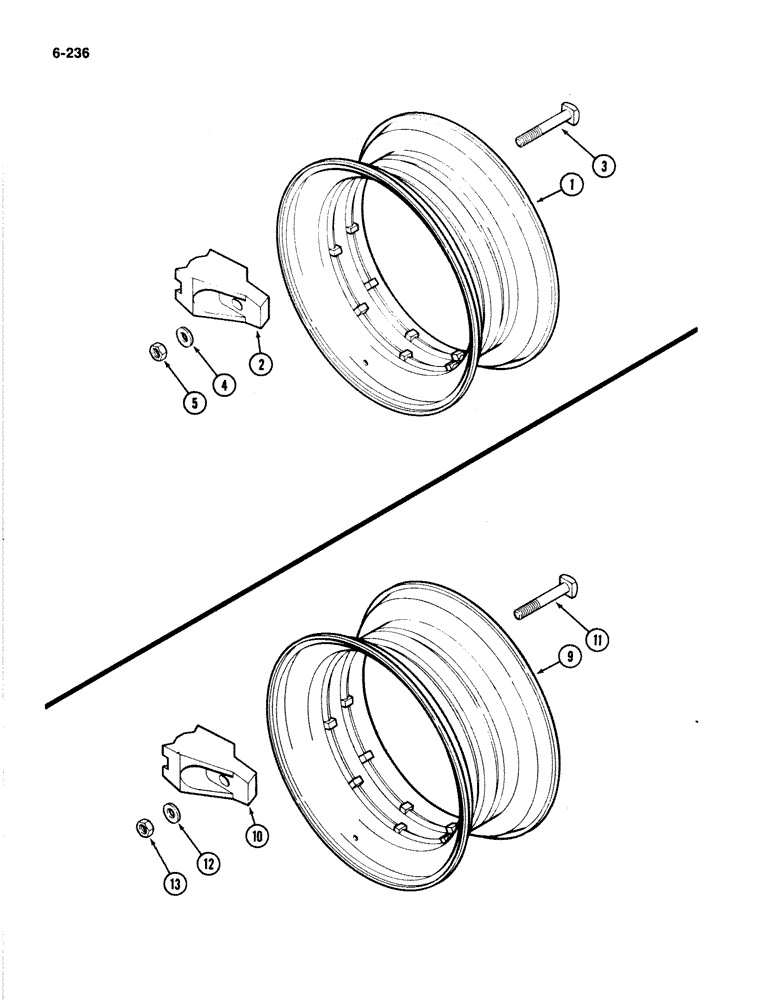

Запчасти Case IH 4894 (6-236) - SINGLE WHEELS (06) - POWER TRAIN

1

A160132

RIM

- wheel, for 18.4 x 38 inch tire (467 x 965 mm)

4шт.

2

A139724

CLAMP

- rim, double position

40шт.

3

A160853

SQUARE BOLT

- clamp

40шт.

4

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- clamp nut

40шт.

5

129-137

NUT,3/4"-10, G5

40шт.

9

A160133

RIM

- wheel, for 20.8 x 38 inch tire (528 x 965 mm)

4шт.

10

A139724

CLAMP

- rim, double position

40шт.

11

A160853

SQUARE BOLT

- clamp

40шт.

12

A61560

LOCK PIN

WASHER - clamp nut

40шт.

13

129-137

NUT,3/4"-10, G5

40шт.
