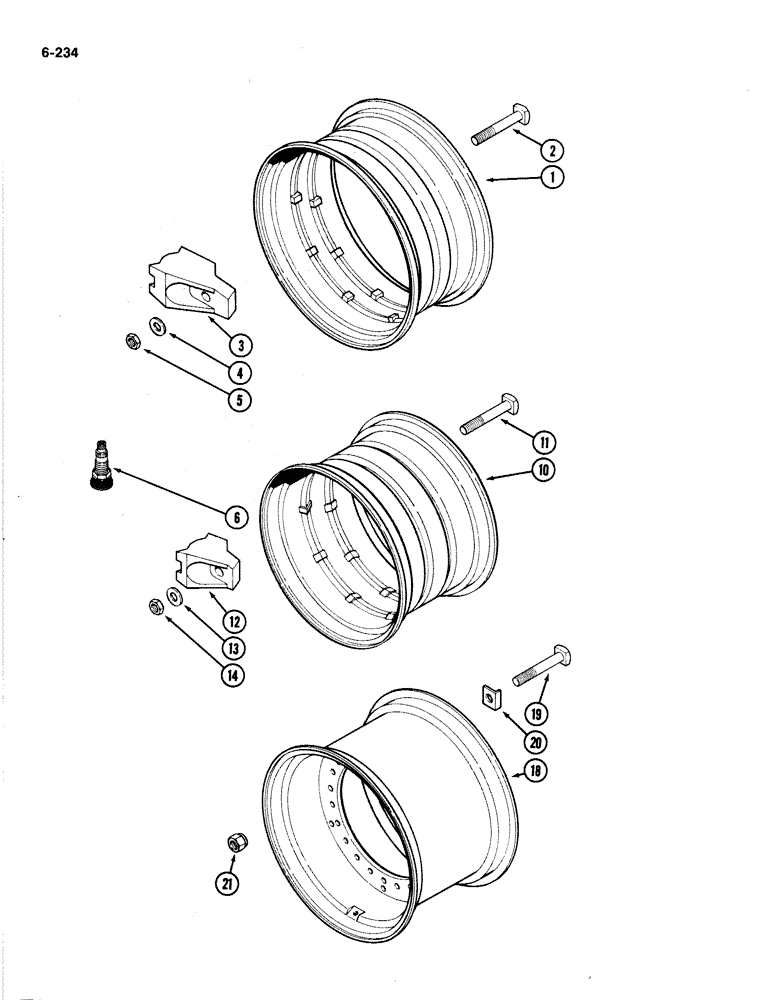

Запчасти Case IH 4894 (6-234) - SINGLE WHEELS (06) - POWER TRAIN

1

A75887

WHEEL

RIM - wheel, for 18.4 inch x 34 inch tire (467 x 864 mm)

4шт.

1

A75891

RIM

- Wheel, for 20.8 inch x 34 inch tire (528 x 864 mm)

4шт.

1

A147805

WHEEL

RIM - wheel, for 23.1 inch x 34 inch tire (587 x 864 mm)

4шт.

2

A160853

SQUARE BOLT

- clamp

40шт.

3

A139724

CLAMP

- rim, double position

40шт.

4

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- clamp nut

40шт.

5

129-137

NUT,3/4"-10, G5

40шт.

6

A20058

VALVE STEM

VALVE STEM - Tubeless tire

4шт.

10

A75890

RIM

- wheel, for 23.1 Inch x 30 inch tire (587 x 762 mm)

4шт.

11

A160853

SQUARE BOLT

- clamp, for 30" (762 mm) tire

40шт.

12

A75894

CLAMP

- rim, double position, for 30" (762 mm) tire

40шт.

13

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- clamp nut, for 30" (762 mm) tire

40шт.

14

129-137

NUT,3/4"-10, G5

for 30" (762 mm) tire 3/4"-10, G5

40шт.

18

A180076

WHEEL

- for 24.5 inch x 32 inch tire (622 x 813 mm) tire

4шт.

18

A148139

WHEEL

- for 30.5 inch x 32 inch tire (889 x 813 mm) tire

4шт.

Ref #18 - Use A167983

1шт.

19

117-614

SQUARE BOLT,3/4" - 10 x 4", Gr 5

- square head, 3/4 NC x 4 inch, for 32" (813mm) tire

40шт.

20

A34799

LOCK WASHER

- bolt clamp lock, for 32" (813 mm) tire

40шт.

21

A160864

WHEEL NUT

- wheel, for 32" (813 mm) tire

40шт.
