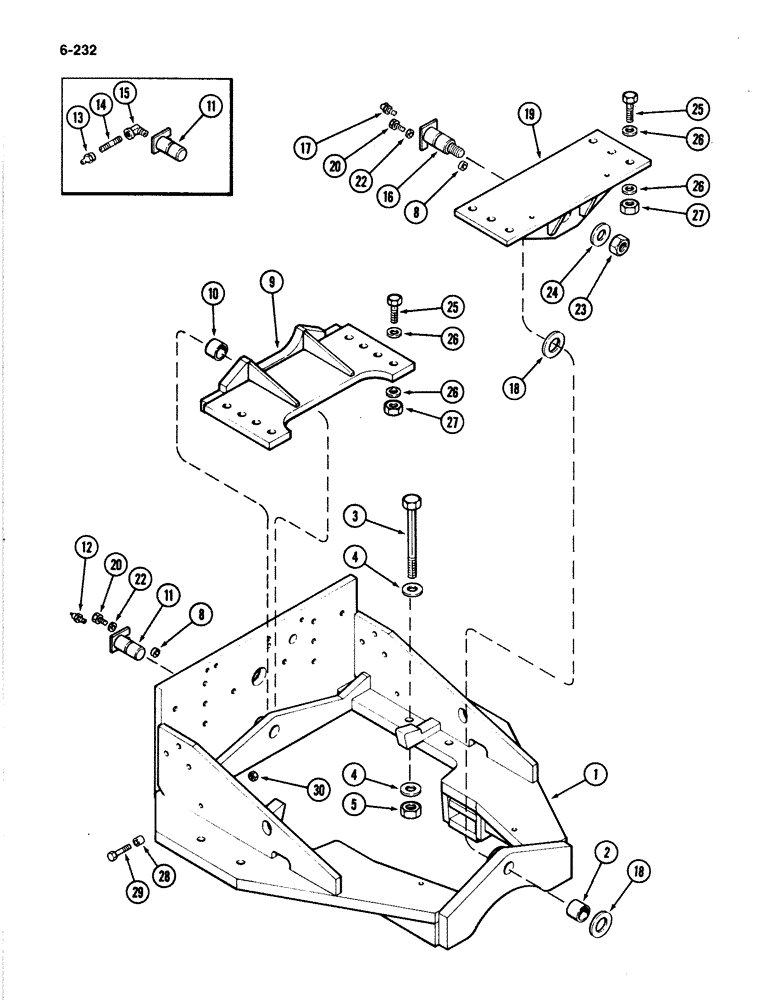

Запчасти Case IH 4894 (6-232) - REAR AXLE PIVOT TRUNNION (06) - POWER TRAIN

1

A161922

TRUNNION

- rear axle pivot

1шт.

2

A142146

BUSHING

- front pivot

1шт.

3

285-18176

BOLT - hex, 1-1/8 NF x 11 inch (Grade 8)

8шт.

4

A152201

WASHER

- trunnion bolt

16шт.

5

131-189

LOCK NUT,1 1/8"-12, GB

NUT - hex lock, 1-1/8 inch NF

8шт.

8

A148908

SPACER

- trunnion pin

2шт.

9

A136969

SUPPORT

- rear, trunnion

1шт.

10

A12058

BUSHING,44.88mm ID x 53.92mm OD x 38.1mm L

- rear pivot

1шт.

11

A136978

PIN

- rear pivot

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight, 1/8 inch PT (Without PTO)

1шт.

13

219-60

LUBE NIPPLE,1/8" - 27 Female NPTF

FITTING - straight, 1/8 inch female Pt (with PTO)

1шт.

14

221-117

FITTING

NIPPLE - fitting, 1/8 inch PT x 6 inch (with PTO)

1шт.

15

219-82

ELBOW,90 Degree, 1/8"-27

- 90 degree, 1/8 inch male x 1/8 inch female, (with PTO)

1шт.

16

A142162

PIN

- front pivot

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

18

A142147

WASHER

- thrust, front pivot

2шт.

19

A142150

SUPPORT

- front, trunnion

1шт.

20

113-480

BOLT,Locking, 1/2" - 13 x 1-1/2", Gr 5

- nylok hex, 1/2 NC x 1-1/4 inch

2шт.

22

L30674

WASHER

- pivot bolt

2шт.

23

131-22

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, 1 1/4"-12, GB

1шт.

24

195-59

WASHER,1 5/16" x 2 3/4" x .165"

- flat, 1-5/16 x 2-3/4 x 5/32 inch (33 x 70 x 4 mm)

1шт.

25

28-1452

BOLT,Hex, 7/8" - 14 x 3-1/4", Gr 8

- hex, 7/8 NF x 3-1/4 inch (Grade 8)

14шт.

26

A57033

WASHER

- support bolt

28шт.

27

131-187

LOCK NUT,7/8"-14, GB

NUT - hex lock, 7/8 inch NF

14шт.

28

A140434

BUSHING

SPACER - tube mounting

2шт.

29

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.
