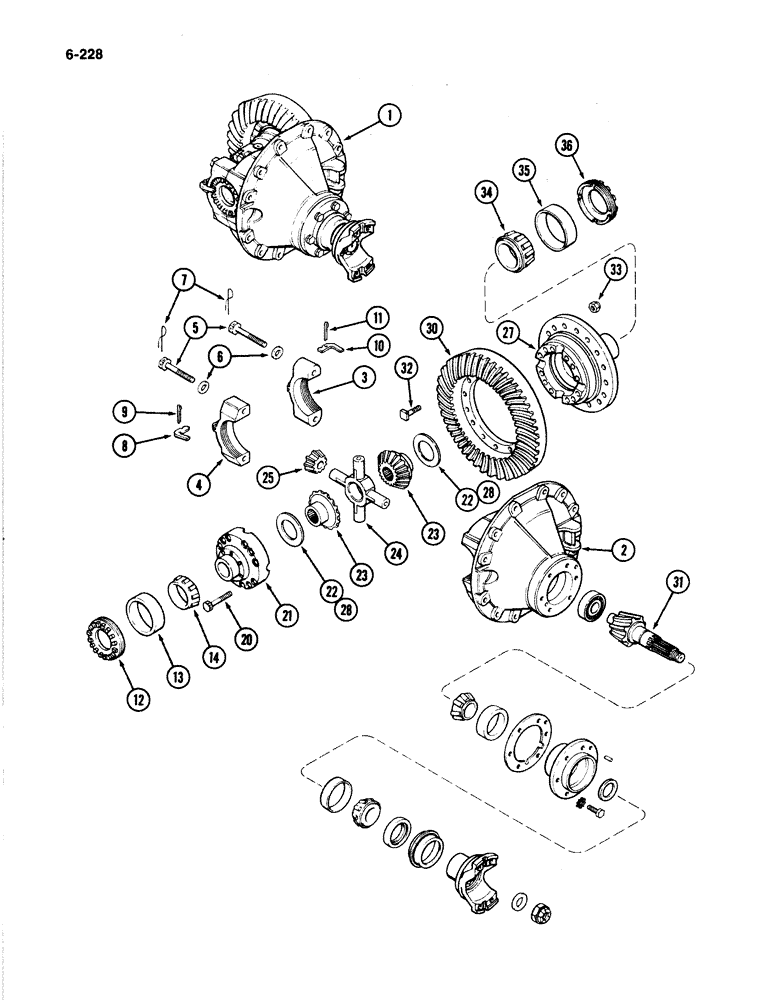

Запчасти Case IH 4894 (6-228) - REAR AXLE DIFFERENTIAL (06) - POWER TRAIN

1

A168852

DIFFERENTIAL

CARRIER ASSEMBLY - rear axle differential, Includes: Ref. 2 - 36 and 40 - 53 on Fig. 6-230

1шт.

A45681

CARRIER

ASSEMBLY - differential, Includes: Ref. 2 - 6

1шт.

Ref #1 - Can use A146465 by removing Yoke & Seal and adding new Yoke & Seal

1шт.

2

NSS

NOT SOLD SEPARAT

CARRIER - differential (Reference No. A45043)

1шт.

3

NSS

NOT SOLD SEPARAT

CAP - gear bearing, left (Reference No. A45045)

1шт.

4

NSS

NOT SOLD SEPARAT

CAP - gear bearing, right (Reference No. A45044)

1шт.

5

A45042

BOLT

- bearing cap

4шт.

6

A45041

WASHER

- cap bolt

4шт.

7

391-621

ELECTRICAL WIRE

WIRE - lock, 16 gauge x 13 inch (Order 391-636, 50 inch long)

4шт.

8

A45666

LOCK

- adjusting, bearing carrier

1шт.

9

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), (5 x 25 mm) 3/16" x 1"

1шт.

10

A44217

LOCK

- adjusting, bearing carrier

1шт.

11

132-148

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), (6 x 32 mm) 1/4" x 1 1/4"

1шт.

12

A45668

NUT

- adjusing, differential bearing

1шт.

13

A7892

BEARING, CUP

CUP - bearing, differential, 5-3/8 O.D. x 7/8 inch wide (137 x 22 mm)

1шт.

14

A7893

ROLLER BEARING,3.375" ID x 1.172"

CONE - bearing, differential, 3-3/8 ID x 1-1/8 inch wide (86 x 29 mm)

1шт.

A45683

DIFFERENTIAL

ASSEMBLY - axle, Includes: Ref. 20 - 27

1шт.

20

A45680

LOCK BOLT

BOLT - differential housing, 9/16 x 2-1/4 inch

12шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - plain half (Order A45683) (Reference No. A45675)

1шт.

22

A45604

WASHER

- thrust, side gear, 0.055 to 0.057 inch (1.397 to 1.448 mm)

1шт.

22

A45605

WASHER

- thrust, side gear, 0.058 to 0.060 inch (1.473 to 1.524 mm)

1шт.

22

S68331

WASHER

- thrust, side gear, 0.061 to 0.063 inch (1.549 to 1.600 mm)

1шт.

22

A45606

WASHER

- thrust, side gear, 0.064 to 0.066 inch (1.626 to 1.676 mm)

1шт.

22

A45607

WASHER

- thrust, side gear, 0.067 to 0.069 inch (1.702 to 1.753 mm)

1шт.

23

A45669

GEAR

- side

2шт.

24

S68333

U-JOINT SPIDER

SPIDER - differential

1шт.

25

A45673

GEAR

PINION - differential

4шт.

27

NSS

NOT SOLD SEPARAT

HOUSING - flange half (Order A45683) (Reference No. A45674)

1шт.

28

A156928

WASHER

- thrust, preloading, 0.070 to 0.072 inch (1.778 to 1.829 mm)

1шт.

28

A156929

WASHER

- thrust, preloading, 0.073 to 0.075 inch (1.854 to 1.905 mm)

1шт.

A45685

GEAR

SET - matched, drive gear and pinion, Includes: Ref. 30 and 31

1шт.

30

NSS

NOT SOLD SEPARAT

GEAR - drive, bevel (Order A45685) (Reference No. A45201)

1шт.

31

NSS

NOT SOLD SEPARAT

PINION - drive, bevel gear (Order A45685) (Reference No. A45022)

1шт.

32

A45670

SQUARE BOLT

- bevel, Serial Range: gear-housing

16шт.

33

131-270

NUT

- gear bolt

16шт.

34

A31243

ROLLER BEARING

CONE - bearing, differential, 2-7/8 ID x 1-27/64 inch wide (83 x 36 mm)

1шт.

35

A31242

CUP

- bearing, differential, 5 O.D. x 1-1/4 inch wide (127 x 32 mm)

1шт.

36

A44215

NUT

- adjusting, differential bearing

1шт.
