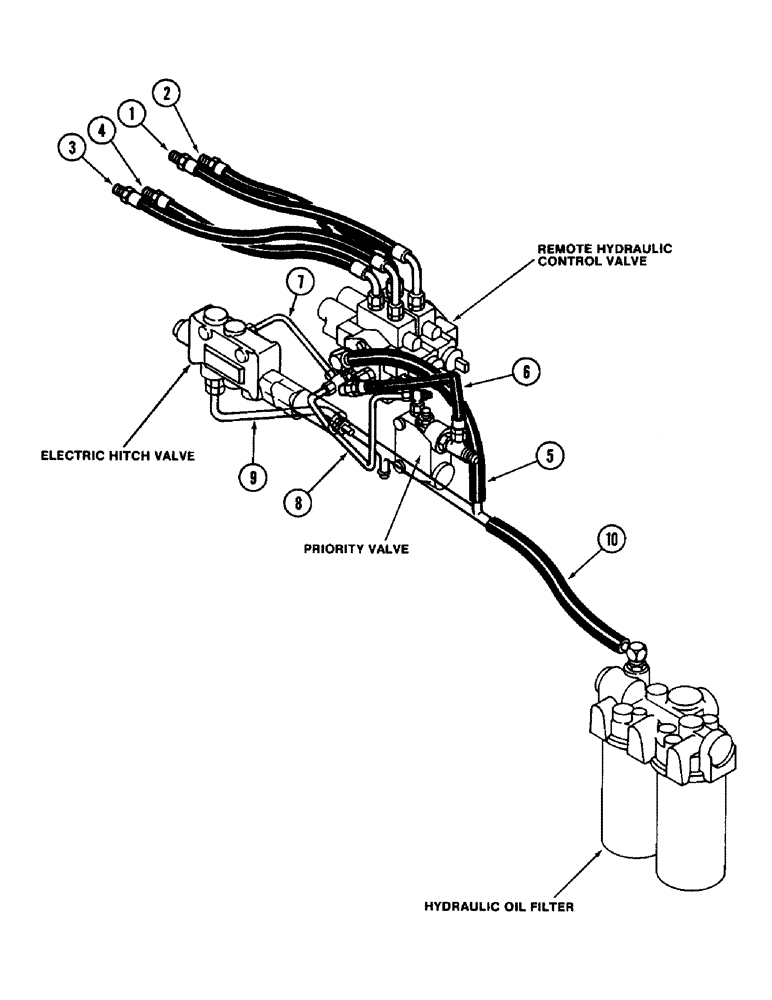

Запчасти Case IH 4894 (1-07) - PICTORIAL INDEX, REMOTE HYDRAULICS (00) - PICTORIAL INDEX
3
2
4
6
1
8
9
7
5
10
№
Артикул
Название
Примечание
Количество
1
Remote valve to coupling hose, Page 8-303
1шт.
2
Remote valve to coupling hose, Page 8-303
1шт.
3
Remote valve to coupling hose, Page 8-303
1шт.
4
Remote valve to coupling hose, Page 8-303
1шт.
5
Remote valve drain hose, Page 8-299, 301
1шт.
6
Remote to priority valve hose, Page 8-299, 301
1шт.
7
Hitch valve sensing tube, Page 8-299, 301
1шт.
8
Priority to hitch valve tube, Page 8-299, 301
1шт.
9
Hitch valve drain tube, Page 8-299, 301
1шт.
10
Drain tube to filter hose, Page 8-299, 301
1шт.
Выбрано товаров: 10
