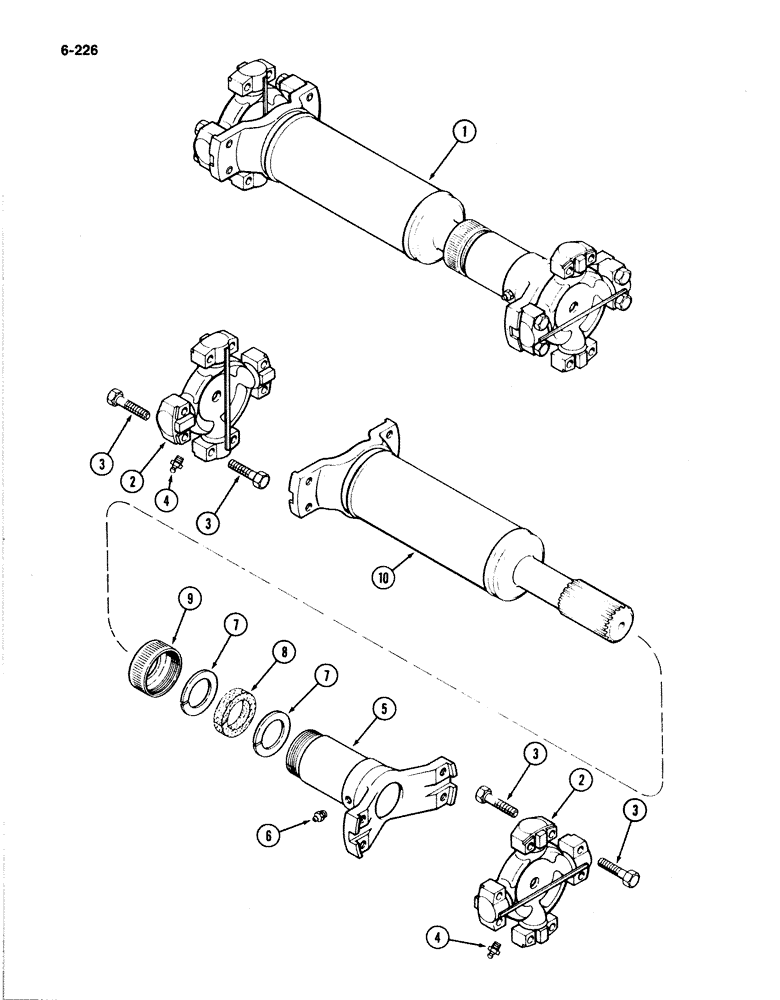

Запчасти Case IH 4894 (6-226) - REAR AXLE DRIVE SHAFT (06) - POWER TRAIN

1

A179164

SHAFT

ASSEMBLY - rear axle drive (Order components) (Replaces A168398), Includes: Ref. 2 - 10

1шт.

2

A52051

COUPLING

JOINT ASSEMBLY - drive shaft, Includes: Ref. 3 and 4

2шт.

3

28-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 8

- hex, 1/2 NF x 2-1/4 inch

8шт.

4

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - 45 degree lube, 1/8 inch PT

1шт.

5

A52049

PIVOT

SLIP YOKE ASSEMBLY - axle drive, Includes: Ref. 6 - 9

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

7

A45630

WASHER

- retainer, seal

2шт.

8

A45629

FELT SEAL

- felt

1шт.

9

L31204

CAP

- seal cover

1шт.

10

A52190

TUBE ASSY.

TUBE - drive yoke

1шт.
