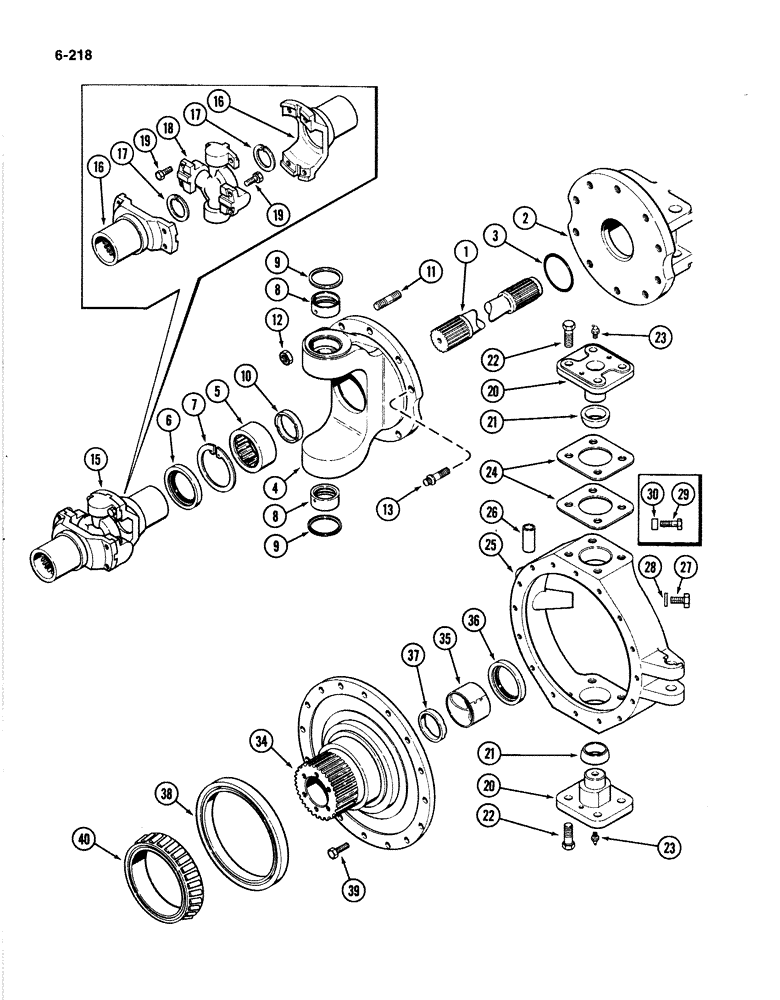

Запчасти Case IH 4894 (6-218) - REAR AXLE ASSEMBLY P.I.N. 8865170 AND AFTER, RIGHT TRUNNION SPINDLE AND SHAFT (06) - POWER TRAIN

1

A168799

SHAFT

- axle drive, 27-15/16 inch (710 mm) (short axle)

1шт.

2

REF

INSTRUCTION

HOUSING - axle and differential (See Figures 6-212 and 214)

1шт.

3

G102085

O-RING,0.139" Thk x 4.359" ID, -245, Cl 5, 75 Duro

- seal, trunnion to housing, 4-3/8 x 4-5/8 x 1/8 inch (111 x 118 x 3 mm)

1шт.

4

A157243

TRUNNION

ASSEMBLY - axle (Replaces A168808), Includes: Ref. 5 - 10

1шт.

5

A168826

NEEDLE BEARING,88.96 mm ID x 114.3 mm OD x 50.8 mm

BEARING ASSEMBLY - roller

1шт.

6

A168806

OIL SEAL

- oil

1шт.

7

K621431

RING, SNAP

RING - retainer

1шт.

8

A77282

CUP

RING - bearing, king pin, 3-3/16 inch O.D. (71 mm)

2шт.

9

A144015

RING

- seal

2шт.

10

A168801

WASHER

- thrust

1шт.

11

A77281

STUD

- trunnion to axle housing

2шт.

12

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- hex, 3/4 inch NC

2шт.

13

166-134

12 PT SCREW,Flg, 3/4" - 10 x 2", Gr 8

BOLT - 12 point hex socket, 3/4 NC x 2 inch (Grade 8)

8шт.

15

A168798

JOINT

UNIVERSAL JOINT ASSEMBLY - axle, Includes: Ref. 16 - 19

1шт.

16

A52048

YOKE

- slip, axle and sun gear shaft

2шт.

17

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , slip yoke 2.44", Int, #244

2шт.

18

A48460

JOINT

- universal

1шт.

19

A56245

BOLT,Hex, 1/2" x 2 3/8"

-, Serial Range: universal-yoke

4шт.

20

A152944

PIN

ASSEMBLY - king, Includes: Ref. 21

2шт.

21

A77283

RING,50.8mm ID x 80.96mm OD x 31.24mm W

- bearing, 2 ID x 2-7/8 inch O.D. (51 x 73 mm)

1шт.

22

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

8шт.

23

219-3

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight lube, 1/8 inch PT

4шт.

24

A153963

SHIM

- king pin, 0.005 inch (0.127 mm)

1шт.

24

A153964

SHIM

- king pin, 0.015 inch (0.381 mm)

1шт.

25

A152950

HOUSING

ASSEMBLY - spindle, Includes: Ref. 26

1шт.

26

A77287

BUSHING

- tie rod pivot

1шт.

27

113-709

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

1шт.

28

A150262

BUSHING

SPACER - stop, 25/32 x 1-1/4 x 23/32 inch (20 x 32 x 18 mm)

1шт.

29

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

1шт.

30

A153333

BUSHING

SPACER - stop, 25/32 x 1-1/4 x 1-3/64 inch (20 x 32 x 27 mm) (Used with 30.5 x 32 tires)

1шт.

34

A168807

SPINDLE

ASSEMBLY - wheel

1шт.

35

A144919

BUSHING

- universal joint, 3-3/4 O.D. x 2-1/4 inch wide (95 x 57 mm), Includes: Ref. 35 - 38

1шт.

36

A168806

OIL SEAL

- oil, inner

1шт.

37

A168801

WASHER

- thrust

1шт.

38

A140194

SEAL

- oil, outer, large

1шт.

39

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch (Grade 8)

16шт.

40

A140150

ROLLER BEARING,6.875" ID x 1.875"

CONE - wheel bearing, 6-7/8 inch ID x 1-7/8 inch wide (175 x 48 mm)

1шт.
