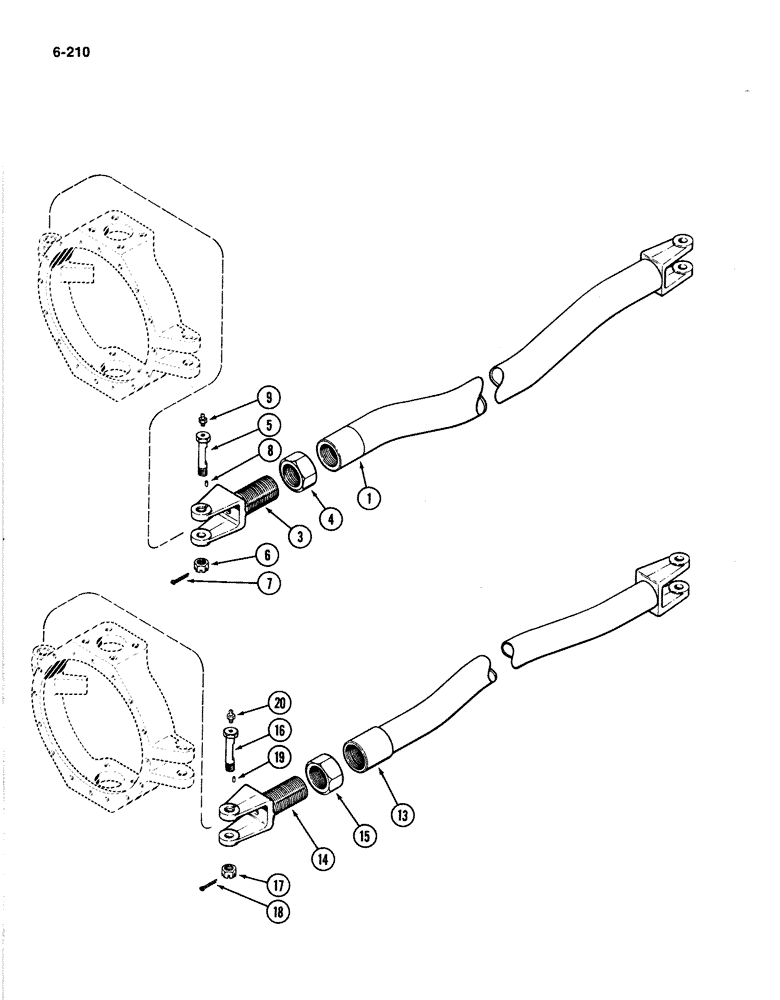

Запчасти Case IH 4894 (6-210) - FRONT AXLE TIE ROD (06) - POWER TRAIN

1

A146223

ROD

- tie, front axle

1шт.

3

A146564

YOKE

- end, tie rod

1шт.

4

25-1540

NUT,Jam, 2 1/2"-12, G5

- hex, 2-1/2-12 inch

1шт.

5

A77255

STEP BOLT

BOLT - yoke

2шт.

6

A13110

NUT

- yoke bolt

2шт.

7

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

8

138-324

LOCK PIN,3/16" x 7/8", Slotted

PIN, (5 x 22 mm) 3/16" x 7/8", Slotted

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight lube, 1/8 inch

2шт.

13

A146235

ROD

- tie, rear axle

1шт.

14

A146564

YOKE

- end, tie rod, rear axle

1шт.

15

25-1540

NUT,Jam, 2 1/2"-12, G5

- hex, 2-1/2-12 inch, rear axle tie rod

1шт.

16

A77255

STEP BOLT

BOLT - yoke, rear axle tie rod

2шт.

17

A13110

NUT

- yoke, rear axle tie rod

2шт.

18

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), , Rear axle tie rod 1/8" x 1 1/2"

2шт.

19

138-324

LOCK PIN,3/16" x 7/8", Slotted

PIN, (5 x 22 mm), Rear axle tie rod 3/16" x 7/8", Slotted

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight lube, 1/8 inch, rear axle tie rod

2шт.
