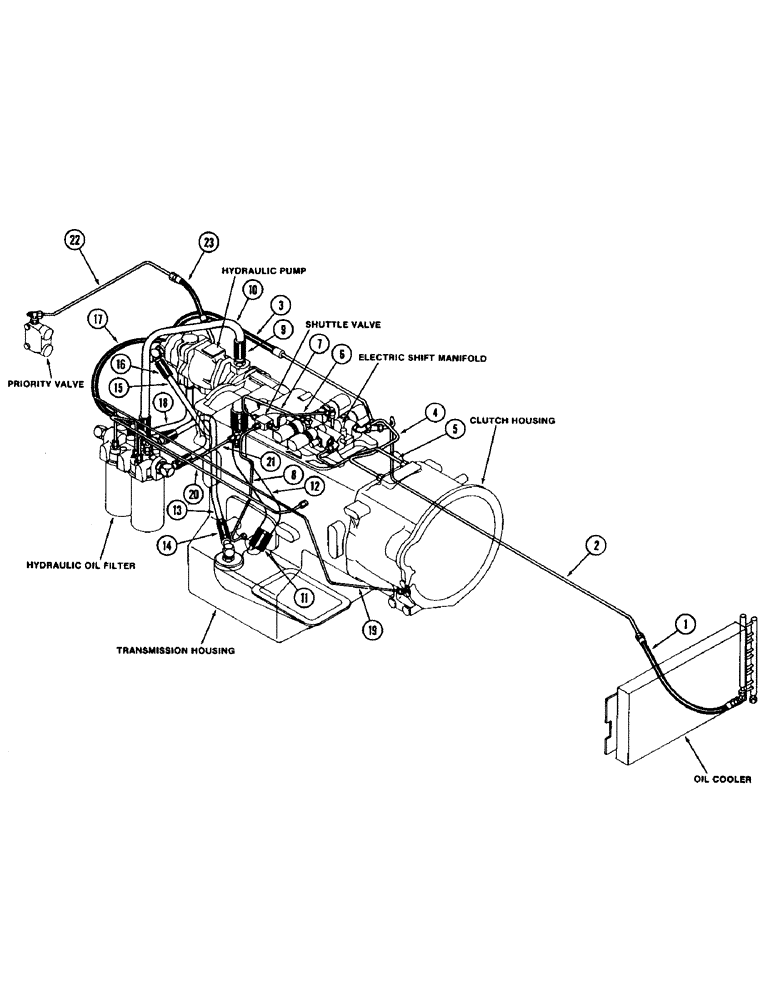

Запчасти Case IH 4894 (1-05) - PICTORIAL INDEX, TRACTOR MAIN HYDRAULICS (00) - PICTORIAL INDEX

1

Oil cooler return hose, Page 8-281

1шт.

2

Oil cooler return hose tube, Page 8-281

1шт.

3

Relief valve drain tube, Page 8-283

1шт.

4

(C4) Clutch to valve, Page 6-157

1шт.

5

(C1) Clutch to valve, Page 6-157

1шт.

6

(C3) Shuttle tube, Page 6-157

1шт.

7

(C2) Shuttle tube, Page 6-157

1шт.

8

Vale to shift housing tube, Page 6-157

1шт.

9

Outlet tube hose, Page 8-267

1шт.

10

Pump to filter outlet tube, Page 8-267

1шт.

11

Suction tube hose, Page 8-267

1шт.

12

Pump suction tube, Page 8-267

1шт.

13

Filter to pressure relief valve tube, Page 8-267

1шт.

14

Tube to relief valve hose, Page 8-267

1шт.

15

Filter to gear pump tube, Page 8-267

1шт.

16

Gear pump tube hose, Page 8-267

1шт.

17

Gear pump to filter hose, Page 8-267

1шт.

18

Filter to piston pump hose, Page 8-267

1шт.

19

(C1) Lubrication tube, Page 6-171

1шт.

20

(C3) Lubrication tube, Page 6-175

1шт.

21

Transmission shaft lubrication tube, Page 8-261

1шт.

22

Priority sensing tube, Page 5-127, 129

1шт.

23

Priority sensing hose, Page 5-127, 129

1шт.
