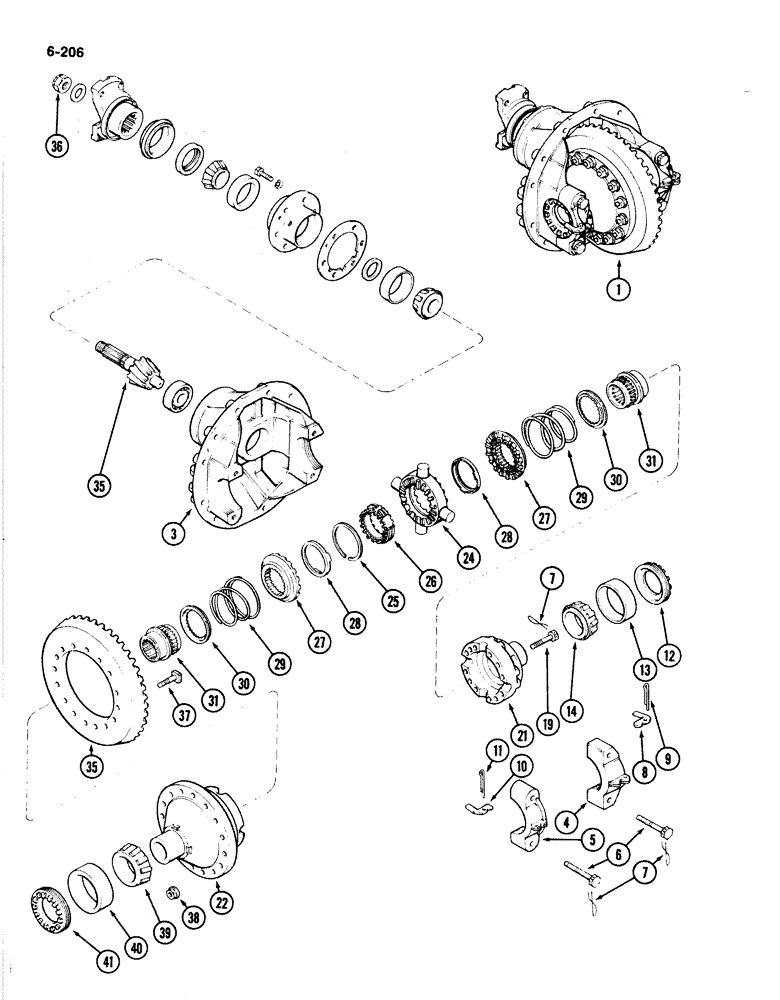

Запчасти Case IH 4894 (6-206) - FRONT AXLE ASSEMBLY, NO SPIN DIFFERENTAL (06) - POWER TRAIN

1

A157449

CARRIER

ASSEMBLY - front axle differential, Includes: Ref. 3 - 41 and 45 - 59 on fig. 6-208

1шт.

A44224

CARRIER

ASSEMBLY - differential, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

CARRIER - differential (Reference No. A45043)

1шт.

4

NSS

NOT SOLD SEPARAT

CAP - gear bearing, right (Reference No. A45044)

1шт.

5

NSS

NOT SOLD SEPARAT

CAP - gear bearing, left (Reference No. A45045)

1шт.

6

A45042

BOLT

- bearing cap

4шт.

A45041

WASHER

- cap bolt

4шт.

7

391-621

ELECTRICAL WIRE

WIRE - lock, 16 gauge x 13 inch (Order 391-636, 50 inch long)

4шт.

8

A45666

LOCK

- adjusting, bearing carrier

1шт.

9

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

10

A44217

LOCK

- adjusting, bearing carrier

1шт.

11

132-142

X

PIN - cotter, 1/4 x 1-1/4 inch

1шт.

12

A45668

NUT

- adjusting, differential bearing

1шт.

13

A7892

BEARING, CUP

CUP - bearing, differential

1шт.

14

A7893

ROLLER BEARING,3.375" ID x 1.172"

CONE - bearing, differential

1шт.

A157461

DIFFERENTIAL ASSY

DIFFERENTIAL ASSEMBLY - no spin axle, Includes: Ref. 19 - 31

1шт.

19

A45680

LOCK BOLT

BOLT - differential housing

12шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - plain half (Reference No. A44238)

1шт.

22

NSS

NOT SOLD SEPARAT

HOUSING - flange half (Reference No. A44237)

1шт.

A48391

CAM

SPIDER ASSEMBLY - no spin

1шт.

24

NSS

NOT SOLD SEPARAT

SPIDER - no spin

1шт.

25

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

26

NSS

NOT SOLD SEPARAT

CAM - center

1шт.

A48393

CLUTCH ASSEMBLY

- no spin

2шт.

27

NSS

NOT SOLD SEPARAT

CLUTCH - holdout

1шт.

28

NSS

NOT SOLD SEPARAT

RING - holdout

1шт.

29

S105726

SPRING

- clutch

2шт.

30

S105727

COLLAR

RETAINER - clutch spring

2шт.

31

A48392

GEAR

- side

2шт.

35

A47071

GEAR

AND PINION SET - drive (Matched set)

1шт.

36

A45679

NUT

- flange to pinion shaft

1шт.

37

A45670

SQUARE BOLT

- bevel, Serial Range: gear-housing

16шт.

38

131-270

NUT

- gear bolt

16шт.

39

A31243

ROLLER BEARING

CONE - bearing, differential

1шт.

40

A31242

CUP

- bearing, differential

1шт.

41

A44215

NUT

- adjusting, differential bearing

1шт.
