(4894) - CASE IH TRACTOR (1/85-12/87)
/
(06) - POWER TRAIN
/

(6-204) - FRONT AXLE ASSEMBLY, STANDARD DIFFERENTIAL

Запчасти Case IH 4894 (6-204) - FRONT AXLE ASSEMBLY, STANDARD DIFFERENTIAL (06) - POWER TRAIN

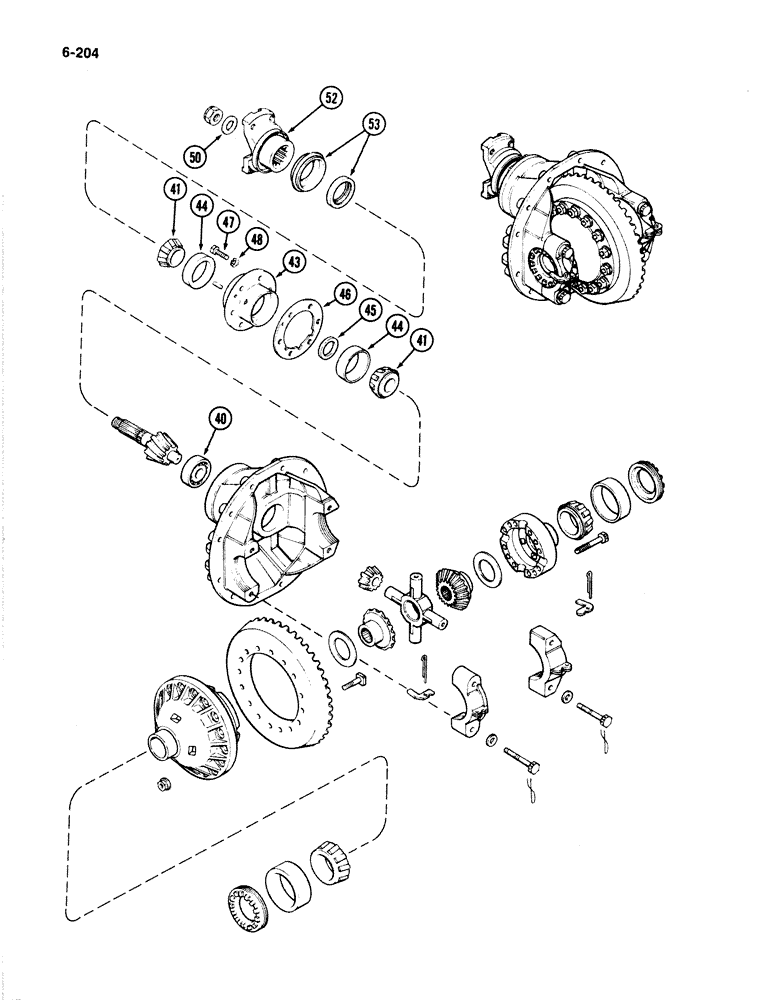

Схема запчастей Case IH 4894 - (6-204) - FRONT AXLE ASSEMBLY, STANDARD DIFFERENTIAL (06) - POWER TRAIN
46
40
47
53
44
48
52
43
50
44
41
45
41

№

Артикул

Название

Примечание

Количество

A146464

CARRIER

ASSEMBLY - front axle differential (Continued from figure 6-202), Includes: Ref. 40 - 53 and 2 - 36 on fig. 6-202

1шт.

40

L33062

ROLLER BEARING

BEARING - roller, differential pinion

1шт.

41

L30032

ROLLER BEARING

CONE - bearing, differential pinion

2шт.

A45671

CAGE ASSY.

CAGE ASSEMBLY - pinion, Includes: Ref. 43 and 44

1шт.

43

NSS

NOT SOLD SEPARAT

CAGE - pinion bearng (Order A45671) (Reference No. A45682)

1шт.

44

A9840

BEARING CUP

CUP - bearing, pinion

2шт.

45

A45059

BUSHING

SPACER - bearing, 0.634 inch (16.104 mm)

1шт.

45

A45061

BUSHING

SPACER - bearing, 0.635 inch (16.129 mm)

1шт.

45

A45062

BUSHING

SPACER - bearing, 0.636 inch (16.154 mm)

1шт.

45

A45063

BUSHING

SPACER - bearing, 0.637 inch (16.180 mm)

1шт.

45

A45064

BUSHING

SPACER - bearing, 0.638 inch (16.205 mm)

1шт.

45

A45065

BUSHING

SPACER - bearing, 0.639 inch (16.231 mm)

1шт.

45

A45066

BUSHING

SPACER - bearing, 0.640 inch (16.256 mm)

1шт.

45

A45067

BUSHING

SPACER - bearing, 0.641 inch (16.281 mm)

1шт.

45

A45068

BUSHING

SPACER - bearing, 0.642 inch (16.307 mm)

1шт.

45

A45069

BUSHING

SPACER - bearing, 0.643 inch (16.332 mm)

1шт.

45

A45070

BUSHING

SPACER - bearing, 0.644 inch (16.358 mm)

1шт.

45

A45071

BUSHING

SPACER - bearing, 0.645 inch (16.383 mm)

1шт.

45

A45073

BUSHING

SPACER - bearing, 0.647 inch (16.434 mm)

1шт.

46

S68370

SHIM,.003" Thk

Bearing cage (0.076 mm) .003" Thk

1шт.

46

S68371

SHIM,.005" Thk

Bearing cage (0.127 mm) .005" Thk

1шт.

46

S68362

SHIM,.0100" Thk

Bearing cage (0.254 mm) .0100" Thk

1шт.

46

S68373

SHIM,.020" Thk

Bearing cage (0.508 mm) .020" Thk

1шт.

46

S75901

SHIM,.030" Thk

Bearing cage (0.762 mm) .030" Thk

1шт.

47

A44212

BOLT

- bearing, Serial Range: cage-carrier

6шт.

48

193-62

LOCK WASHER,Int Tooth, 9/16"

WASHER - external lock, 9.16 inch

6шт.

50

S12170

WASHER

- flange nut

1шт.

52

A148230

YOKE

- axle drive shaft

1шт.

53

A48856

SEAL

ASSEMBLY - oil, pinion shaft

1шт.

Выбрано товаров: 29
