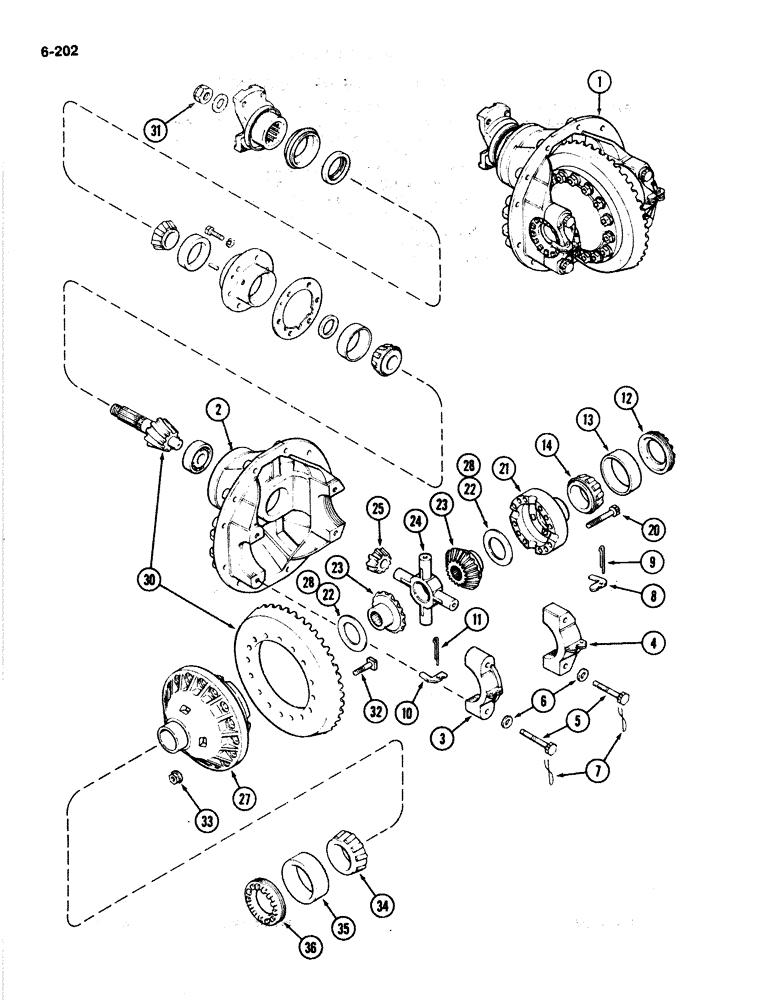

Запчасти Case IH 4894 (6-202) - FRONT AXLE ASSEMBLY, STANDARD DIFFERENTIAL (06) - POWER TRAIN

1

A146464

CARRIER

ASSEMBLY - front axle differential, Includes: Ref. 2 - 36 and 40 - 53 on fig. 6-204

1шт.

A45681

CARRIER

ASSEMBLY - differential, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

CARRIER - differential (Reference No. A45043)

1шт.

3

NSS

NOT SOLD SEPARAT

CAP - gear bearing, right (Reference No. A45044)

1шт.

4

NSS

NOT SOLD SEPARAT

CAP - gear bearing, left (Reference No A45045)

1шт.

5

A45042

BOLT

- bearing cap

4шт.

6

A45041

WASHER

- cap bolt

4шт.

7

391-621

ELECTRICAL WIRE

WIRE - lock, 16 gauge x 13 inch (Order 391-636, 50 inch long)

4шт.

8

A45666

LOCK

- adjusting, bearing carrier

1шт.

9

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

10

A44217

LOCK

- adjusting, bearing carrier

1шт.

11

132-148

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

12

A45668

NUT

- adjusting differential bearing

1шт.

13

A7892

BEARING, CUP

CUP - bearing, differential

1шт.

14

A7893

ROLLER BEARING,3.375" ID x 1.172"

CONE - bearing, differential

1шт.

A45683

DIFFERENTIAL

ASSEMBLY - axle, Includes: Ref. 20 - 27

1шт.

20

A45680

LOCK BOLT

BOLT - differential housing

12шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - plain half (Order A45683) (Reference No. A45675)

1шт.

22

A45604

WASHER

- thrust, side gear 0.055 to 0.057 inch (1.397 to 1/448 mm)

1шт.

22

A45605

WASHER

- thrust, side gear 0.058 to 0.060 inch (1/473 to 1/524 mm)

1шт.

22

S68331

WASHER

- thrust, side gear 0.061 to 0.063 inch (1/549 to 1.600 mm)

1шт.

22

A45606

WASHER

- thrust, side gear 0.064 to 0.066 inch (1/626 to 1/676 mm)

1шт.

22

A45607

WASHER

- thrust, side gear 0.067 to 0.069 inch (1.702 to 1/753 mm)

1шт.

23

A45669

GEAR

- side

2шт.

24

S68333

U-JOINT SPIDER

SPIDER - differential

1шт.

25

A45673

GEAR

PINION - differential

4шт.

27

NSS

NOT SOLD SEPARAT

HOUSING - flange half (Order A45683) (Reference No. A45674)

1шт.

28

A156928

WASHER

- thrust, preloading, 0.070 to 0.072 inch (1.778 to 1.829 mm)

1шт.

28

A156929

WASHER

- thrust, preloading, 0.073 to 0.075 inch (1/854 to 1/905 mm)

1шт.

30

A47071

GEAR

AND PINION SET - drive (Matched set)

1шт.

31

A45679

NUT

- flange to pinion shaft

1шт.

32

A45670

SQUARE BOLT

- bevel, Serial Range: gear-housing

16шт.

33

131-270

NUT

- gear bolt

16шт.

34

A31243

ROLLER BEARING

CONE - bearing, differential

1шт.

35

A31242

CUP

- bearing, differential

1шт.

36

A44215

NUT

- adjusting, differential bearing

1шт.
