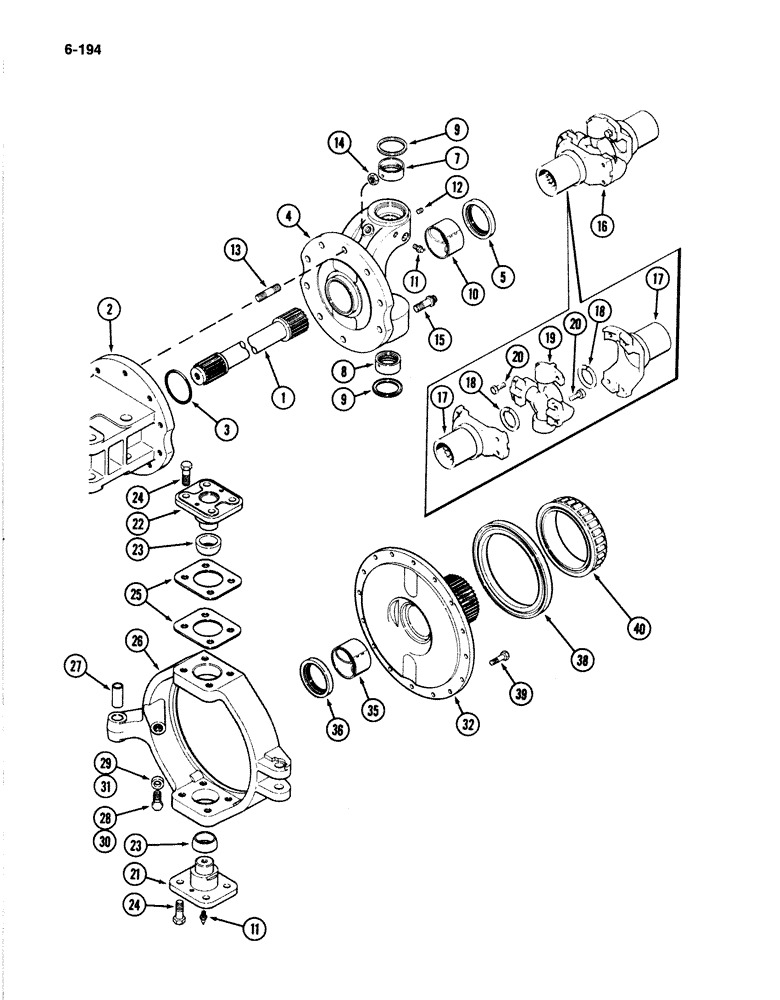

Запчасти Case IH 4894 (6-194) - FRONT AXLE ASSEMBLY PRIOR TO P.I.N. 8865170, LH TRUNNION, SPINDLE AND SHAFT (06) - POWER TRAIN

1

A142967

SHAFT

- axle drive 27-15/16 inch (710 mm)

1шт.

2

REF

INSTRUCTION

HOUSING - axle and differential, front and rear (See Figures 6-182 and 6-188)

1шт.

3

G102085

O-RING,0.139" Thk x 4.359" ID, -245, Cl 5, 75 Duro

- seal, trunnion to housing, 4-3/8 x 4-5/8 x 1/8 inch (110 x 118 x 3 mm)

1шт.

4

A152942

TRUNNION

ASSEMBLY - axle, Includes: Ref. 5 - 10

1шт.

5

A168806

OIL SEAL

- oil, inner

1шт.

If equipped with a two seal arrangement, order only one A168806 seal.

1шт.

7

A153013

CUP

- bearing, king pin (Lower) (With lubrication hole)

1шт.

8

A77282

CUP

- bearing, king pin, (Upper)

1шт.

9

A144015

RING

- seal, bearing cup

2шт.

10

A179705

BUSHING,88.95mm ID x 95.41mm OD x 57.15mm L

BUSHING - axle universal joint

1шт.

11

219-41

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 65º, 1/8" NPT x 1.20" lg

3шт.

12

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

1шт.

13

A77281

STUD

- trunnion to axle housing

2шт.

14

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- hex, 3/4 inch NC (Heavy)

2шт.

15

166-134

12 PT SCREW,Flg, 3/4" - 10 x 2", Gr 8

BOLT - 12 point hex socket, 3/4 NC x 2 inch

8шт.

16

A142964

JOINT

UNIVERSAL JOINT ASSEMBLY - axle (Order components), Includes: Ref. 17 - 20

1шт.

17

A45000

YOKE

- slip, axle shaft

2шт.

18

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , yoke 2.44", Int, #244

2шт.

19

A48460

JOINT

- universal

1шт.

20

A56245

BOLT,Hex, 1/2" x 2 3/8"

-, Serial Range: universal-yoke

4шт.

21

A152944

PIN

ASSEMBLY - king, lower (Includes Ref. 23)

1шт.

22

A152936

PIN

ASSEMBLY - king, upper, Includes: Ref. 23

1шт.

23

A77283

RING,50.8mm ID x 80.96mm OD x 31.24mm W

- bearing, 2 ID x 2-7/8 inch O.D. (51 x 73)

1шт.

24

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

8шт.

25

A153963

SHIM

- king pin, 0.005 inch (0.127 mm)

1шт.

25

A153964

SHIM

- king pin, 0.015 inch (0.381 mm)

1шт.

26

A152946

HOUSING

ASSEMBLY - spindle, front axle, Includes: Ref. 27

1шт.

27

A77287

BUSHING

- tie rod pivot

1шт.

28

113-709

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

1шт.

29

A150261

BUSHING

SPACER - stop, 25/32 x 1-1/4 x 7/32 inch (20 x 32 x 6 mm)

1шт.

30

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

(30.5 x 32 tire) Hex, 3/4"-10 x 2", G5

1шт.

31

A150262

BUSHING

SPACER - stop, 25/32 x 1-1/4 x 23/32 (20 x 32 x 18 mm) (With 30.5 x 32 tire)

1шт.

32

A144620

SPINDLE

ASSEMBLY - wheel, Includes: Ref. 35, 36 and 38

2шт.

35

A144919

BUSHING

- universal joint, 3-3/4 O.D. x 2-1/4 inch wide (95 x 57 mm)

1шт.

36

A168806

OIL SEAL

- oil, inner

1шт.

If equipped with a two seal arrangement, order only one A168806 seal.

1шт.

38

A140194

SEAL

- oil

1шт.

39

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch (Grade 8)

16шт.

40

A140150

ROLLER BEARING,6.875" ID x 1.875"

CONE - bearing, wheel, 6-7/8 ID x 1-7/8 inch wide (175 x 48 mm)

1шт.
