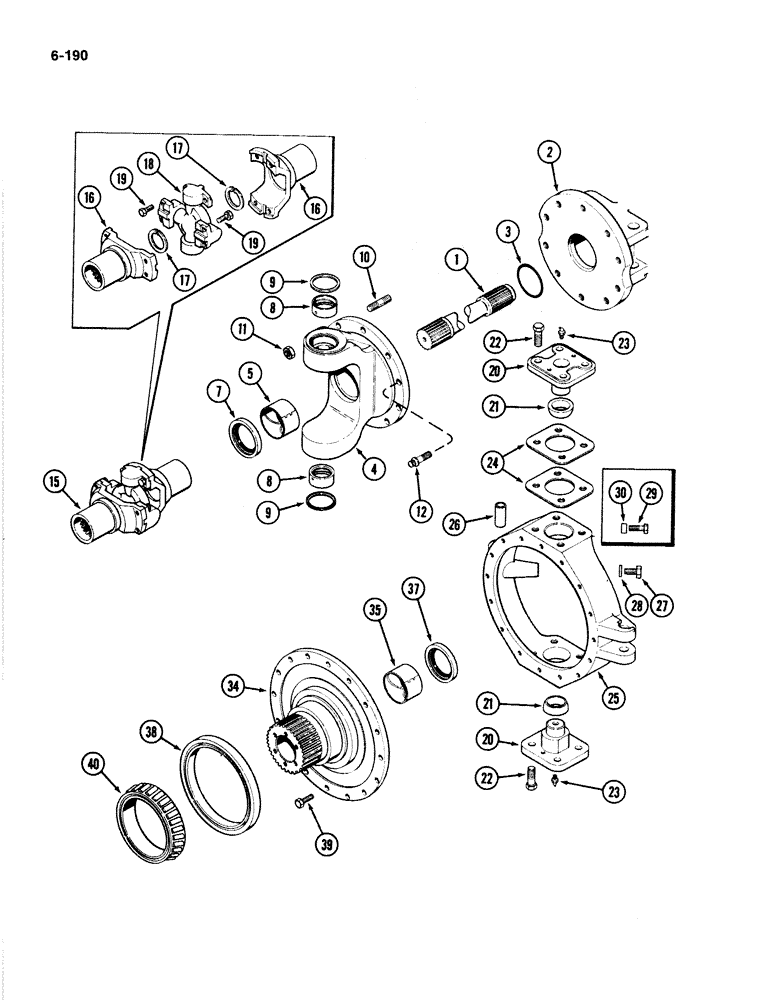

Запчасти Case IH 4894 (6-190) - FRONT AXLE ASSEMBLY PRIOR TO P.I.N. 8865170, RH TRUNNION, SPINDLE AND SHAFT (06) - POWER TRAIN

1

A142966

SHAFT

- axle drive, 30-15/16 inch (786 mm)

1шт.

2

REF

INSTRUCTION

HOUSING - axle and differential (See Figures 6-180 and 6-186)

1шт.

3

G102805

O-RING - seal, Serial Range: trunnion-housing

1шт.

4

A144900

BEARING ASSY

TRUNNION ASSEMBLY - axle, Includes: Ref. 5 - 9

1шт.

5

A179705

BUSHING,88.95mm ID x 95.41mm OD x 57.15mm L

BUSHING - axle, universl joint

1шт.

7

A168806

OIL SEAL

- oil, inner

1шт.

If equipped with a two seal arrangement, order only one A168806 seal.

1шт.

8

A77282

CUP

RING - bearing, king pin, 3-3/16 O.D. x 59/64 inch wide (79 x 23 mm)

1шт.

9

A144015

RING

- seal

1шт.

10

A77281

STUD

- trunnion to axle housing

2шт.

11

25-1612

NUT,3/4"-10, G5, Hvy

- hex, 3/4 inch NC

2шт.

12

166-134

12 PT SCREW,Flg, 3/4" - 10 x 2", Gr 8

BOLT - 12 point hex socket, 3/4 NC x 2 inch (Grade 8)

8шт.

15

A142964

JOINT

UNIVERSAL JOINT ASSEMBLY - axle (Order components), Includes: Ref. 16 - 19

1шт.

16

A45000

YOKE

- slip, axle and sun gear shaft

2шт.

17

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , slip yoke 2.44", Int, #244

2шт.

18

A48460

JOINT

- universal

1шт.

19

A56245

BOLT,Hex, 1/2" x 2 3/8"

-, Serial Range: universal-yoke

4шт.

20

A152944

PIN

ASSEMBLY - king, Includes: Ref. 21

2шт.

21

A77283

RING,50.8mm ID x 80.96mm OD x 31.24mm W

- bearing, 2 ID x 2-7/8 inch O.D. (51 x 73 mm)

1шт.

22

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

8шт.

23

219-3

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight lube, 1/8 inch PT

4шт.

24

A153963

SHIM

- king pin, 0.005 inch (0.127 mm)

1шт.

24

A153964

SHIM

- king pin, 0.015 inch (0.381 mm)

1шт.

Ref #24B - A182552 Shim - King Pin 0.002 added to insure correct adjustment of pins

1шт.

25

A152948

HOUSING

ASSEMBLY - spindle, Includes: Ref. 26

1шт.

26

A77287

BUSHING

- tie rod pivot

1шт.

27

113-709

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

1шт.

28

A150261

BUSHING

SPACER - stop, 25/32 x 1-1/4 x 7/32 inch (20 x 32 x 6 mm)

1шт.

29

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

(Front axle with 30.5 x 32 tire) Hex, 3/4"-10 x 2", G5

1шт.

30

A150262

BUSHING

SPACER - stop, 25/32 x 1-1/4 x 23/32 (20 x 32 x 18 mm) (Front axle with 30.5 x 32 tire)

1шт.

34

A144620

SPINDLE

ASSEMBLY - wheel, Includes: Ref. 35 - 37

1шт.

35

A144919

BUSHING

- universal joint

1шт.

37

A168806

OIL SEAL

- oil, inner

1шт.

If equipped with a two seal arrangement, order only one A168806 seal.

1шт.

38

A140194

SEAL

- oil, outer

1шт.

39

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch (Grade 8)

16шт.

40

A140150

ROLLER BEARING,6.875" ID x 1.875"

CONE - wheel bearing

1шт.
