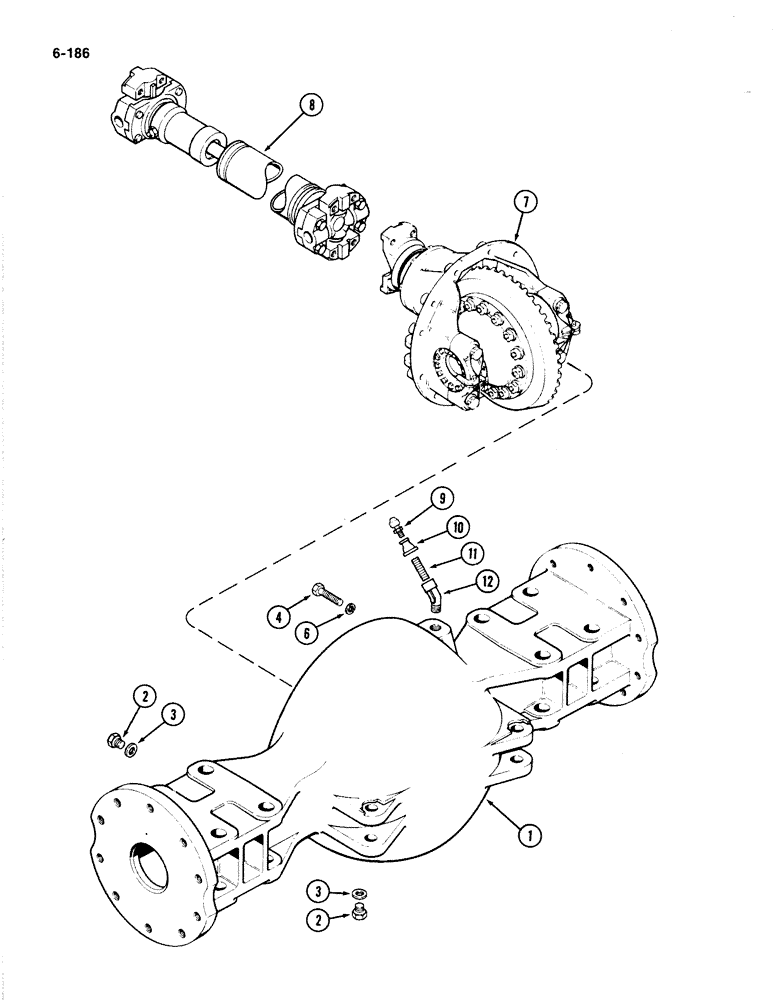

Запчасти Case IH 4894 (6-186) - FRONT AXLE AND DIFFERENTIAL HOUSING PRIOR TO P.I.N. 8865170 (06) - POWER TRAIN

1

A159040

HOUSING

- axle

1шт.

2

A140222

PLUG

- drain, axle housing

2шт.

3

A51759

GASKET

- drain plug

2шт.

4

26-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- hex, 5/8 NC x 1-3/4 inch (Grade 8)

12шт.

6

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

7

REF

INSTRUCTION

CARRIER ASSEMBLY - no spin differential (See Figure 6-206)

1шт.

8

REF

INSTRUCTION

SHAFT ASSEMBLY - drive, front axle (See figure 6-200)

1шт.

9

A12928

BREATHER

- differential

1шт.

10

221-347

COUPLING,Pipe, 1 /2" x 1/8" NPT

- reducer, 1/2 x 1/8 inch PT

1шт.

11

221-190

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - 1/2 PT x 2 inch

1шт.

12

221-404

FITTING

ELBOW - 45 degree street, 1/2 inch PT

1шт.

A157459

AXLE ASSEMBLY - front, complete (Order A168900)

1шт.
