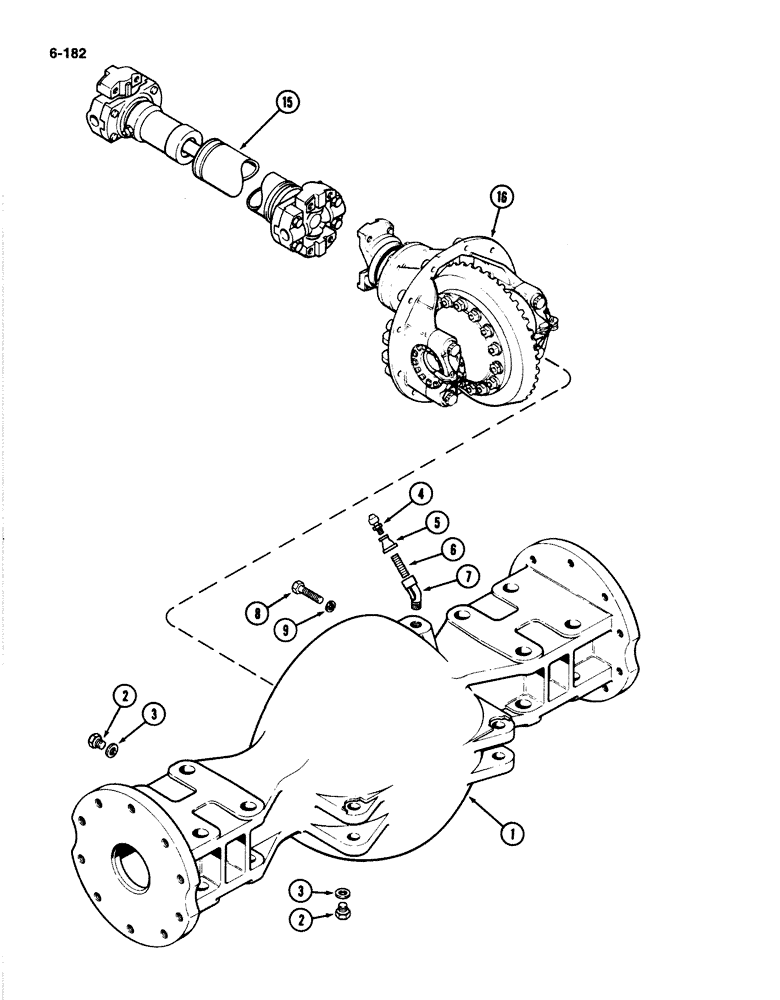

Запчасти Case IH 4894 (6-182) - FRONT AXLE AND DIFFERENTIAL HOUSING PRIOR TO P.I.N. 8865170 (06) - POWER TRAIN

1

A159040

HOUSING

- axle and differential, front

1шт.

2

A140222

PLUG

- drain

2шт.

3

A51759

GASKET

- drain plug

2шт.

4

A12928

BREATHER

- oil, axle housing

1шт.

5

221-347

COUPLING,Pipe, 1 /2" x 1/8" NPT

- reducer, 1/2 x 1/8 inch PT

1шт.

6

221-1190

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - pipe, 1/2 PT x 2 inch long

1шт.

7

221-1404

ELBOW,45 Degree, 1/2"-14, NPT

- 45 degree street, 1/2 inch PT

1шт.

8

26-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- hex, 5/8 NC x 1-3/4 inch (Grade)

12шт.

9

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

15

REF

INSTRUCTION

SHAFT ASSEMBLY - drive, front axle (See Figure 6-200)

1шт.

16

REF

INSTRUCTION

CARRIER ASSEMBLY - standard differential (See Figure 6-202)

1шт.

A153161

AXLE ASSEMBLY - front, complete (Order A168897)

1шт.
