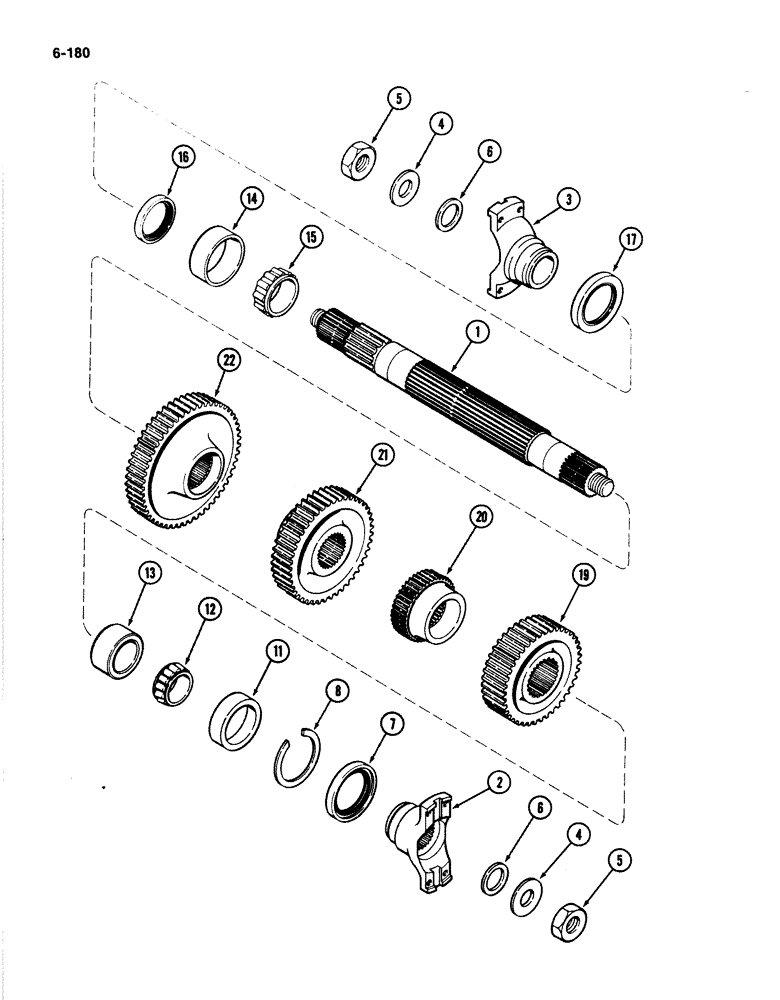

Запчасти Case IH 4894 (6-180) - TRANSMISSION OUTPUT SHAFT (06) - POWER TRAIN

1

A150734

SHAFT

- output, 33-1/16 inch (840 mm) long

1шт.

2

A148228

YOKE

- drive shaft, front, 40 splines

1шт.

3

A168400

YOKE

- drive shaft, rear, 40 splines

1шт.

4

A150735

WASHER

- retainer, yoke

2шт.

5

131-586

LOCK NUT,1 1/2"-12

NUT - hex lock, 1-1/2-12 inch

2шт.

6

A146565

GASKET

-, Serial Range: yoke-shaft

2шт.

7

A155226

OIL SEAL

- oil, output shaft, front

1шт.

8

A136780

RING

- snap, front bearing

1шт.

11

A137106

CUP

- front bearing

1шт.

12

136003

DECAL KIT

CONE - front bearing

1шт.

13

A136664

BUSHING

SPACER - front bearing

1шт.

14

A50324

BEARING CUP

CUP - rear bearing

1шт.

15

A77279

ROLLER BEARING,3" ID x 1.5625"

CONE - rear bearing

1шт.

16

A136659

OIL SEAL

- oil, brake housing rear inner

1шт.

17

A136660

OIL SEAL

- oil, brake cover

1шт.

19

A146560

GEAR

- driven, third (55 teeth)

1шт.

20

A155295

GEAR

- driven, fourth (39 teeth)

1шт.

21

A146562

GEAR

- driven, second (56 teeth)

1шт.

22

A146563

GEAR

- driven, first (65 teeth)

1шт.
