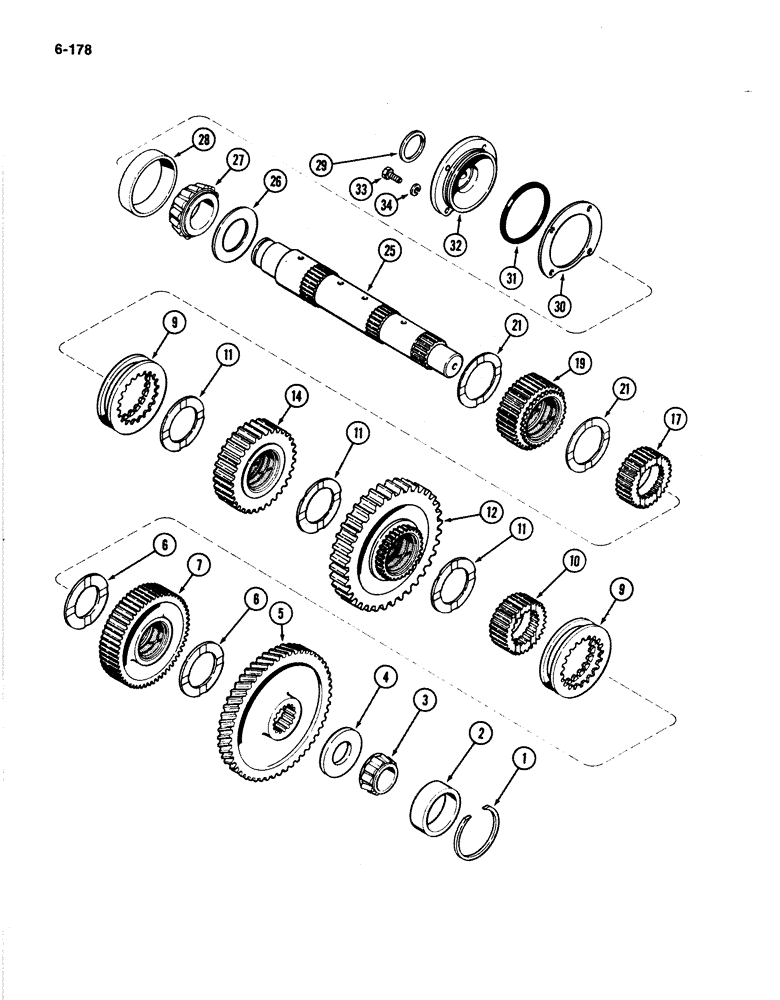

Запчасти Case IH 4894 (6-178) - TRANSMISSION DRIVEN SHAFT AND GEARS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A138737
RING
- snap, front bearing
1шт.
2
A138739
CUP
- front bearing
1шт.
3
A75219
ROLLER BEARING,1.9685" ID x 1.4173"
CONE - front bearing
1шт.
4
A136675
BUSHING
SPACER - front bearing
1шт.
5
A152458
GEAR
- drive, drop (70 teeth)
1шт.
6
A155525
WASHER
- thrust, third driver gear, 2-3/4 inch (70 mm) ID (Bronze)
2шт.
7
157445
GEAR ASSEMBLY - third driver (56 teeth) (With bushing)
1шт.
9
A157443
COLLAR
- sliding, driver gears
2шт.
10
A136682
HUB
- sliding collar, third and fourth driver gears
1шт.
11
A146831
WASHER
- thrust, 3-1/32 inch (77 mm) ID (Order A155526)
3шт.
12
A157442
GEAR
ASSEMBLY - fourth driver (88 teeth)
1шт.
14
A157440
GEAR
ASSEMBLY - second driver (40 and 36 teeth) (With bushing)
1шт.
17
A136681
HUB
- sliding collar, first and second driver gears
1шт.
19
A157438
GEAR
ASSEMBLY - first drive (31 and 36 teeth) (With bushing)
1шт.
21
A155527
WASHER
- thrust, 0.043 inch thick (1.09 mm) (Bronze) (Replaces 155527)
1шт.
#21a, 155527 washer s/b A155527, please see s/b AG-61-86 mod pro# mabg before installing. Ref: NA 6 1986 Bulletin.
1шт.
21
A155529
WASHER
- thrust, 0.053 inch thick (1.35 mm) (Bronze)
1шт.
21
A15531
X
WASHER - thrust, 0.063 inch thick (1.60 mm) (Bronze)
1шт.
21
A155533
WASHER
- thrust, 0.073 inch thick (1.85 mm) (Bronze)
1шт.
25
A146552
SHAFT
- sliding gear, driven
1шт.
26
A136670
BUSHING
SPACER - rear bearing
1шт.
27
A136003
BEARING
CONE - rear bearing
1шт.
28
A137106
CUP
- rear bearing
1шт.
29
A136680
RING
- seal, shaft rear
1шт.
30
A150777
SHIM
- end cap, 0.003 inch (0.076 mm) thick
1шт.
30
A150778
SHIM
- end cap, 0.005 inch (0.127 mm) thick
1шт.
30
A150779
SHIM
- end cap, 0.007 inch (0.178 mm) thick
1шт.
31
A23316
O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro
- end cap
1шт.
32
A136671
CAP
- end
1шт.
33
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
4шт.
34
92-6
LOCK WASHER,3/8"
4шт.
Выбрано товаров: 31
