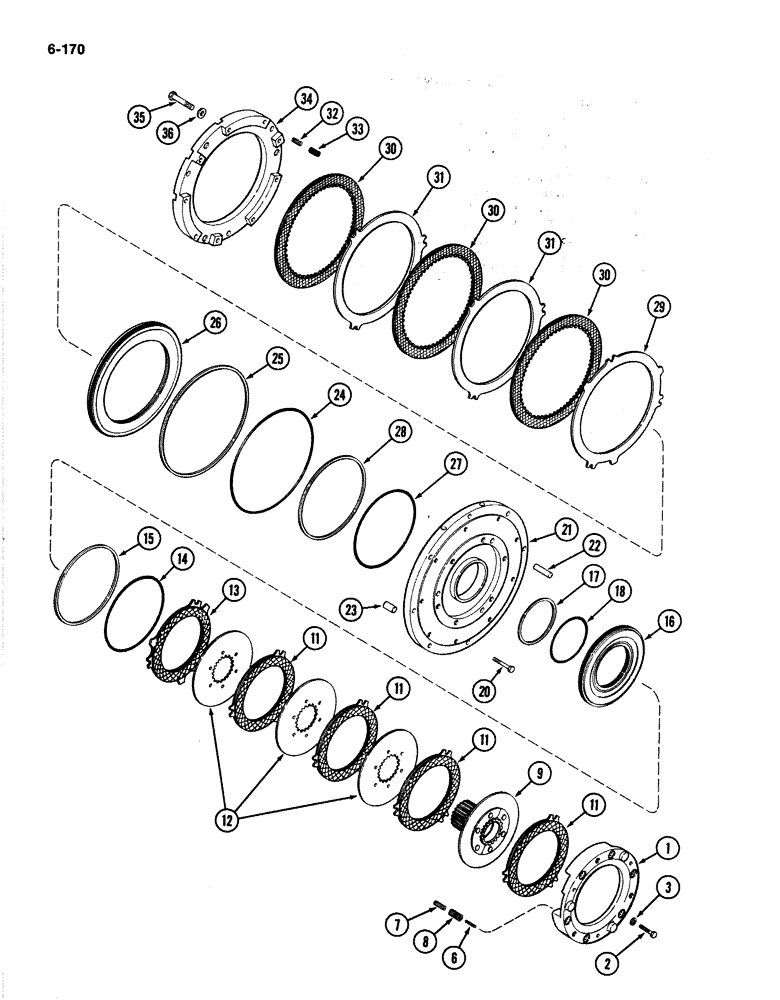

Запчасти Case IH 4894 (6-170) - TRANSMISSION (C1) AND (C4) CLUTCH (06) - POWER TRAIN

1

A146529

PLATE

- reaction, (C1) clutch

1шт.

2

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch (Grade 8)

6шт.

3

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened

7шт.

6

138-157

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, (8 x 38 mm) 5/16" x 1 1/2", Slotted

3шт.

7

A136803

SPRING

- return, (C1) clutch, 1/2 inch (13 mm) O.D. x 1-7/16 inch (37 mm) free length

3шт.

8

A136802

SPRING

- return, (C1) clutch, 23/32 inch (18 mm) O.D. x 1-1/2 inch (38 mm) free length

3шт.

9

A151744

GEAR

ASSEMBLY - reaction, (C1) clutch

1шт.

11

A168483

PLATE

- friction (Without tab) (C1) clutch (Replaces A142360)

4шт.

12

A152112

PLATE

- steel, (C1) clutch

3шт.

13

A168484

PLATE

- friction (With tab), (C1) clutch (Replaces A142361)

1шт.

14

A140753

RING - seal, external (See Kit, Figure 6-174)

1шт.

15

A146682

RING

- seal, external (See Kit, Figure 6-174)

1шт.

16

A146670

PISTON

- (C1) clutch

1шт.

17

A146683

RING

- seal, internal (See Kit, Figure 6-174)

1шт.

18

A150754

O-RING,4.718" ID x 0.107"

RING - seal, internal (See Kit, Figure 6-174)

1шт.

20

26-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch (Grade 8)

8шт.

21

A148971

CARRIER

- pistons, (C1) and (C4) clutch

1шт.

22

A77275

PIN

- reaction, 1/2 x 2-3/8 inch (13 x 60 mm)

3шт.

23

A65555

PIN

- reaction, 1/2 x 1-19/32 inch (13 x 40 mm) (Replaces A146611)

3шт.

24

A150751

O-RING,12.09" ID x 0.107"

RING - seal, external (See Kit, Figure 6-174)

1шт.

25

A146680

RING

- seal, external (See Kit, Figure 6-174)

1шт.

26

A146671

PISTON

- (C4) clutch

1шт.

27

A150752

O-RING,9.206" ID x 0.107" OD

RING - seal, internal (See Kit, Figure 6-174)

1шт.

28

A146681

SEAL

- seal, internal (See Kit, Figure 6-174)

1шт.

29

A58056

PLATE

- steel (With tabs), (C4) clutch

1шт.

30

A67128

PLATE

- friction, (C4) clutch

3шт.

31

A75105

PLATE

- steel (Without tabs), (C4) clutch

2шт.

32

A142613

SPRING

- return, (C4) clutch, 23/64 inch (18 mm) O.D. x 1-1/4 inch (29 mm) free length (Replaces A62607)

3шт.

33

A62606

SPRING

- return, (C4) clutch, 9/16 inch (14 mm) O.D. x 1-1/8 inch (29 mm) free length

3шт.

34

A156214

DRIVEN PLATE

PLATE - reaction, (C4) clutch (Replaces A146530)

1шт.

35

26-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

- hex, 3/8 NC x 2-3/4 inch (Grade 8)

9шт.

36

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened

9шт.
