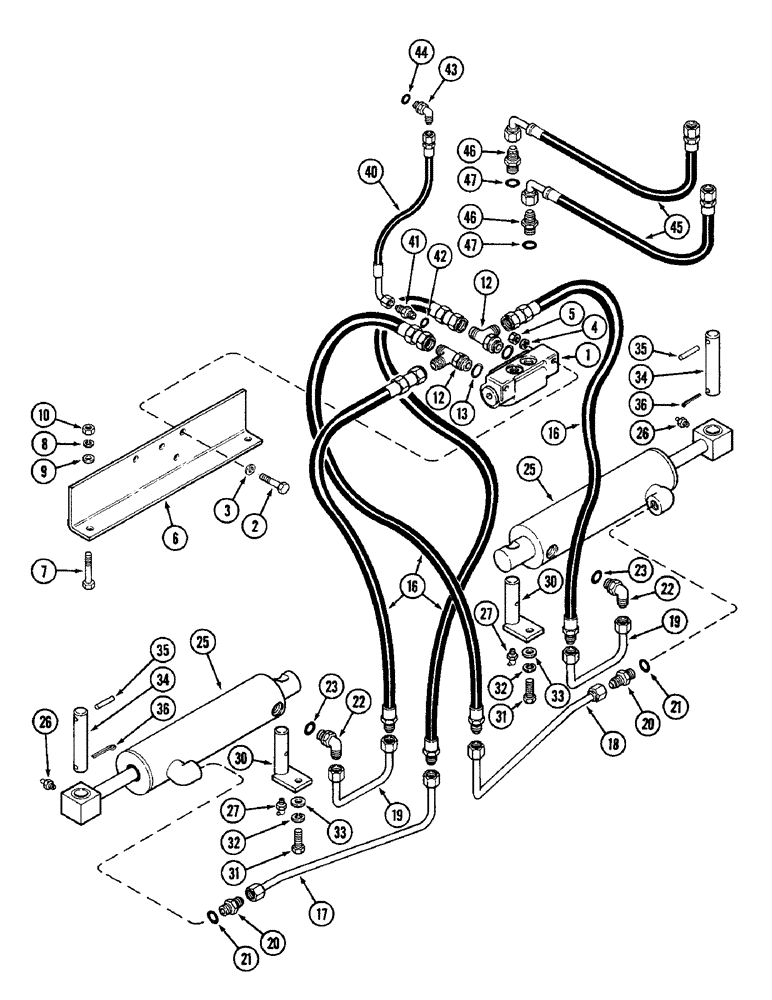

Запчасти Case IH 4890 (5-146) - REAR STEERING HYDRAULICS, CHECK VALVE AND CYLINDERS, P.I.N. 8858086 & AFTER (05) - STEERING
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE ASSEMBLY - check (See Figure 5-162)
1шт.
2
13-540
BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5
2шт.
3
95-5
WASHER,3/8" x 7/8" x .083"
- 3/8 x 7/8 x 5/64" (9.52 x 22.22 x 1.98 MM)
2шт.
4
92-5
LOCK WASHER,5/16"
2шт.
5
9635082
NUT,5/16" - 18, Gr 5
- 5/16" NC hex.
2шт.
6
A161785
ANGLE
- mounting, check valve
1шт.
7
13-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
- 3/8 x 2-1/2" NC hex. (Grade 5)
2шт.
8
92-6
LOCK WASHER,3/8"
2шт.
9
95-6
WASHER,3/8"
- 7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 mm)
2шт.
10
25-106
NUT,3/8"-16, G5
- 3/8" NC hex.
2шт.
12
218-5242
TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
CONNECTOR ASSEMBLY - branch, Includes: Ref. 13
2шт.
16
A161688
HOSE
- valve to cylinder tube (Order A162278)
4шт.
17
A77058
TUBE
- hose to RH steering cylinder
1шт.
18
A77059
TUBE
- hose to LH steering cylinder
1шт.
19
A77057
TUBE
- valve, Serial Range: hose-cylinder
2шт.
20
218-5059
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring
CONNECTOR ASSEMBLY - 1/2" tube x 3/4"-16, Incl. Ref 21
2шт.
22
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
ASSEMBLY - 90 degree, 1/2" tube x 3/4"-16, Includes: Ref. 23
2шт.
25
REF
INSTRUCTION
CYLINDER ASSEMBLY - rear steering (See Figure 5-156)
2шт.
26
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg
2шт.
27
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg
2шт.
30
A76545
PIN
- inner, steering cylinder
2шт.
31
113-417
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
2шт.
32
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
33
195-106
WASHER,1/2"
- 9/16 x 1-3/8 x 7/64" (14.29 x 34.92 x 2.78 MM)
2шт.
34
A160382
PIN,25.4mm OD x 132.08mm L
- outer, steering cylinder
2шт.
35
135-764
GROOVED PIN,1/4" x 1 1/2", Type E
PIN - groove, 1/4 x 1/2" (6.35 x 12.7 MM)
2шт.
36
132-307
COTTER PIN,1/4" x 1 3/4"
PIN, Split (Cotter), (6.35 x 44.45 MM) 1/4" x 1 3/4"
2шт.
40
A161535
TUBE
HOSE - priority valve to check valve
1шт.
41
218-5057
HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB
CONNECTOR ASSEMBLY - straight, 3/8" tube x 9/16"-18 (At check valve), Incl. Ref. 42
1шт.
42
218-5005
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk (11.89 x 15.88 x 1.98 mm)
1шт.
43
218-5278
ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB
ASSEMBLY - 90 degree, 3/8" tube x 7/16"-20 (At priority valve), Incl. Ref. 44
1шт.
44
218-5003
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
- 11/32 x 1/2 x 5/64" (8.73 x 12.7 x 1.98 MM)
1шт.
45
A160449
HOSE
- control valve to check valve
2шт.
46
218-5059
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring
CONNECTOR ASSEMBLY - straight, 1/2" tube x 3/4"-16 (At check valve), Incl. Ref 47
2шт.
13
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- 41/64 x 13/16 x 3/32" (16.27 x 20.64 x 2.38 MM)
1шт.
21
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- 41/64 x 13/16 x 3/32" (16.27 x 20.64 x 2.38 MM)
1шт.
23
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- 41/64 x 13/16 x 3/32" (16.27 x 20.64 x 2.38 MM)
1шт.
47
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- 41/64 x 13/16 x 3/32" (16.27 x 20.64 x 2.38 MM)
1шт.
Выбрано товаров: 38
