Запчасти Case IH 4890 (5-144) - REAR STEERING HYDRAULICS, CHECK VALVE AND CYLINDERS, PRIOR TO PIN 8858086 (05) - STEERING

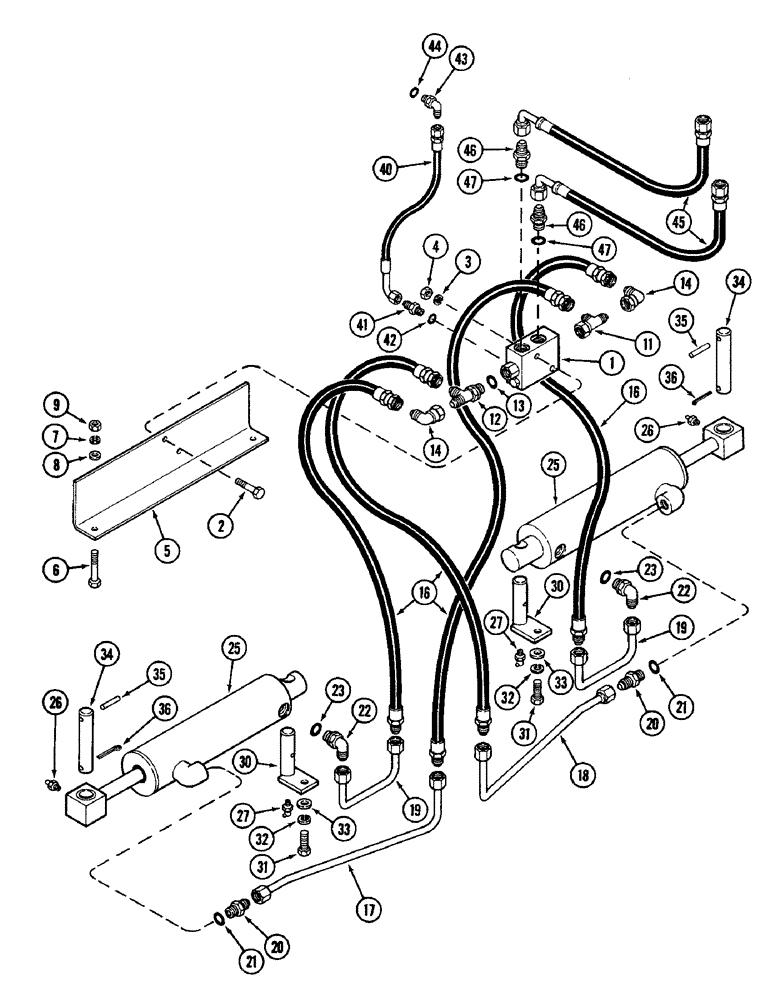

Схема запчастей Case IH 4890 - (5-144) - REAR STEERING HYDRAULICS, CHECK VALVE AND CYLINDERS, PRIOR TO PIN 8858086 (05) - STEERING
17
32
21
41
23
33
27
1
14
42
47
40
23
46
20
4
31
26
32
27
9
43
16
34
22
45
20
18
14
44
35
22
34
36
19
8
46
30
11
13
2
16
26
7
19
25
31
3
30
36
33
47
35
5
21
25
12
6

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - check (See Figure 5-162)

1шт.

2

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

25-106

NUT,3/8"-16, G5

- 3/8" NC hex.

2шт.

5

A160004

BRACKET

ANGLE - mounting, check valve (Order A161785)

1шт.

6

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" NC hex. (Grade 5)

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 mm)

2шт.

9

25-106

NUT,3/8"-16, G5

- 3/8" NC hex.

2шт.

11

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

CONNECTOR - branch, 1/2" tube x 3/4"-16 (LH hose)

1шт.

12

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

CONNECTOR ASSEMBLY - branch, x 3/4"-16 (RH hose), Includes: Ref. 13

1шт.

14

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 1/2" tube x 3/4"-16

2шт.

16

A161688

HOSE

- valve to cylinder tube (Order A162278)

4шт.

17

A77058

TUBE

- hose to RH steering cylinder

1шт.

18

A77059

TUBE

- hose to LH steering cylinder

1шт.

19

A77057

TUBE

- valve, Serial Range: hose-cylinder

2шт.

20

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - 1/2" tube x 3/4"-16, Incl. Ref 21

2шт.

22

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree, 1/2" tube x 3/4"-16, Includes: Ref. 23

2шт.

25

G102020

CYLINDER

ASSEMBLY - rear steering (See Figure 5-156)

2шт.

26

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

27

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

30

A76545

PIN

- inner, steering cylinder

2шт.

31

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

32

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

33

195-106

WASHER,1/2"

- 9/16 x 1-3/8 x 7/64" (14.29 x 34.92 x 2.78 MM)

2шт.

34

A160382

PIN,25.4mm OD x 132.08mm L

- outer, steering cylinder

2шт.

35

135-764

GROOVED PIN,1/4" x 1 1/2", Type E

PIN - groove, 1/4 x 1/2" (6.35 x 12.7 MM)

2шт.

36

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), (6.35 x 44.45 MM) 1/4" x 1 3/4"

2шт.

40

A161535

TUBE

HOSE - priority valve to check valve

1шт.

41

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR ASSEMBLY - straight, 3/8" tube x 9/16"-18 (At check valve), Incl. Ref. 42

1шт.

42

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.89 x 15.88 x 1.98 mm)

1шт.

43

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

ASSEMBLY - 90 degree, 3/8" tue x 7/16"-20 (At priority valve), Incl. Ref. 44

1шт.

44

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64" (8.73 x 12.7 x 1.98 MM)

1шт.

45

A160449

HOSE

- control valve to check valve

2шт.

46

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, 1/2" tube x 3/4"-16 (At priority valve), Incl. Ref 47

2шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32" (16.27 x 20.64 x 2.38 MM)

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32" (16.27 x 20.64 x 2.38 MM)

1шт.

23

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32" (16.27 x 20.64 x 2.38 MM)

1шт.

47

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32" (16.27 x 20.64 x 2.38 MM)

1шт.
