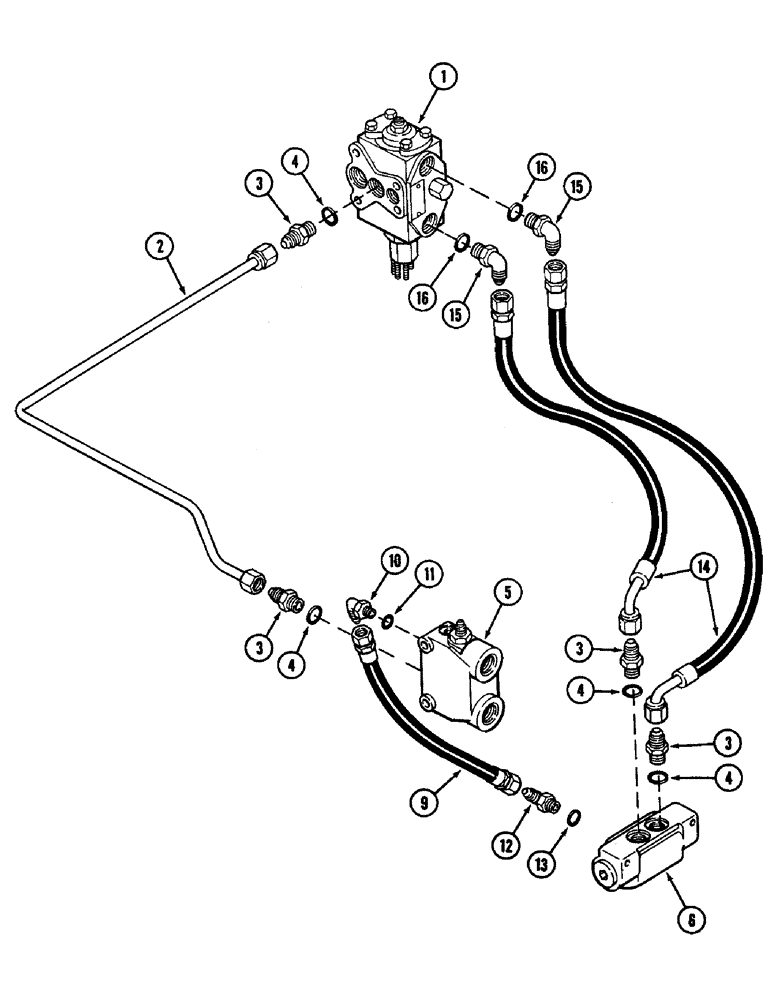

Запчасти Case IH 4890 (5-143A) - REAR STEERING HYDRAULICS, CHECK VALVE, P.I.N. 8860450 AND AFTER (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY - rear steering (See Figure 5-158)

1шт.

2

A161879

TUBE

ASSEMBLY - priority valve to steering valve

1шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, Incl. Ref 4

4шт.

5

REF

INSTRUCTION

VALVE ASSEMBLY - priority (See Figure 5-160)

1шт.

6

REF

INSTRUCTION

VALVE ASSEMBLY - steering check (See Figuree 5-162)

1шт.

9

A161882

HOSE

ASSEMBLY - priority valve to check valve

1шт.

10

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

ASSEMBLY - 90 degree, Incl. Ref. 11

1шт.

11

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 5/64" (8.73 x 1.98 MM)

1шт.

12

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSEMBLY - 90 degree, 9/16" PT, Includes: Ref. 13

1шт.

13

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.89 ID x 1.98 mm width)

1шт.

14

A160449

HOSE

ASSEMBLY - steering valve to check valve

2шт.

15

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree, 3/4" PT, Includes: Ref. 13

2шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 3/32" (16.27 x 2.38 MM)

1шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 3/32" (16.27 x 2.38 MM)

1шт.
