Запчасти Case IH 4890 (5-138) - REAR STEERING ELECTRIC CONTROLS (05) - STEERING

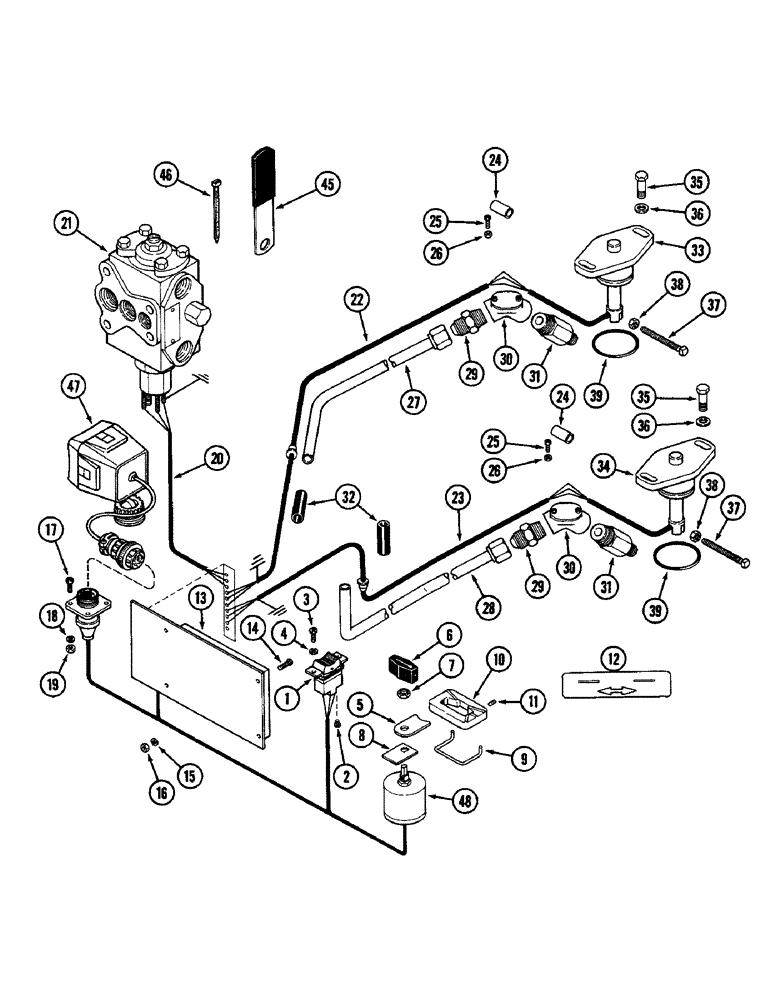

Схема запчастей Case IH 4890 - (5-138) - REAR STEERING ELECTRIC CONTROLS (05) - STEERING
7
14
37
46
24
26
3
31
10
30
38
34
9
4
20
39
31
2
27
19
1
5
33
29
28
35
21
36
17
13
22
24
36
25
32
39
47
37
26
48
35
29
8
30
12
25
16
6
23
45
15
11
38
18

Артикул

Название

Примечание

Количество

1

A162070

SWITCH

- rocker, rear steering control (Replaces A160186), Includes: Ref. 2

1шт.

2

182-583

SCREW,Slotted Pan Hd, #6-32 x 3/16"

- brass, #6-32 x 3/16" slotted pan head

3шт.

3

182-522

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

- #6-32 x 1/2" pan head Phillips

4шт.

4

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

2шт.

5

A162042

PLATE

STRAP - retaining (Replaces 195-525 washer)

1шт.

6

A160272

KNOB

- selector

1шт.

7

A39888

NUT

- spring, 3/8" - 32

1шт.

8

A160501

SPRING

- selector knob

1шт.

9

A160502

ELECTRICAL WIRE

WIRE - stop

1шт.

10

A162250

KNOB

SWITCH - limiter (Replaces A160531 knob)

1шт.

11

178-850

SET SCREW,Hex Soc, #6-32 x 1/4"

SCREW - #6-32 x 1/4" set, headless hex. socket

2шт.

12

321-5319

DECAL

- selector (Used with A160531 knob)

1шт.

13

A162852

ELEC CONNECTOR

CONTROL BOX AND HARNESS ASSEMBLY - rear steering (Replaces A160049)

1шт.

14

182-565

SCREW,Sltd Pan Hd, #8-32 x 5/8"

- #8-32 x 5/8" pan head

5шт.

15

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

4шт.

16

129-16

NUT,#8-32

5шт.

17

182-45

SCREW,Sl Pan Hd, #6 - 32 x 7/16"

- #6-32 x 7/16" pan head

4шт.

18

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

4шт.

19

129-15

NUT,#6-32

4шт.

20

A160043

HARNESS

- wire, control box to control valve

1шт.

129-16

NUT,#8-32

(Harness to valve) (Not shown) #8-32

3шт.

21

A145924

VALVE

ASSEMBLY - rear steering control (See Figure 5-158)

1шт.

22

A160042

HARNESS

- wire, rear axle sensor to control box

1шт.

23

A160041

HARNESS

- wire, front axle sensor to control box

1шт.

24

A161254

SLEEVE

- shrink, harness to sensor lugs (Set of 3)

2шт.

Use 345-92 silicone protector.

1шт.

25

182-583

SCREW,Slotted Pan Hd, #6-32 x 3/16"

- brass, #6-32 x 3/16" pan head (Harness terminals)

6шт.

26

129-15

NUT,#6-32

6шт.

27

A149686

CONDUIT

- rear sensor wire harness

1шт.

28

A149687

CONDUIT

- front sensor wire harness

1шт.

29

218-1025

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-14, NPTF

CONNECTOR - straight, 3/4" PT x 3/4"-16

2шт.

30

A149530

FITTING

ELBOW - conduit to axle trunnion

2шт.

31

A149605

CONNECTOR, ELEC

CONNECTOR - straight (3/4" PT x 5/8"-11)

2шт.

32

A161375

SLEEVE

- shrink, harness to conduit (Set of 2)

1шт.

33

A149697

TRANSMITTER

SENSOR - rear axle LH trunnion

1шт.

33

A185744R

REMAN-SENSOR

4890 CASE TRACTOR, SENSOR, rear axle LH trunnion (1/79-12/83), Reman for New PN A149697

1шт.

33

A185744C

CORE-SENSOR

Return Number

1шт.

34

A149696

TRANSMITTER

SENSOR - front axle LH trunnion

1шт.

34

A185743R

REMAN-SENSOR

SENSOR - front axle LH trunnion

1шт.

34

A185743C

CORE-SENSOR

Return Number

1шт.

35

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

36

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 MM)

4шт.

37

A160466

SQUARE BOLT,1/4" - 20, SST

- set, Serial Range: sensor-trunnion

2шт.

38

129-141

JAM NUT,Jam, 1/4"-20, G5

2шт.

39

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- 2 x 2-1/4 x 1/8" (50.8 x 57.15 x 3.17 MM)

2шт.

45

A149744

CLAMP

- rear wire conduit

1шт.

46

A160890

STRAP

- nylon, wire harness

1шт.

47

REF

INSTRUCTION

INDICATOR - turn, rear wheel (See Figure 4-98)

1шт.

48

A47749

SWITCH

- rotary

1шт.

345-56

LUBRICANT

LOCTITE - no. 767, Includes: Ref. 51 - 53

1шт.

51

A164655

HARNESS

- fuse holder, Includes: Ref. 52, Serial Range: -8859751

1шт.

52

223-40

FUSE,3/4 Amp, Type 3AG

- 3/4 ampere

1шт.

53

A164700

DECAL

- important, Serial Range: -8859751

1шт.

Выбрано товаров: 53
