Запчасти Case IH 4890 (5-136) - FRONT STEERING HYDRAULICS (05) - STEERING

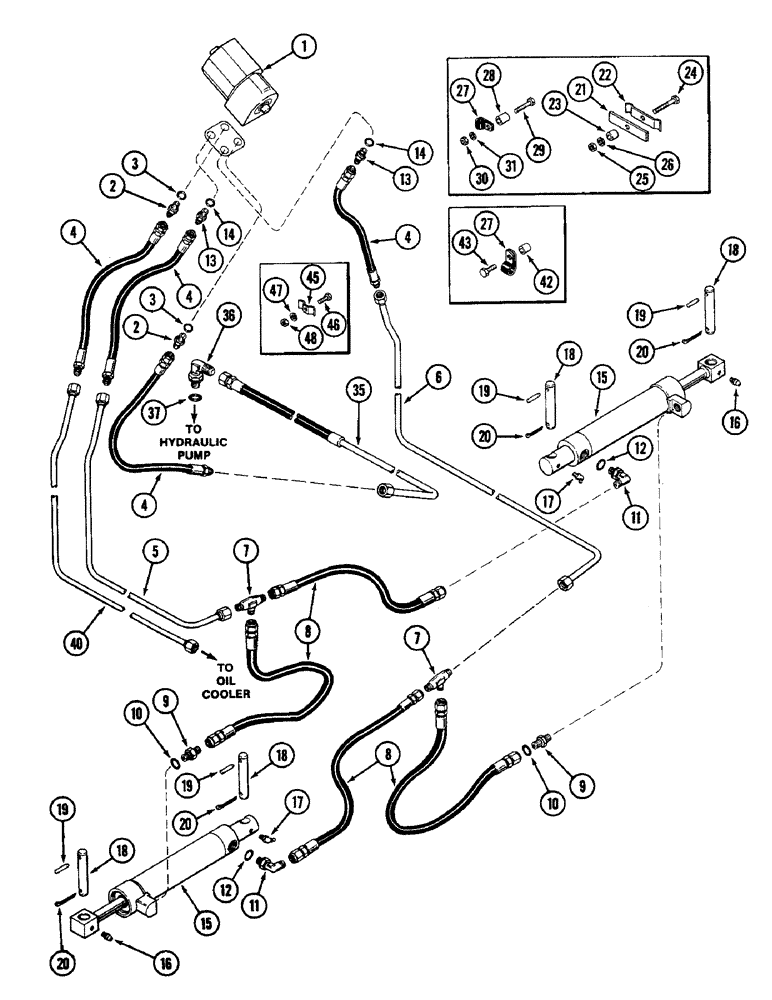

Схема запчастей Case IH 4890 - (5-136) - FRONT STEERING HYDRAULICS (05) - STEERING
43
20
3
2
45
17
47
42
16
21
35
18
19
9
40
19
20
2
10
3
12
36
22
14
29
8
5
26
25
27
18
24
13
12
7
46
11
16
48
15
4
17
4
11
10
30
13
37
20
1
27
23
14
4
7
19
18
8
18
6
19
28
20
4
31
9
15

Артикул

Название

Примечание

Количество

1

A145864

VALVE

AND PUMP ASSEMBLY - front steering (Figure 5-148)

1шт.

2

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

FITTING ASSEMBLY - valve hoses (9/16"-18 x 3/4"-16), Includes: Ref. 3

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.9 x 9.5 x 2 mm)

1шт.

4

A162278

HOSE,0.38" ID x 20.00", SAE 100R2 per SAE J517

- Front steering valve port (Replaces A161688) 0.38" ID x 20.00", SAE 100R2 per SAE J517

4шт.

5

A140429

TUBE

- RH steering cylinder

1шт.

6

A140430

TUBE

- LH steering cylinder

1шт.

7

218-594

TEE,3/4"-16, 37 Degree

CONNECTOR - cylinder hoses, 1/2 x 3/4"-16 tube

2шт.

8

H364497

HOSE,0.38" ID x 22.00", SAE 100R2A

Cylinder Steering, Replaces D64604) 0.38" ID x 22.00", SAE 100R2A

4шт.

9

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - cylinder hose, Incl. Ref 10

2шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - cylinder hose 90 degree, Includes: Ref. 12

2шт.

13

A149481

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - restrictor, Includes: Ref. 14

2шт.

15

G35514

CYLINDER

ASSEMBLY - front steering (See Figure 5-152 and 5-154)

2шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

17

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - 45 degree, 1/4"-28

2шт.

18

A160382

PIN,25.4mm OD x 132.08mm L

- steering cylinders

4шт.

19

135-764

GROOVED PIN,1/4" x 1 1/2", Type E

PIN - groove, 1/4 x 1-3/4" (6.4 x 44.5 MM)

4шт.

20

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

4шт.

21

A140431

SUPPORT

- tube clamp to side plate

1шт.

22

A140432

CLAMP

- double

1шт.

23

A140434

BUSHING

SPACER - clamp support, 3/4" wide (19.1 MM)

1шт.

24

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

49838

CLAMP

- tube, RH and LH side

4шт.

28

A140435

BUSHING

SPACER - clamp, RH and LH tubes 5/16" (8 MM) Wide

4шт.

28

A140442

BUSHING

SPACER - clamp, LH tube 1" (25.4 MM) Wide

1шт.

29

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

29

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

35

A162283

HOSE

- front steering pressure (Replaces A151132)

1шт.

36

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree, Includes: Ref. 37

1шт.

40

A140428

TUBE

- oil, Serial Range: cooler-valve

1шт.

42

A76093

BUSHING

SPACER - pressure hose, 1/2" (12.7 MM) Wide

1шт.

43

187-1304

SELF-TAP SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

SCREW - 3/8 x 3/4" hex. head Taptite

1шт.

45

A63323

CLAMP

- pressure hose

2шт.

46

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

47

92-5

LOCK WASHER,5/16"

1шт.

48

9635082

NUT,5/16" - 18, Gr 5

- 5/16" NC hex.

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32" (12.7 x 16.7 x 2.4 MM)

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32" (12.7 x 16.7 x 2.4 MM)

1шт.

14

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32" (16.3 x 20.6 x 2.4 MM)

1шт.

37

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32" (12.7 x 16.7 x 2.4 MM)

1шт.
