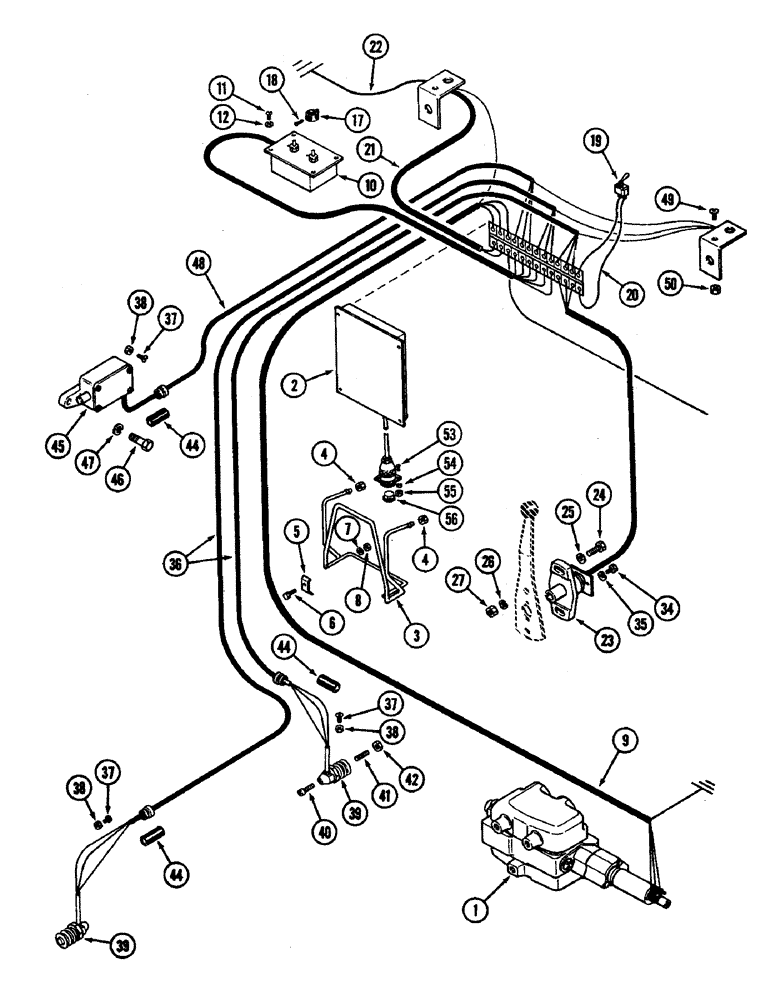

Запчасти Case IH 4890 (4-128) - ELECTRIC HITCH WIRING, P.I.N. 8860450 AND AFTER (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

VALVE ASSEMBLY - hitch control (See Figure 8-330)

1шт.

2

A161940

BOX

- hitch control

1шт.

3

A162600

BRACKET

- control box

1шт.

4

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - 7/16" self threading

2шт.

5

A60224

CLAMP

-, Serial Range: bracket-console

1шт.

6

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

8

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

9

A161981

HARNESS

ASSEMBLY - hitch valve

1шт.

10

A161933

BOX

CONTROL BOX - hitch

1шт.

11

182-545

SCREW,Slotted Pan Hd, #8-32 x 5/16"

- #8-32 x 5/16" pan head

4шт.

12

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

4шт.

17

A161989

KNOB

- draft and sensing

2шт.

18

178-870

SET SCREW,Hex Soc, #8-32 x 3/16"

SCREW - #6-32 x 3/16 set

2шт.

19

A162764

SWITCH

- reset

1шт.

20

A165198

ELECTRICAL WIRE

WIRE - reset switch (Replaces A162458)

2шт.

21

A162427

CABLE PULLING GRIP

WIRE - hitch valve ground

1шт.

22

A163035

ELECTRICAL WIRE

WIRE - hitch ground, Serial Range: console-frame

1шт.

23

A162359

TRANSMITTER

SENSOR - hitch lever

1шт.

24

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

25

195-104

WASHER,3/8"

- flat 3/8"

2шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

34

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

3шт.

35

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

36

A161975

HARNESS

ASSEMBLY - draft arm

2шт.

37

182-583

SCREW,Slotted Pan Hd, #6-32 x 3/16"

- #6-32 x 3/16" slotted pan head, brass

9шт.

38

129-15

NUT,#6-32

9шт.

39

A165422

TRANSMITTER

SENSOR - draft arm (Replaces A161960)

2шт.

40

61-520

HEX SOC SCREW,5/16"-18 x 1 1/4"

SCREW - 5/16 x 1-1/4" NC hex. socket

2шт.

41

A164769

SET SCREW,Hex, 3/8" - 24 x 1 1/2"

- sensor adjust, 3/8 x 1-1/2" NF hex. socket (Replaces 178-887)

2шт.

42

86585245

SPECIAL NUT,JAM, 5/8" - 18

- 3/8" NC hex. jam

2шт.

A161254

SLEEVE

- shrink (Set of 3)

1шт.

44

A163365

SLEEVE

- shrink, sensor to harness (Order A161254)

9шт.

45

A162103

TRANSMITTER

SENSOR - rockshaft

1шт.

46

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

47

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

48

A161974

HARNESS

ASSEMBLY - rockshaft sensor

1шт.

49

182-565

SCREW,Sltd Pan Hd, #8-32 x 5/8"

- ground wire to console, #8-32 x 5/8" pan head

2шт.

50

129-16

NUT,#8-32

2шт.

53

182-522

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

- #6-32 x 1/2" pan head Phillips

3шт.

54

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

3шт.

55

129-15

NUT,#6-32

3шт.

56

353-409

PLUG,Dome, .812" hole, Nylon

- protective (Heyco type)

1шт.
