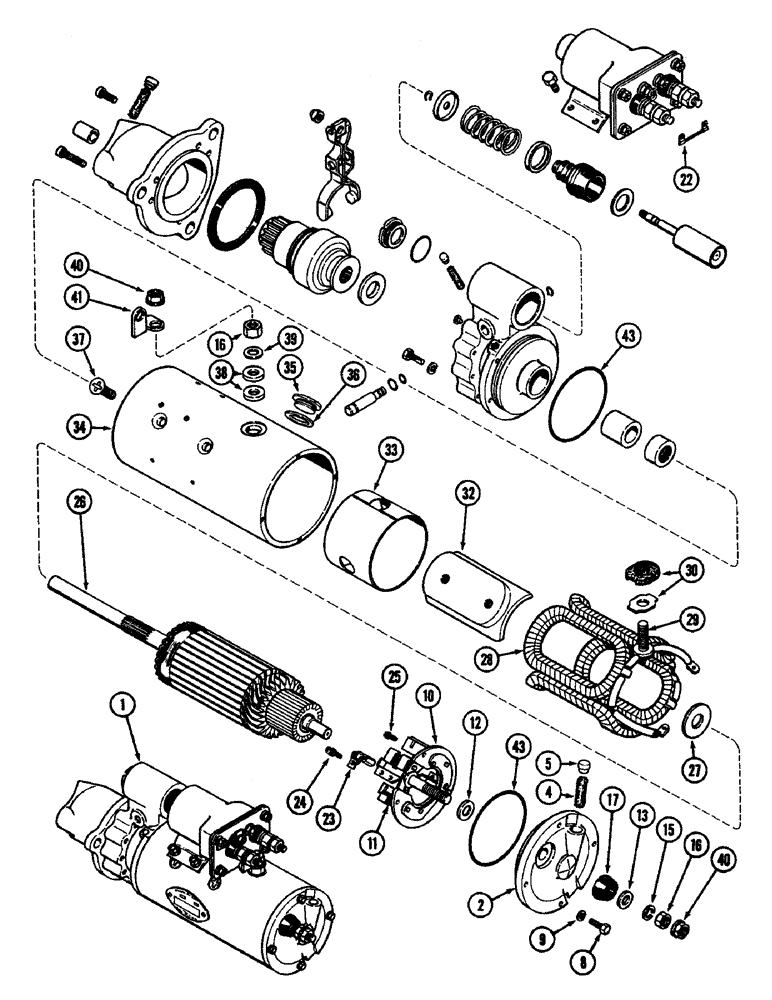

Запчасти Case IH 4890 (4-118) - STARTER ASSEMBLY, P.I.N. 8858362 AND AFTER (04) - ELECTRICAL SYSTEMS

1

A162578

ENGINE

STARTER ASSEMBLY - engine, new (Delco-Remy #1114802), Includes: Ref. 2 - 43 and 47 - 86 on Figure 4-120

1шт.

1

104215A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104215A1C

CORE-STARTER

Return Part Number

1шт.

1

A47464

ALTERNATOR

STARTER ASSEMBLY - remanufactured, Includes: Ref. 2 - 43 and 47 - 86 on Figure 4-120

1шт.

1

A47465

CORE-STARTER

Return Part Number - use this part number to return starter core for credit

1шт.

2

A47887

FRAME

FRAME ASSEMBLY - commutator end, Includes: Ref. 4 and 5

1шт.

4

A47933

WICK

WICK - oil, 5/16 x 2" (7.9 x 50.8 MM)

1шт.

5

A47889

PLUG

PLUG - oil reservoir

1шт.

8

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, , Commutator frame Hex, 1/4"-28 x 1", G5

4шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

10

A47891

PLATE

PLATE ASSEMBLY - brush holder mounting (Without brushes), Includes: Ref. 11

1шт.

11

A47892

SPRING

SPRING - brush tension

4шт.

12

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - spacer, commutator end

1шт.

13

D30006

WASHER

WASHER - terminal stud insulator

1шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Terminal stud 1/2"

1шт.

16

129-145

JAM NUT,Jam, 1/2"-13, G5

NUT, Jam, 1/2"-13, G5

2шт.

17

A43701

BUSHING

BUSHING - mounting plate stud

1шт.

22

A42408

ELECTRICAL WIRE

WIRE LEAD - solenoid ground

1шт.

23

A47934

BRUSH, COMMUTATOR

BRUSH BRUSH - starter

4шт.

24

A47894

SCREW,#8 - 32 x 5/16"

SCREW - brush lead #8-32 x 5/16" hex.

6шт.

25

A43847

SCREW,3/8" - 32 x 1/2"

SCREW ASSEMBLY - brush plate mounting (With lockwasher)

5шт.

26

A40898

ARMATURE

ARMATURE - starter

1шт.

27

A40892

WASHER

WASHER - spacer, drive housing

1шт.

28

A47855

COIL

COIL ASSEMBLY - field, Includes: Ref. 29

1шт.

29

A40896

STUD

STUD - starter terminal

1шт.

30

A41925

BUSHING

BUSHING ASSEMBLY - field terminal stud

1шт.

32

R15115

SHOE

SHOE - pole

4шт.

33

A44169

INSULATOR

INSULATION - field coil

1шт.

34

NSS

NOT SOLD SEPARAT

FRAME - field (Order A162578)

1шт.

35

R21587

PLUG

PLUG - brush inspection

2шт.

36

A41924

GASKET

GASKET - inspection plug

2шт.

37

A42127

SCREW,3/8" - 24 x 0.20"

SCREW - pole shoe

8шт.

38

D30005

INSULATOR

INSULATOR - field terminal stud, outer

2шт.

39

D30006

WASHER

WASHER - field terminal

1шт.

40

A47890

NUT

NUT - 1/2" NC hex. special

2шт.

41

A40894

CONNECTOR, ELEC

CONNECTOR CONNECTOR - field, Serial Range: terminal-solenoid

1шт.

43

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

O-RING - frame sealing, 4-1/8 x 4-3/8 x 1/8" (104.77 x 111.12 x 3.17 MM)

2шт.
