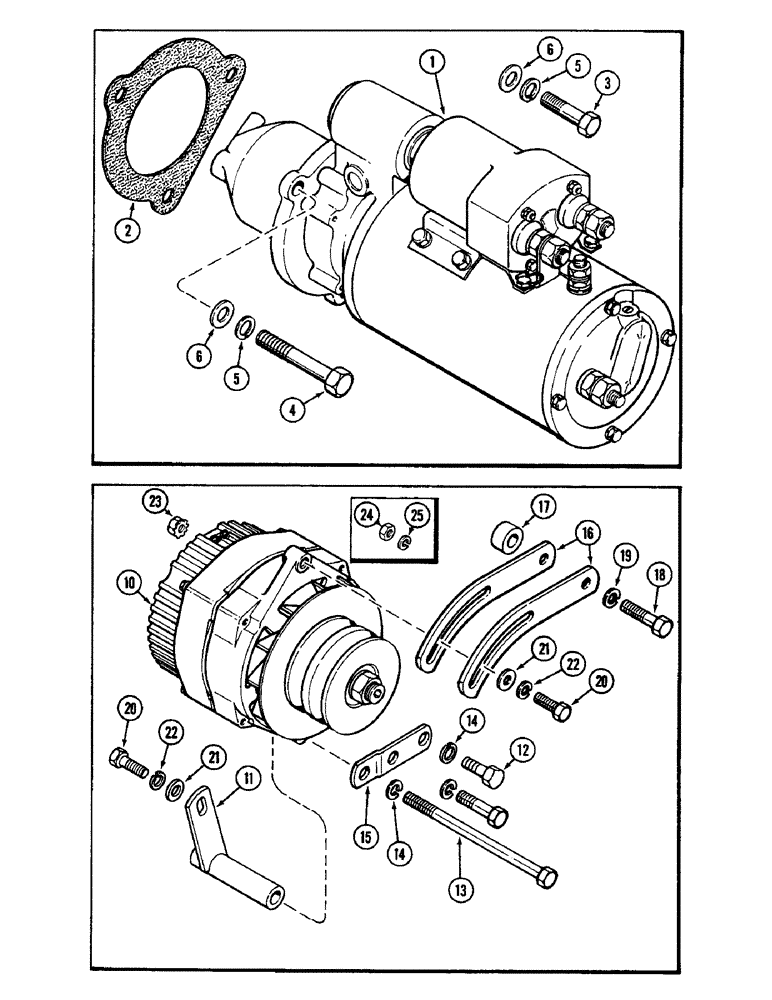

Запчасти Case IH 4890 (4-112) - STARTER MOUNTING, ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER ASSEMBLY - engine (See Figure 4-114 through 4-120)

1шт.

87297380

REMAN-STARTER

Remanufactured Starter; For N.A. only

1шт.

87297381

CORE-STARTER

Return number - For N.A. only

1шт.

2

A27933

GASKET

GASKET - starter mounting

2шт.

3

113-2432

BOLT,Locking, 1/2" - 13 x 2", Gr 5

BOLT - lock, 1/2 x 2" NC hex. (Grade 5)

2шт.

4

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

BOLT, Hex, 1/2"-13 x 3 1/4", G5

1шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

6

A75865

WASHER

WASHER - 17/32 x 1 x 1/8" (13.49 x 25.4 x 3.17 MM)

3шт.

10

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine (See Figure 4-124 and 4-126)

1шт.

11

A140415

BRACKET

BRACKET - alternator mounting

1шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT - 3/8 x 1-1/2" NC hex. (Grade 5)

2шт.

13

113-258

BOLT,Hex, 3/8" - 16 x 6", Gr 5

BOLT, Hex, 3/8"-16 x 6", G5

1шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

15

A140419

BRACKET

BRACKET - alternator support

1шт.

16

A34705

ADJUSTER

STRAP - adjusting, alternator

2шт.

17

A140418

BUSHING

SPACER -, Serial Range: strap-engine

1шт.

18

813-10085

BOLT,Hex, M10 x 1.5 x 85mm, Cl 8.8

BOLT - 10 x 1.5 x 85 MM hex.

1шт.

19

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

1шт.

20

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

20

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

BOLT - 8 x 1.25 x 25 MM

2шт.

Metric alternator has blue identification spot on upper mounting leg.

1шт.

21

195-21

WASHER,5/16"

WASHER, (11/32 x 11/16 x 1/16") (8.73 x 17.46 x 1.59 mm) 5/16"

1шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

23

193-1008

NUT,Keps, w/LW,#12-24

NUT - #12-24 hex. Keps (Battery terminal

1шт.

24

825-1106

NUT,Hex, M6, Cl 8

NUT - 6 x 1 mm hex (Battery terminal)

1шт.

Metric alternator has blue identification spot on upper mounting leg.

1шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.
