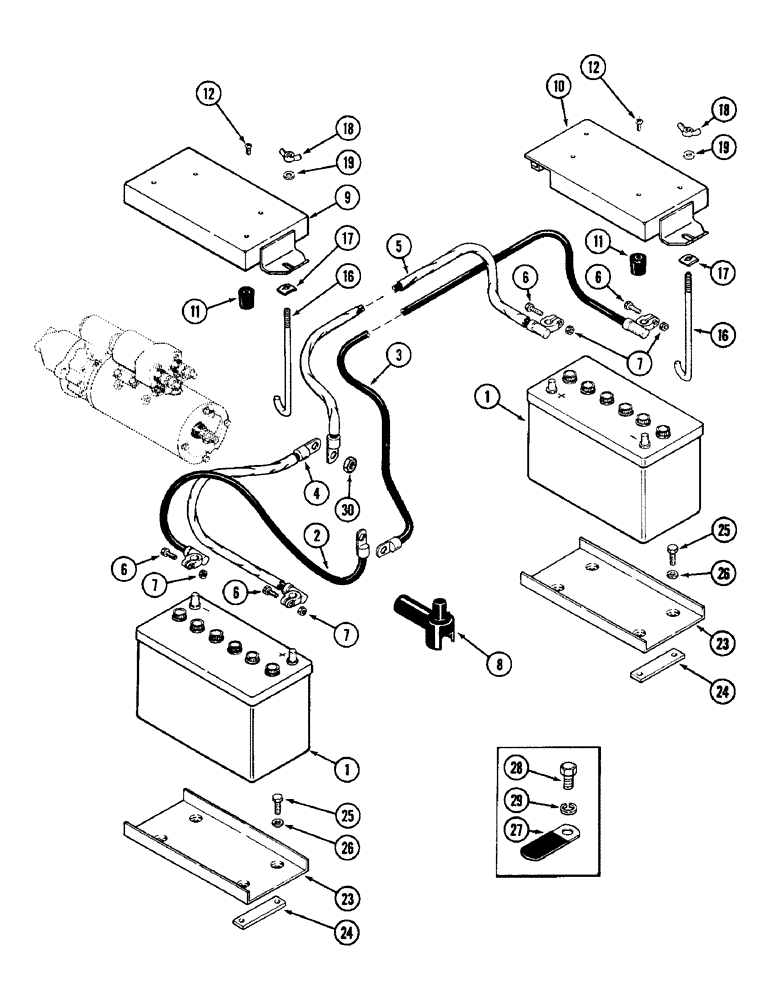

Запчасти Case IH 4890 (4-108) - BATTERIES, CABLES AND MOUNTING (04) - ELECTRICAL SYSTEMS

1

A162334

DRY BATTERY

- 12 volt (Order A38411), Start Serial: 8858216

2шт.

1

A39177

X

BATTERY - wet (Order A38411), Serial Range: -8858216

2шт.

1

A38411

DRY BATTERY

- dry (12 volt)

2шт.

2

A75818

CABLE

ASSEMBLY - RH negative, 31-1/2" (800 MM)

1шт.

3

A75819

CABLE

ASSEMBLY - LH negative, 73" (1854 MM)

1шт.

4

A75820

CABLE

ASSEMBLY - RH positive, 40-1/2" (1028.7 MM)

1шт.

5

A75821

CABLE

ASSEMBLY - LH positive, 46" (1168.4 MM)

1шт.

6

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- 5/16 x 1-3/8" NC square head (Grade 2)

1шт.

7

129-516

NUT

- shoulder, 5/16" NC hex.

1шт.

8

A153796

BOLT

COVER - terminal, Serial Range: cable-starter

1шт.

9

A76440

COVER

- battery, RH

1шт.

10

A76441

COVER

- battery, LH

1шт.

11

A75847

FENDER

BUMPER - rubber, Serial Range: cover-battery

8шт.

12

175-454

SCREW,Phil Truss Hd, 1/4" - 20 x 3/8"

- 1/4 x 3/8" NC Phillips head

8шт.

16

A143936

BOLT,Hook, 5/16" - 18 x 10mm

BOLT - hook (5/16" NC)

4шт.

17

131-640

NUT

- speed, 5/16" (Tinnerman)

4шт.

18

G49020

NUT

- wing, 5/16" NC

4шт.

19

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16" (8.73 x 17.46 x 1.59 MM)

4шт.

23

A75848

CARRIER

- RH and LH battery

2шт.

24

A148489

BUSHING

SPACER - carrier

4шт.

25

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

27

A137179

CLIP

- battery cables

2шт.

28

814-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

29

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

1шт.

30

131-1308

JAM NUT,Jam, 1/2"-13

NUT - 1/2" NC hex. lock

1шт.
