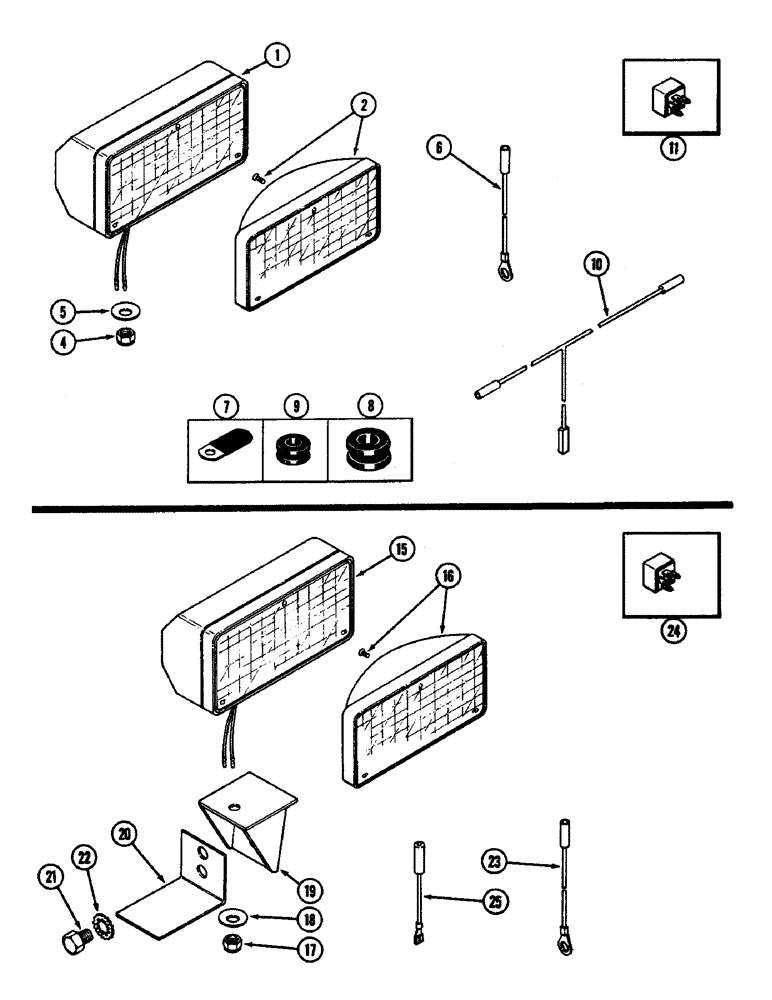

Запчасти Case IH 4890 (4-105A) - FLOOD LAMP ATTACHMENTS, FRONT AND REAR (04) - ELECTRICAL SYSTEMS

A165459

ATTACHMENT

- fender mounted flood lamp, Includes: Ref. 1 - 11

1шт.

1

A165192

LAMP

ASSEMBLY - flood, Includes: Ref. 2

1шт.

2

A48265

LAMP

BULB - sealed unit (#H7606)

1шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

5

D37049

WASHER

- pivot

1шт.

6

A147343

ELECTRICAL WIRE

WIRE - ground (With 3/8" eyelet) (Not used this unit)

1шт.

6

A147344

ELECTRICAL WIRE

WIRE - ground (With 1/2" eyelet)

1шт.

7

A22880

CLIP

- wire

2шт.

8

A61144

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

- wire, front cab port, 1/2" (12.7 MM) ID

1шт.

9

L13765

GROMMET

- wire, rear deck, 3/8" (9.52 MM) ID

1шт.

10

A142935

HARNESS

- front lamp

1шт.

11

A147176

RELAY

- lamp

1шт.

A165461

ATTACHMENT

- cab mounted flood lamp, Includes: Ref. 15 - 25, Start Serial: 8841101

2шт.

A165460

ATTACHMENT

- cab mounted flood lamp, Includes: Ref. 15 - 25, Serial Range: -8841101

2шт.

15

A165192

LAMP

ASSEMBLY - flood, Includes: Ref. 16

2шт.

16

A48265

LAMP

BULB - sealed beam (#H7606)

1шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

18

D37049

WASHER

- pivot

2шт.

19

A149102

BRACKET

- mounting, Serial Range: lamp-cab

2шт.

20

A149792

GUARD

SHIELD - lamp terminal

2шт.

21

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

2шт.

22

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

23

A147344

ELECTRICAL WIRE

WIRE - ground

2шт.

24

A147176

RELAY

- cluster harness (Part of A165460 attachment only)

1шт.

25

A160351

ELECTRICAL WIRE

WIRE - adapter

2шт.
