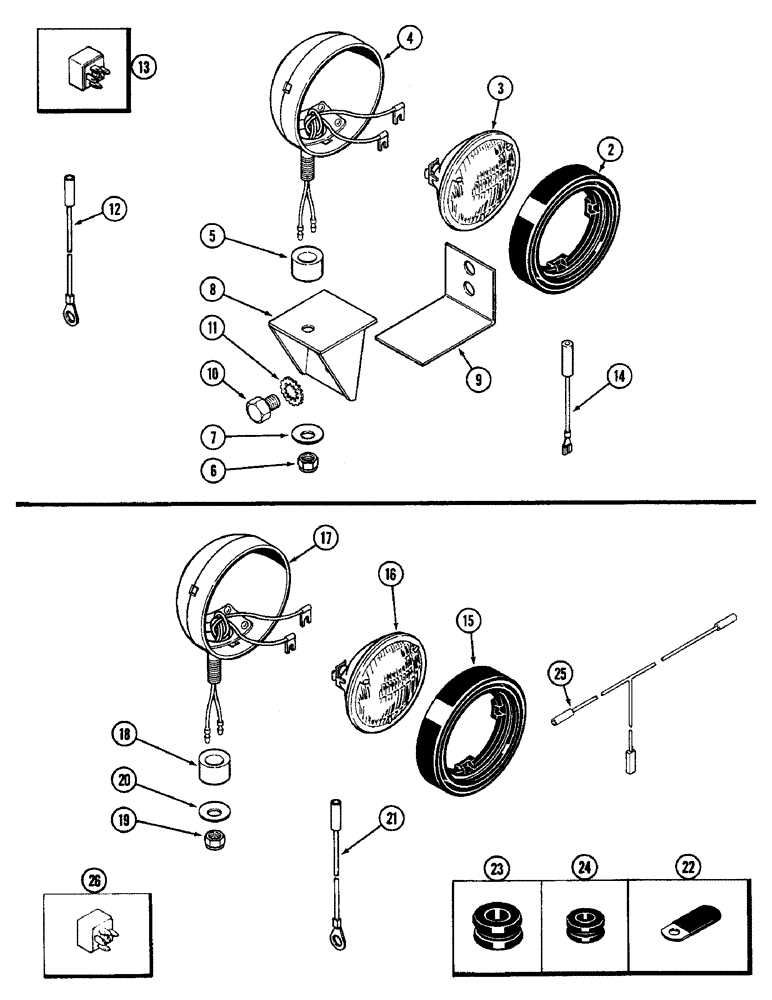

Запчасти Case IH 4890 (4-104) - FLOOD LAMP ATTACHMENTS, FRONT AND REAR (04) - ELECTRICAL SYSTEMS

A160602

INTERIOR LIGHT

ATTACHMENT - cab mounted flood lamp, Includes: Ref. 2 - 14

2шт.

A145495

LAMP

ASSEMBLY - flood, Includes: Ref. 2 - 4

2шт.

2

A25213

RETAINER

- bulb

1шт.

3

A47179

BULB

- sealed beam (#H7606)

1шт.

4

NSS

NOT SOLD SEPARAT

BODY AND TERMINAL ASSEMBLY - lamp

1шт.

5

D37048

BUSHING

- pivot

1шт.

6

129-125

NUT,1/2"-20, G5

. 1/2"-20, G5

2шт.

7

D37049

WASHER

- pivot

2шт.

8

A149102

BRACKET

- mounting, Serial Range: lamp-cab

2шт.

9

A149792

GUARD

SHIELD - lamp terminal

2шт.

10

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

2шт.

11

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

12

A147344

ELECTRICAL WIRE

WIRE - ground

2шт.

13

A147176

RELAY

- cluster harness

1шт.

14

A160351

ELECTRICAL WIRE

WIRE - adapter

2шт.

A160600

LAMP

ATTACHMENT - fender mounted flood lamp, Includes: Ref. 15 - 25

1шт.

A145495

LAMP

ASSEMBLY - flood, Includes: Ref. 15 - 18

1шт.

15

A25213

RETAINER

- bulb

1шт.

16

A47179

BULB

- sealed unit (#H7606)

1шт.

17

NSS

NOT SOLD SEPARAT

BODY AND TERMINAL ASSEMBLY - lamp

1шт.

18

D37048

BUSHING

- pivot

1шт.

19

129-125

NUT,1/2"-20, G5

. 1/2"-20, G5

1шт.

20

D37049

WASHER

- pivot

1шт.

21

A147343

ELECTRICAL WIRE

WIRE - ground (With 3/8" eyelet) (Not used this unit)

1шт.

21

A147344

ELECTRICAL WIRE

WIRE - ground (With 1/2" eyelet)

1шт.

22

A22880

CLIP

- wire

2шт.

23

A61144

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

- wire, front cab port, 1/2" (12.7 MM) ID

1шт.

24

L13765

GROMMET

- wire, rear deck, 3/8" (9.52 MM) ID

1шт.

25

A142935

HARNESS

- front lamp

1шт.

26

A147176

RELAY

- lamp, fender mounted

1шт.
