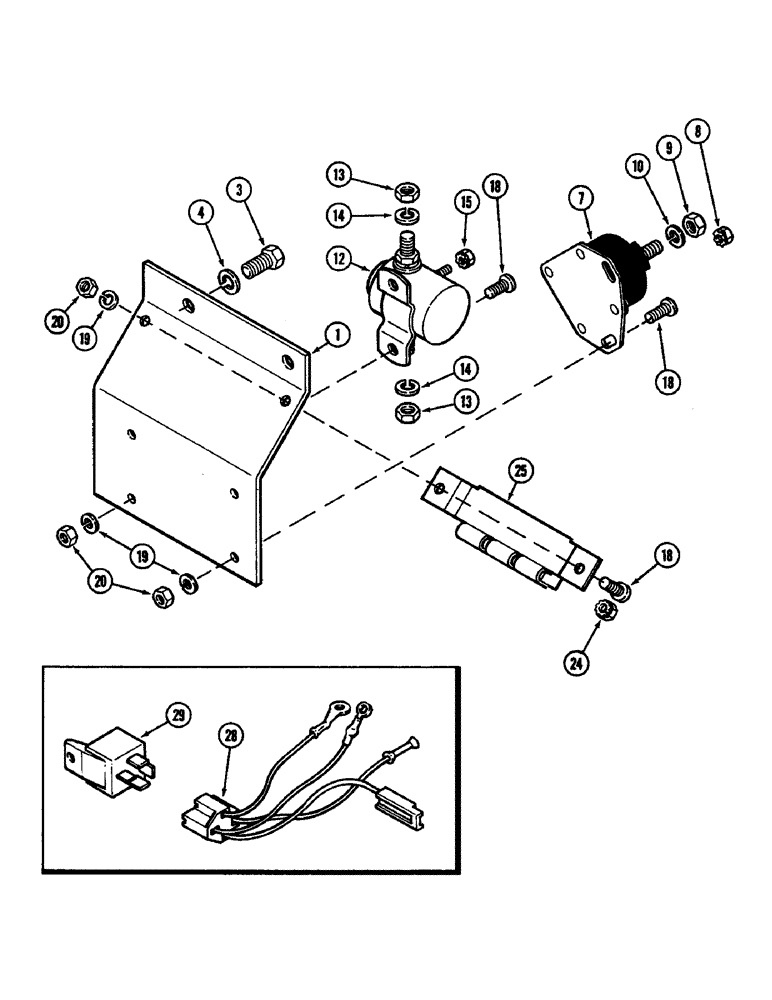

Запчасти Case IH 4890 (4-100) - SOLENOID AND CIRCUIT BREAKER MOUNTING (04) - ELECTRICAL SYSTEMS

1

A149783

BRACKET

- mounting, solenoids and circuit breaker

1шт.

3

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- 4 x 0.7 x 30 MM hex.

2шт.

4

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

2шт.

7

A39079

SOLENOID

SWITCH - neutral start solenoid

1шт.

8

193-1000

NUT,Keps, w/LW,#10-32

- terminal, #10-32 hex. (Keps)

1шт.

9

9635082

NUT,5/16" - 18, Gr 5

2шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

12

NSS

NOT SOLD SEPARAT

SWITCH ASSEMBLY - solenoid, cab (Order ref. 28 and 29), Includes: Ref. 13 - 15

1шт.

13

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

193-1000

NUT,Keps, w/LW,#10-32

- terminal, #10-32 Keps

1шт.

18

182-527

SCREW,Sl Pan Hd, 1/4" - 20 x 5/8"

- support, 1/4 x 5/8" NC truss head

6шт.

19

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

20

193-1006

NUT,Keps, w/LW, 1/4"-20

- 1/4" NC hex. (Keps)

6шт.

24

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex. (Keps)

4шт.

25

A160983

BREAKER

- circuit, 20, 40 and 50 ampere

1шт.

28

A165316

HARNESS

ASSEMBLY - cab relay

1шт.

29

A165315

CAB

RELAY - 12 volt, 40 ampere

1шт.
