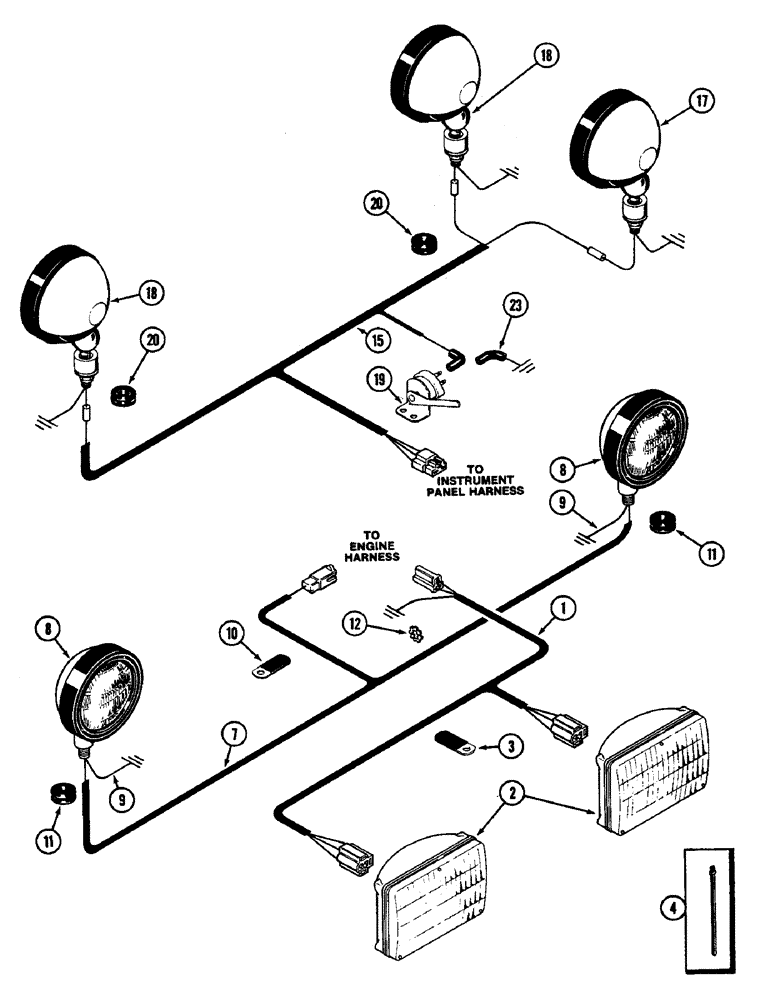

Запчасти Case IH 4890 (4-086) - HEAD AND TAIL LAMPS, FLOOD LAMPS AND WIRING (04) - ELECTRICAL SYSTEMS

1

A162317

HARNESS

- wire, head lamp (Replaces A142934)

1шт.

2

A139458

LAMP

- head (See Figure 4-102)

2шт.

3

A37179

CLIP

- wire harness

2шт.

4

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - nylon, wire harness

1шт.

7

REF

INSTRUCTION

HARNESS - wire, front fender head flood lamp (See kit Figure 4-104)

1шт.

8

A145495

LAMP

- flood, fender mounted (See Figure 4-104)

2шт.

9

A147344

ELECTRICAL WIRE

WIRE - ground, flood lamp 8" (203.2 MM) Black

2шт.

10

A22880

CLIP

- wire

2шт.

11

A61144

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

- flood lamp wire

2шт.

12

193-72

LOCK WASHER

- lock, 3/8" internal-external Shakeproof (Ground bolt)

1шт.

15

F64510

HARNESS

- wire, rear lamps

1шт.

17

A155077

LAMP

- flood and tail, LH rear fender (See Figure 4-102)

1шт.

18

A145495

LAMP

- flood, RH (See Figure 4-104)

1шт.

19

A33977

SWITCH

- hand brake warning

1шт.

20

A61144

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

- flood lamp wire

2шт.

23

A59711

ELECTRICAL WIRE

WIRE - ground, brake switch

1шт.
