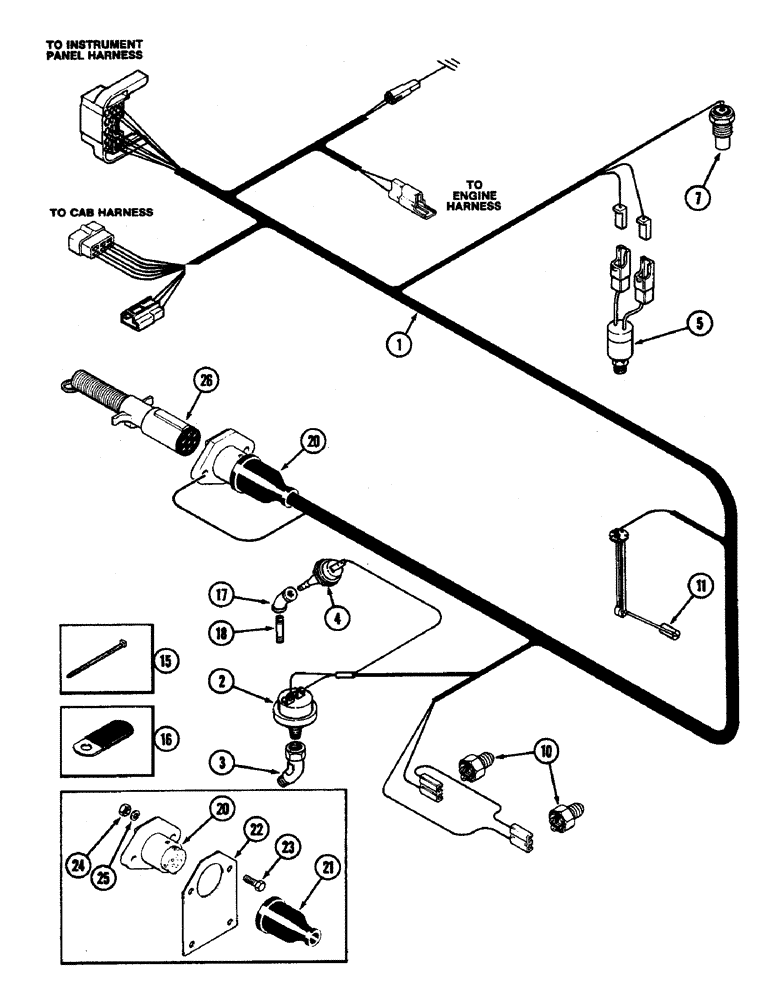

Запчасти Case IH 4890 (4-084) - TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS

1

A161496

HARNESS

ASSEMBLY - wire, transmission

1шт.

2

A161461

SWITCH

- transmission differential pressure (At filter)

1шт.

3

221-401

ELBOW,45 Degree, 1/8"-27, NPT

- 1/8" PT 45 degrees

1шт.

4

A66737

SWITCH, PRESSURE

SWITCH - transmission oil filter pressure

1шт.

5

A162422

SWITCH

- transmission pressure (At regulator valve) (Replaces A145119 switch and A155051 snubber)

1шт.

7

A135001

SWITCH

- transmission temperature

1шт.

10

A139078

SWITCH

- neutral start

2шт.

11

A144084

UNIT

SENDER - fuel tank lever (See Figure 3-74)

1шт.

15

A160890

STRAP

- nylon, harness

1шт.

16

A22880

CLIP

- wire

2шт.

17

221-1365

ELBOW,45 Degree, 1/8" NPT

- 45 degree

1шт.

18

221-1110

PIPE,Nipple, 1/8" NPT x 2 1/2"

NIPPLE - pipe, 1/8" PT x 2-1/2"

1шт.

20

A38739

CONNECTOR, ELEC

CONNECTOR - female, 7 point, auxliary electric outlet

1шт.

21

A38740

GUARD

PROTECTOR - connector wiring

1шт.

22

A149955

BRACKET

- mounting

1шт.

23

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

24

9635082

NUT,5/16" - 18, Gr 5

4шт.

25

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

26

A139672

PLUG

- male connector, 7 point

1шт.
