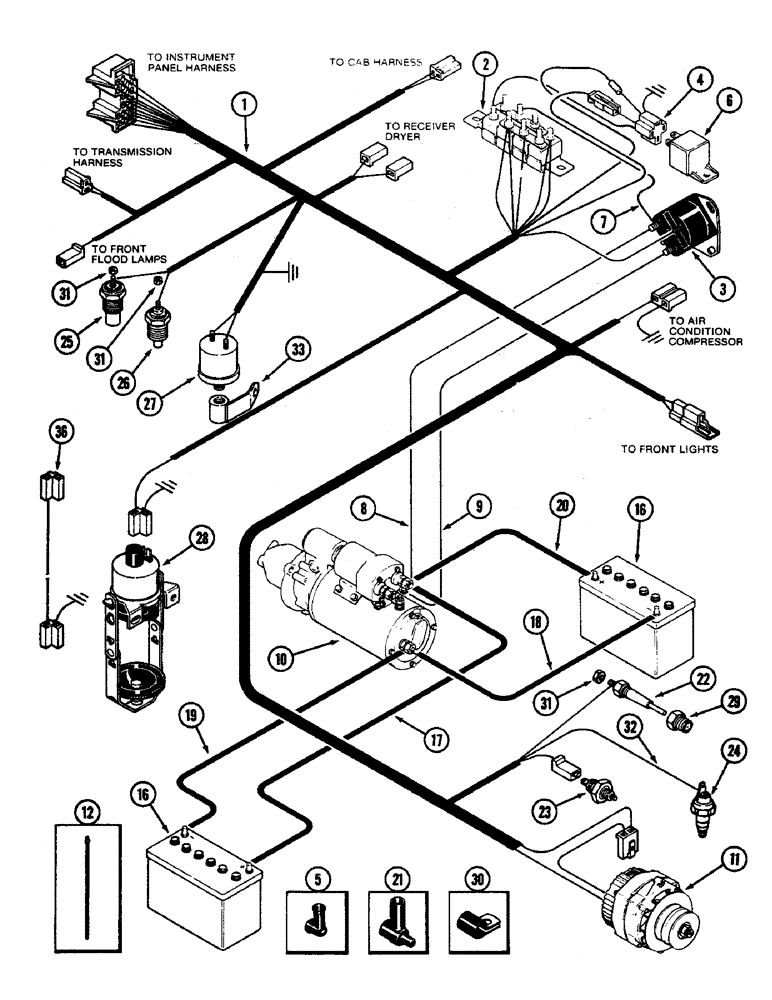

Запчасти Case IH 4890 (4-083A) - ENGINE HARNESS, AND CAB RELAY (04) - ELECTRICAL SYSTEMS

1

A162331

HARNESS

ASSEMBLY - wire, engine components (Replaces A161057)

1шт.

2

A160983

BREAKER

- circuit (See Figure 4-100)

1шт.

3

A39079

SOLENOID

- intermediate (See Figure 4-100)

1шт.

4

A165316

HARNESS

ASSEMBLY - cab relay (See Figure 4-100)

1шт.

5

A21753

CAP

BOOT - rubber, terminal

6шт.

6

A165315

CAB

RELAY - cab, 12 volt, 40 ampere (See Figure 4-100)

1шт.

7

A160995

CABLE

- cab solenoid to circuit breaker red, 10" (254.0 MM)

1шт.

8

A150829

CABLE

- starter to intermediate solenoid, red 40" (1016 MM)

1шт.

9

A149781

CABLE

- starter to intermediate solenoid yellow, 40" (1016 MM)

1шт.

10

REF

INSTRUCTION

STARTER ASSEMBLY - engine (See Figure 4-114 through 4-120)

1шт.

11

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine (See Figure 4-124 and 4-126)

1шт.

12

A160890

STRAP

- nylon, wire harness

1шт.

16

A38411

DRY BATTERY

- electrical storage (See Figure 4-108)

2шт.

17

A75818

CABLE

- RH negative to starter ground (See Figure 4-108)

1шт.

18

A75819

CABLE

- LH negative to starter ground (See Figure 4-108)

1шт.

19

A75820

CABLE

- RH positive to starter solenoid (See Figure 4-108)

1шт.

20

A75821

CABLE

- LH positive to starter solenoid (See Figure 4-108)

1шт.

21

A153796

BOLT

COVER - terminal, starter solenoid

1шт.

22

A145513

SENSOR

PROBE - sensing, coolant level

1шт.

23

A154782

SWITCH

- sensing, air restriction (See Figure 2-10)

1шт.

24

A162297

SWITCH

- fuel pressure (See Figure 3-62)

1шт.

25

A141558

SWITCH

- engine temperature

1шт.

26

D65446

SENDER UNIT

SWITCH - engine water temperature

1шт.

27

REF

INSTRUCTION

SWITCH - engine oil pressure (See Figure 3-70)

1шт.

28

REF

INSTRUCTION

SOLENOID ASSEMBLY - ether start (See Figure 2-12)

1шт.

29

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

Bushing (Brass) 1/4"-18 NPTF x 1/8"-27 Fem NPTF

1шт.

30

A37179

CLIP

- wire harness

1шт.

31

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex. (Keps)

3шт.

32

A161048

ELECTRICAL WIRE

WIRE - jumper, A154772, Serial Range: switch-harness

1шт.

33

A46391

BRACKET

- oil pressure switch

1шт.

36

A165296

ELECTRICAL WIRE

WIRE ASSEMBLY - extension, ether start

1шт.
