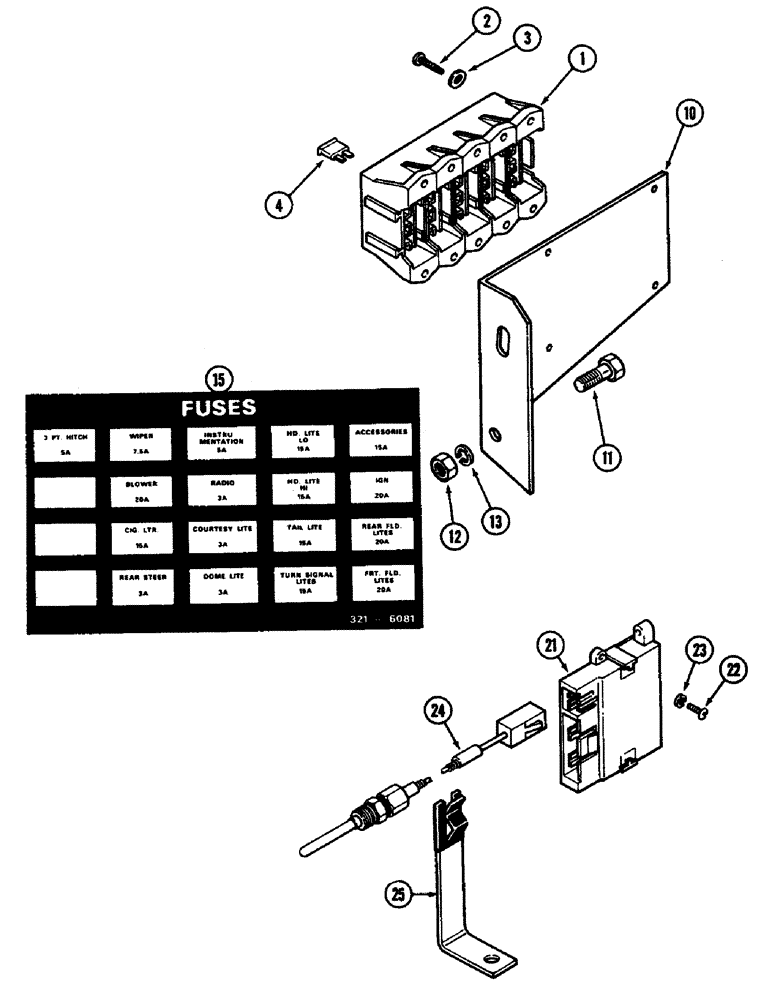

Запчасти Case IH 4890 (4-078) - FUSES AND FUSE HOLDER INSTRUMENT PANEL HARNESS (04) - ELECTRICAL SYSTEMS

1

NSS

NOT SOLD SEPARAT

HOLDER - fuse (Part of instrument panel harness, see Figure 4-76)

1шт.

2

182-541

SCREW,Cross Pan Hd, #10-24 x 3/4"

- #10-24 x 3/4" pan head

4шт.

3

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64" (5.6 x 12.7 x 1.2 MM)

4шт.

4

A149796

FUSE

- 3 ampere

4шт.

4

1A49798

FUSE - 5 ampere

1шт.

4

A149799

FUSE

- 7.5 ampere

1шт.

4

A149801

FUSE,Lt Blue, 15 Amp

- 15 ampere

6шт.

4

A149802

FUSE

- 20 ampere

4шт.

10

A164242

PLATE

- mounting, fuse holder (Replaces A149838)

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

321-6081

DECAL

- fuse location (Replaces 321-5976)

1шт.

21

A154256

CONNECTOR, ELEC

MODULE - pyrometer, 674 cubic inch diesel engine

1шт.

22

182-125

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- #10-24 x 1/2" pan head

2шт.

23

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

24

A154255

TRANSMITTER

THERMOCOUPLE - exhaust pipe to module, 674 cubic inch diesel engine

1шт.

25

A147023

BRACKET

- thermocouple to exhaust pipe clamp

1шт.
