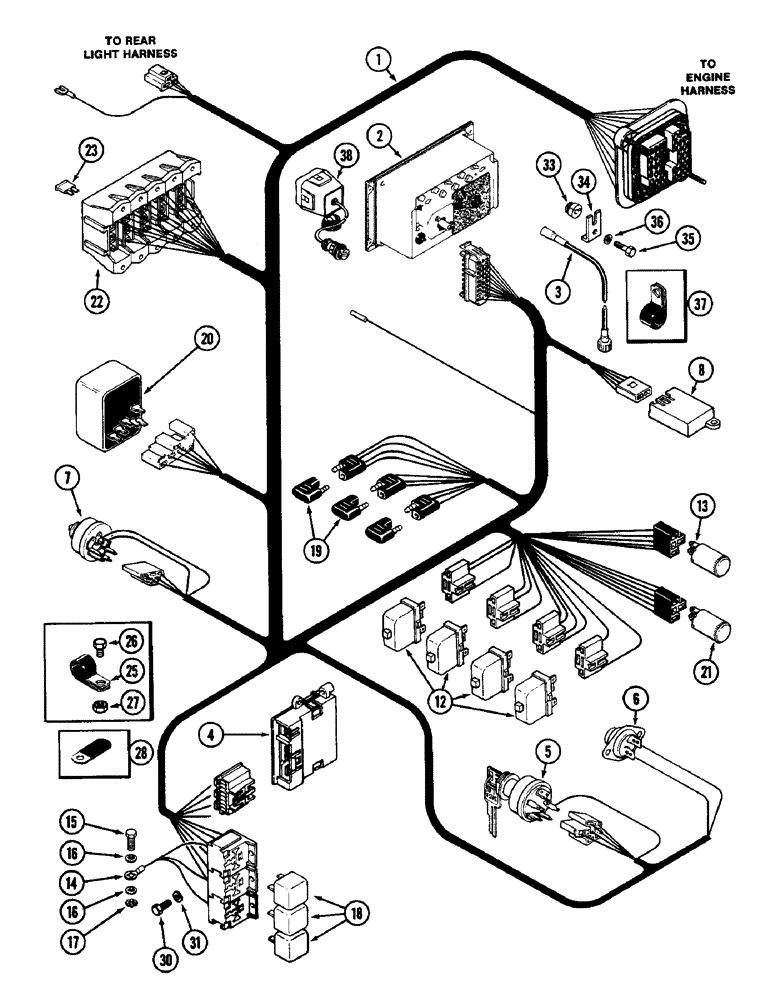

Запчасти Case IH 4890 (4-076) - INSTRUMENT PANEL WIRING (04) - ELECTRICAL SYSTEMS

1

A162115

HARNESS

ASSEMBLY - wire, instrument panel (Replaces A160665 and A162333)

1шт.

2

REF

INSTRUCTION

CLUSTER ASSEMBLY - instrument (See Figure 4-96)

1шт.

3

A160541

CABLE

ASSEMBLY - tachometer drive, 90" 2 286 MM) Long

1шт.

4

REF

INSTRUCTION

MODULE - pyrometer (See Figure 4-78)

1шт.

5

A77312

SWITCH

- starting (See Figure 4-98)

1шт.

6

A36948

SWITCH

- push button, cold start (See Figure 4-98)

1шт.

7

A141607

SWITCH

- lamp (See Figure 4-98)

1шт.

8

A162294

CONNECTOR, ELEC

MODULE - low coolant indicator (Replaces A147382)

1шт.

12

A143506

BUZZER

- warning (See Figure 4-98)

4шт.

13

A145677

RELAY

- time delay (5 wire connector)

1шт.

14

A163005

ELECTRICAL WIRE

WIRE - ground, flood lamp relays, 7-1/2" (190.5 MM) Long (Replaces A149791)

1шт.

15

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

16

195-518

WASHER,1/4", SAE

- 9/32 x 5/8 x 5/64" (7.14 x 15.87 x 1.98 mm)

2шт.

17

193-57

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

1шт.

18

A147176

RELAY

- flood lamp and electric hitch

3шт.

19

A147976

DIODE

- lamp check

3шт.

20

A77184

SWITCH

- flasher and turn signal (See Figure 4-98)

1шт.

21

A160116

RELAY

- time delay (6 wire connector)

1шт.

22

NSS

NOT SOLD SEPARAT

HOLDER - fuse (Blade type fuse) (See Figure 4-78)

1шт.

23

REF

INSTRUCTION

FUSE - blade type (See Figure 4-78)

1шт.

25

515-22254

CLAMP,1", Insul, 5/16" Bolt

CLIP - wire

2шт.

26

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

27

9635082

NUT,5/16" - 18, Gr 5

2шт.

28

A22880

CLIP

- wire

2шт.

30

182-550

SCREW,Cross Pan Hd, #10-24 x 1/2"

- #10-24 x 1/2" hex. head (Type F)

2шт.

31

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

33

A152511

GROMMET

- tachometer cable

1шт.

34

A152518

BRACKET

- clamp, Serial Range: grommet-firewall

1шт.

35

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

36

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

37

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

CLIP - tachometer cable to engine

2шт.

38

REF

INSTRUCTION

INDICATOR - turn, rear wheel (See Figure 4-98)

1шт.
