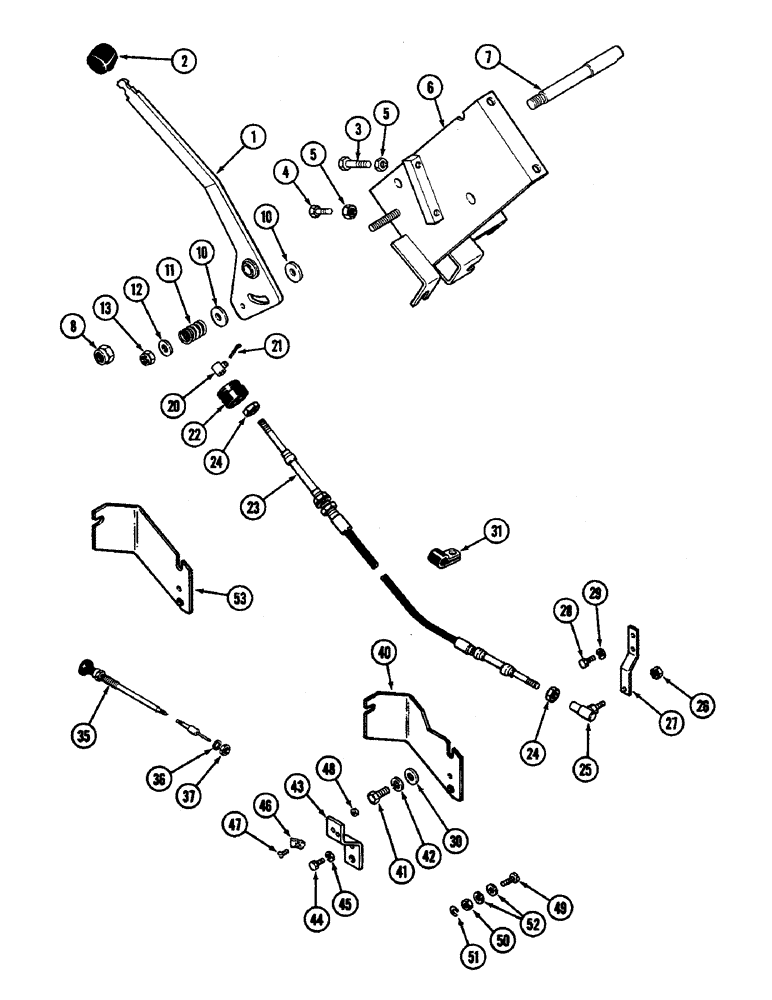

Запчасти Case IH 4890 (3-72) - THROTTLE CONTROL, ENGINE STOP CONTROL, 674 CUBIC INCH DIESEL ENGINE (03) - FUEL SYSTEM

1

A137859

LEVER

- hand, throttle control

1шт.

2

A137806

KNOB

- rubber, control lever

1шт.

3

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Stop Hex, 3/8"-16 x 2", G5

1шт.

4

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Stop Hex, 3/8"-16 x 1 1/2", G5

1шт.

5

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam, 3/8" NC hex.

2шт.

6

A138833

BRACKET

- control lever

1шт.

7

A75377

SHAFT

- control lever

1шт.

8

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

1шт.

10

A61069

DISC

- friction, throttle lever

2шт.

11

A26546

SPRING

- friction disc, 1-1/4" (31.8 MM) Free length

1шт.

12

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 MM)

2шт.

13

131-52

NUT,3/8"-16, GC

NUT - lock, 3/8" NC hex.

1шт.

20

A75386

LINKAGE

PIVOT - throttle, Serial Range: lever-cable

1шт.

21

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

22

A152510

GROMMET

- throttle and stop cable

1шт.

23

A152773

CABLE

- throttle control, 60" (1524 MM)

1шт.

24

129-37

NUT,#10-32

2шт.

25

A76747

BALL JOINT,#10 -32 x 7/8" L

BALL JOINT - cable to pump arm

1шт.

26

193-1001

NUT,Keps, w/LW, 1/4"-28

- 1/4" NF hex., Keps

1шт.

27

A136995

LEVER

- throttle, injection pump

1шт.

28

814-6014

BOLT,Hex, M6 x 1 x 14mm, Cl 8.8, Full Thd

- 6 x 1.0 x 14 MM hex.

2шт.

29

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

30

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 MM)

1шт.

31

49832

CLAMP

- cable

1шт.

35

A149720

CABLE

ASSEMBLY - engine stop control 77" (1956 MM), Includes: Ref. 36 and 37

1шт.

36

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

37

129-164

JAM NUT,Hex, 7/16" - 20, Gr 5

Jam, 7/16"- 20, G5

1шт.

40

A165468

BRACKET

- anchor, throttle and stop cable, Start Serial: 8860100

1шт.

41

814-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

42

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

2шт.

43

A161226

BRACKET

STRAP - stop cable clip (Replaces A144879)

1шт.

44

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

45

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

46

B51765

CLIP

- stop cable

1шт.

47

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

- #10-24 x 3/4" round head machine

1шт.

48

129-17

NUT,Hex, #10 - 24

NUT - hex. #10-24

1шт.

49

A46374

SET SCREW

- stop lever set

1шт.

50

A46375

NUT

- stop lever mounting

1шт.

51

A46376

RING

- stop lever nut lock

1шт.

52

195-515

WASHER,#12

- 1/4 x 1/2 x 1/16" (6.35 x 12.7 x 1.59 MM)

2шт.

53

A144880

BRACKET

- anchor, throttle and stop cable, Serial Range: -8860100

1шт.
