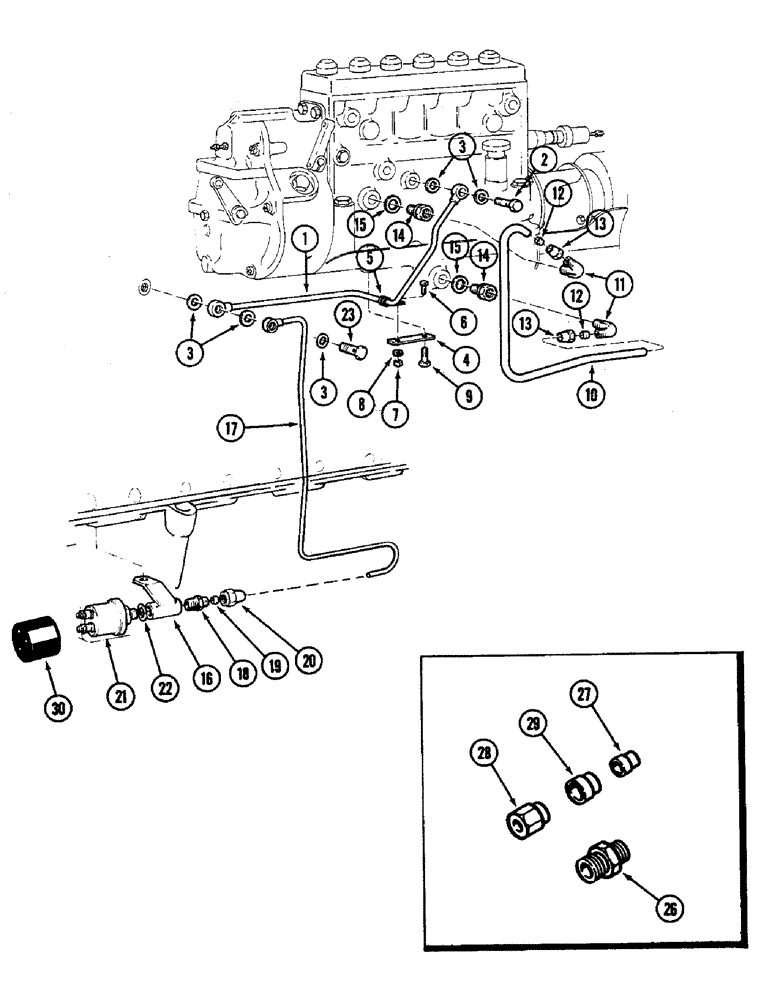

Запчасти Case IH 4890 (3-70) - INJECTION PUMP LUBRICATION TUBES, 674 CUBIC INCH DIESEL ENGINE (03) - FUEL SYSTEM

1

A46544

TUBE

- lubrication, cylinder, Serial Range: block-pump

1шт.

Engine serial no. 5243345 and after. Engine serial no. 3027228 and after.

1шт.

1

A46358

TUBE

- lubrication, cylinder, Serial Range: block-pump

1шт.

Prior to engine serial no. 5243345. Prior to engine serial no. 3027228.

1шт.

2

A46361

BANJO BOLT

- hollow (Replaces A46251)

2шт.

3

A45731

GASKET

- washer

5шт.

4

A46255

BRACKET

- tube clamp

1шт.

5

A46257

CLAMP

- lube tube

1шт.

Prior to engine serial no. 5243345. Prior to engine serial no. 3027228.

1шт.

6

813-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

- 6 x 1.0 x 16 MM hex.

1шт.

7

825-1006

NUT,M6, Cl 8

- 6 MM hex.

1шт.

Prior to engine serial no. 5243345. Prior to engine serial no. 3027228.

1шт.

8

195-515

WASHER,#12

- 1/4 x 1/2 x 3/64" (6.35 x 12.7 x 1.19 MM)

1шт.

Prior to engine serial no. 5243345. Prior to engine serial no. 3027228.

1шт.

9

NSS

NOT SOLD SEPARAT

BOLT - retainer (Part of injection pump assembly)

1шт.

10

A46545

TUBE

- return, injection pump to cylinder block

1шт.

Engine serial no. 5243345 and after. Engine serial no. 3027228 and after.

1шт.

10

A46252

TUBE

- return, injection pump to cylinder block

1шт.

Prior to engine serial no. 5243345. Prior to engine serial no. 3027228.

1шт.

11

A46858

OIL SEAL

ELBOW - return tube

2шт.

Prior to engine serial no. 5243345. Prior to engine serial no. 3027228.

1шт.

12

A46254

SLEEVE

- tube nut

2шт.

Prior to engine serial no. 5243345. Prior to engine serial no. 3027228.

1шт.

13

A46547

NUT

-, Serial Range: elbow-tube

2шт.

Engine serial no. 5243345 and after. Engine serial no. 3027228 and after.

1шт.

13

A46256

NUT

-, Serial Range: elbow-tube

2шт.

Prior to engine serial no. 5243345. Prior to engine serial no. 3027228.

1шт.

14

A46546

CONNECTOR, ELEC

CONNECTOR -, Serial Range: pump-block

2шт.

Engine serial no. 5243345 and after. Engine serial no. 3027228 and after.

1шт.

14

V45605

PLATE, THRUST

CONNECTOR -, Serial Range: pump-block

2шт.

Prior to engine serial no. 5243345. Prior to engine serial no. 3027228.

1шт.

15

A45731

GASKET

- washer, connector

2шт.

Engine serial no. 5243345 and after. Engine serial no. 3027228 and after.

1шт.

15

A45766

GASKET

- washer, connector

2шт.

Prior to engine serial no. 5243345. Prior to engine serial no. 3027228.

1шт.

16

A46391

BRACKET

- oil pressure switch

1шт.

17

A46392

TUBE

- oil lube

1шт.

18

A46393

CONNECTOR, ELEC

CONNECTOR - oil tube

1шт.

19

A46394

SLEEVE

- oil tube

1шт.

20

A46395

NUT

- oil tube

1шт.

21

A46390

SWITCH

- oil pressure (Prior to engine serial no. 5204755)

1шт.

21

A46562

SWITCH

- oil pressure (Engine serial no. 5204755 and after)

1шт.

22

A45997

GASKET

WASHER - oil switch

1шт.

23

A46413

SCREW,Hollow, 3/8" x 1 1/4"

BOLT - hollow, lube tube

1шт.

26

A46548

FITTING

NIPPLE - lubrication tube

2шт.

Engine serial no. 5243345 and after. Engine serial no. 3027228 and after.

1шт.

27

A46549

CLAMP

- ring

2шт.

Engine serial no. 5243345 and after. Engine serial no. 3027228 and after.

1шт.

28

A46550

NUT

- coupling

2шт.

Engine serial no. 5243345 and after. Engine serial no. 3027228 and after.

1шт.

A46552

HYD CONNECTOR

INSERT - thread (Not shown)

1шт.

29

A46551

CLAMP

- ring

2шт.

Engine serial no. 5243345 and after. Engine serial no. 3027228 and after.

1шт.

30

A46563

HOUSING

- switch protective (Engine serial no. 5204755 and after)

1шт.
