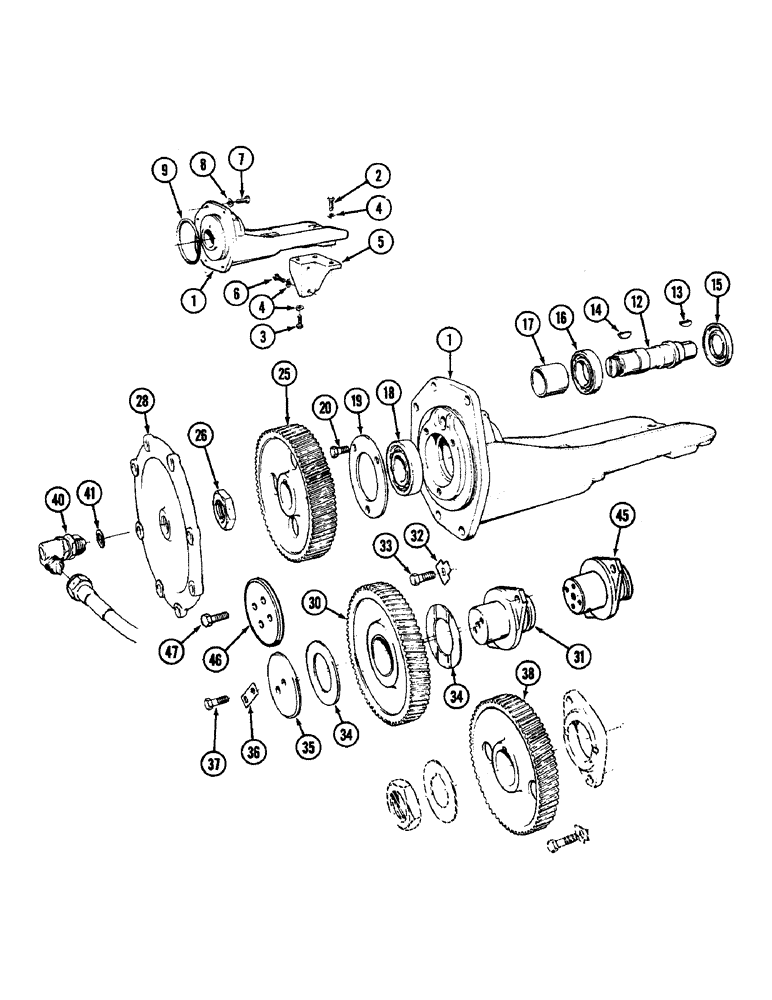

Запчасти Case IH 4890 (3-56) - INJECTION PUMP DRIVE, 674 CUBIC INCH DIESEL ENGINE (03) - FUEL SYSTEM

1

A45859

BRACKET

- fuel injection pump (Order A46606)

1шт.

Prior to engine serial no. 5247394. Prior to engine serial no. 3028401.

1шт.

1

A46606

BRACKET

- fuel injection pump

1шт.

Engine serial no. 5247394 and after. Engine serial no. 3028401 and after.

1шт.

2

813-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- 10 x 1.5 x 25 MM hex.

2шт.

3

813-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- 10 x 1.5 x 30 MM hex.

1шт.

4

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

5шт.

5

A46194

SUPPORT

- bracket

1шт.

6

813-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- 10 x 1.5 x 40 MM hex.

2шт.

7

813-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- 10 x 1.5 x 30 MM hex.

6шт.

8

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

6шт.

9

A46193

O-RING,134.5 mm ID x 140.5 mm OD

- bracket to timing gear cover

1шт.

12

A45939

SHAFT

- drive, injection pump

1шт.

13

CASA46184

KEY

-, Serial Range: coupling-shaft

1шт.

14

A46183

KEY

-, Serial Range: gear-shaft

1шт.

15

A45946

SEAL

- oil, pump drive shaft

1шт.

16

A45941

BALL BEARING

BEARING - inner, pump drive shaft

1шт.

17

A45943

BUSHING

SPACER - bearing, drive shaft

1шт.

18

A45940

BALL BEARING

BEARING - outer, pump drive shaft

1шт.

19

A45942

WASHER

- bearing retainer

1шт.

20

813-8014

BOLT,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

- 8 x 1.25 x 14 MM hex.

3шт.

25

A45938

GEAR

- pump drive

1шт.

26

A45944

NUT

- drive, Serial Range: gear-shaft

1шт.

28

REF

INSTRUCTION

COVER - gear (See Figure 3-54)

1шт.

30

A45931

GEAR

- intermediate (Includes bushing)

1шт.

31

A45932

SHAFT

AXLE - stud, intermediate gear

1шт.

Engine serial no. 5247394 and after. Engine serial no. 3028401 and after. A27812 E Rings will be used instead of a Snap ring.

1шт.

32

A45927

LOCK WASHER

- lock, axle bolt

2шт.

33

813-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- 10 x 1.25 x 25 MM hex.

2шт.

34

A45933

WASHER

- thrust

2шт.

35

A45934

WASHER

- retainer, intermediate gear

1шт.

Engine serial no. 5247394 and after. Engine serial no. 3028401 and after. A27812 E Rings will be used instead of a Snap ring.

1шт.

36

A45935

LOCK WASHER

- lock

1шт.

37

A45950

BOLT

- retainer washer

2шт.

Engine serial no. 5247394 and after. Engine serial no. 3028401 and after. A27812 E Rings will be used instead of a Snap ring.

1шт.

38

REF

INSTRUCTION

GEAR - camshaft (See Figure 2-34)

1шт.

40

A45947

GEAR

ASSEMBLY - tachometer drive

1шт.

41

A45948

WASHER

GASKET - tachometer, Serial Range: gear-cover

1шт.

45

A46614

SHAFT

AXLE - stud, intermediate gear

1шт.

Engine serial no. 5247394 and after. Engine serial no. 3028401 and after.

1шт.

46

A46615

WASHER

- retainer, intermediate gear

1шт.

Engine serial no. 5247394 and after. Engine serial no. 3028401 and after.

1шт.

47

A46518

SCREW,Hex, M8 x 1.25 x 20mm

BOLT - retainer washer

4шт.

Engine serial no. 5247394 and after. Engine serial no. 3028401 and after.

1шт.
