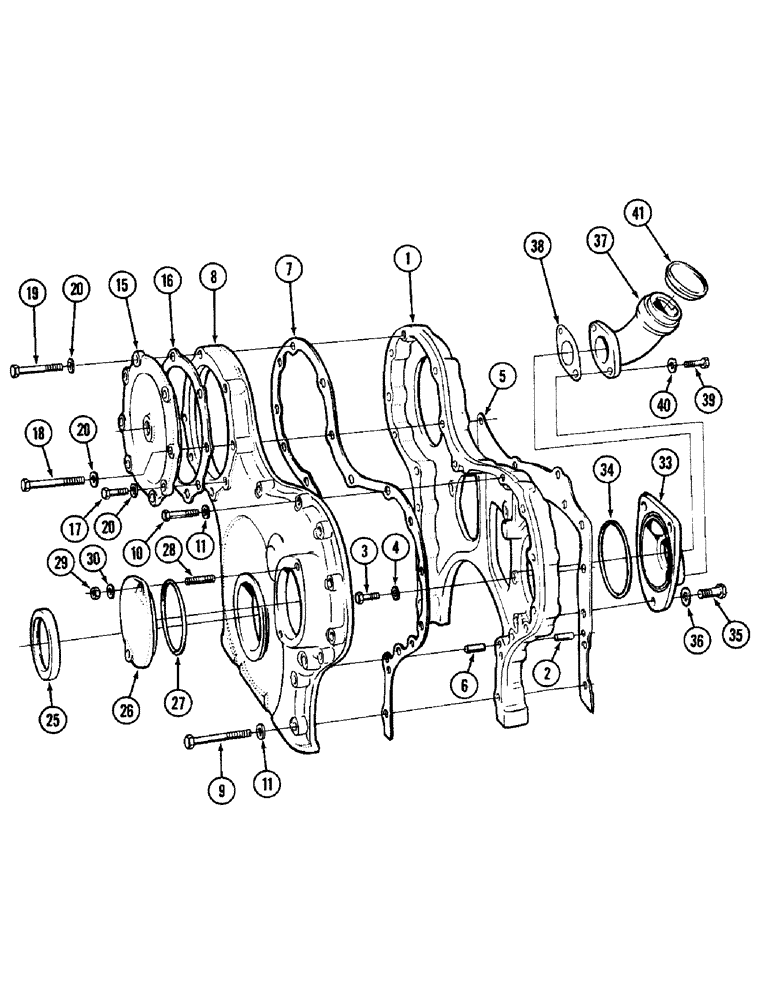

Запчасти Case IH 4890 (3-54) - TIMING GEAR COVER, 674 CUBIC INCH DIESEL ENGINE (03) - FUEL SYSTEM

1

A45862

HOUSING

ASSEMBLY - timing gear

1шт.

2

A45971

PIN

- guide

2шт.

3

813-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- 10 x 1.5 x 30 MM hex.

7шт.

4

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

7шт.

5

A46437

GASKET

-, Serial Range: housing-block

1шт.

6

A45971

PIN

- guide, Serial Range: cover-housing

2шт.

7

A46439

GASKET

-, Serial Range: cover-housing

1шт.

8

A45865

COVER

- timing gear housing (Includes bushings)

1шт.

9

813-10085

BOLT,Hex, M10 x 1.5 x 85mm, Cl 8.8

- 10 x 1.5 x 85 MM hex.

6шт.

10

813-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- 10 x 1.5 x 45 MM hex.

7шт.

11

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

13шт.

15

A45870

COVER

- drive gear, injection pump

1шт.

16

A45871

GASKET

- cover

1шт.

17

813-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- 10 x 1.5 x 30 MM hex.

1шт.

18

813-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

- 10 x 1.5 x 100 MM hex.

1шт.

19

813-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 8.8

- 10 x 1.5 x 65 MM

6шт.

20

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

8шт.

25

A46435

SEALING RING

- oil, crankshaft front

1шт.

26

A45869

COVER

- lower, front

1шт.

27

A46178

O-RING,99.5 mm ID x 3mm

- lower cover

1шт.

28

A45874

STUD

- lower cover

2шт.

29

825-1010

NUT,M10, Cl 8

- 10 MM hex.

2шт.

30

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

2шт.

33

A45872

COVER

- rear, oil filler mounting

1шт.

34

A45876

RING,119.5 mm ID x 125.5 mm OD

O-RING - rear cover

1шт.

35

813-14030

BOLT,Hex, M14 x 2 x 30mm, Cl 8.8, Full Thd

- 14 x 2.0 x 30 MM hex.

3шт.

36

A46179

WASHER

- cover bolt

2шт.

37

A46168

TUBE

- oil filler, engine oil

1шт.

38

A46436

GASKET

-, Serial Range: tube-cover

1шт.

39

813-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

40

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64" (9.52 x 22.22 x 1.98 MM)

2шт.

41

A46207

CAP

- oil filler tube

1шт.

A46512

PLUG

- timing gear cover (Not shown)

1шт.

A46513

WASHER

- timing gear cover plug (Not shown)

1шт.
