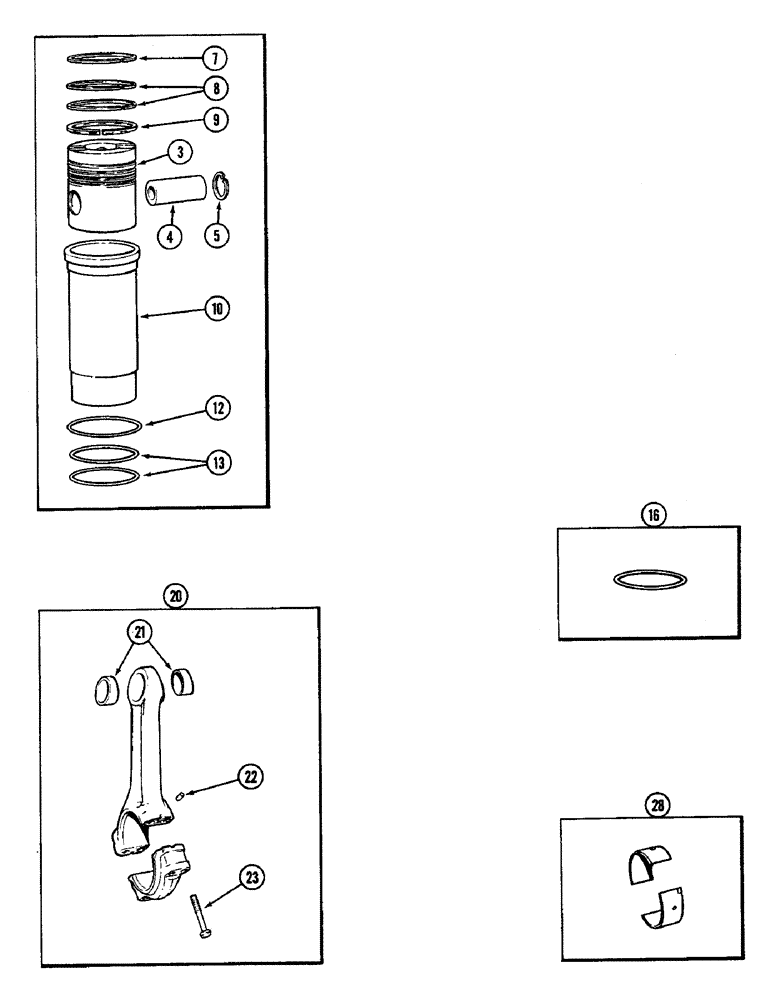

Запчасти Case IH 4890 (2-40) - PISTONS, CONNECTING RODS, 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

A46320

PISTON

ASSEMBLY - engine, Includes: Ref. 3 - 9

6шт.

3

NSS

NOT SOLD SEPARAT

PISTON - engine

1шт.

4

NSS

NOT SOLD SEPARAT

PIN - piston

1шт.

5

A46174

SNAP RING,M50, Int

RING - snap, piston pin retaining

2шт.

A46240

RING

KIT - piston, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

RING - compression (First groove)

1шт.

8

NSS

NOT SOLD SEPARAT

RING - compression (Second and third groove)

2шт.

9

NSS

NOT SOLD SEPARAT

RING - oil control (Fourth groove)

1шт.

10

A45832

SLEEVE

- piston (Cylinder liner)

6шт.

12

A45834

RING

- sealing, upper (In block)

3шт.

13

A45833

RING

- sealing, lower (In block)

6шт.

16

A45835

SHIM,0.20mm Thk

Sleeve 0.20mm Thk

1шт.

16

A45836

SHIM,0.25mm Thk

Sleeve 0.25mm Thk

1шт.

16

A45837

SHIM,.030mm Thk

Sleeve .030mm Thk

1шт.

16

A45838

SHIM,0.50mm Thk

Sleeve 0.50mm Thk

1шт.

16

CASA45839

SHIM

- sleeve (0.75 MM)

1шт.

20

A45894

ROD

ASSEMBLY - connecting, Includes: Ref. 21 - 23

6шт.

21

A45896

BEARING

BUSHING - piston pin (See ref. 26)

2шт.

22

A45898

PIN

DOWEL - cap locating

1шт.

23

A45897

BOLT

- connecting rod cap

4шт.

28

A46445

LINING

LINER - connecting rod bearing (Standard)

12шт.

28

A46446

PACKAGE

LINER - connecting rod bearing (0.25 MM undersize)

12шт.

28

A46447

LINING

LINER - connecting rod bearing (0.50 MM undersize)

12шт.

28

A46448

LINING

LINER - connecting rod bearing (0.75 MM undersize)

12шт.

28

A46426

LINING

LINER - connecting rod bearing (1.0 MM undersize)

12шт.

28

A46556

LINING

LINER - connecting rod bearing (1.25 MM undersize)

12шт.

28

A45557

RECTIFIER

LINER - connecting rod bearing (1.50 MM undersize)

12шт.

28

A45906

BEARING LINER

LINER - connecting rod bearing (2.00 MM undersize)

12шт.
