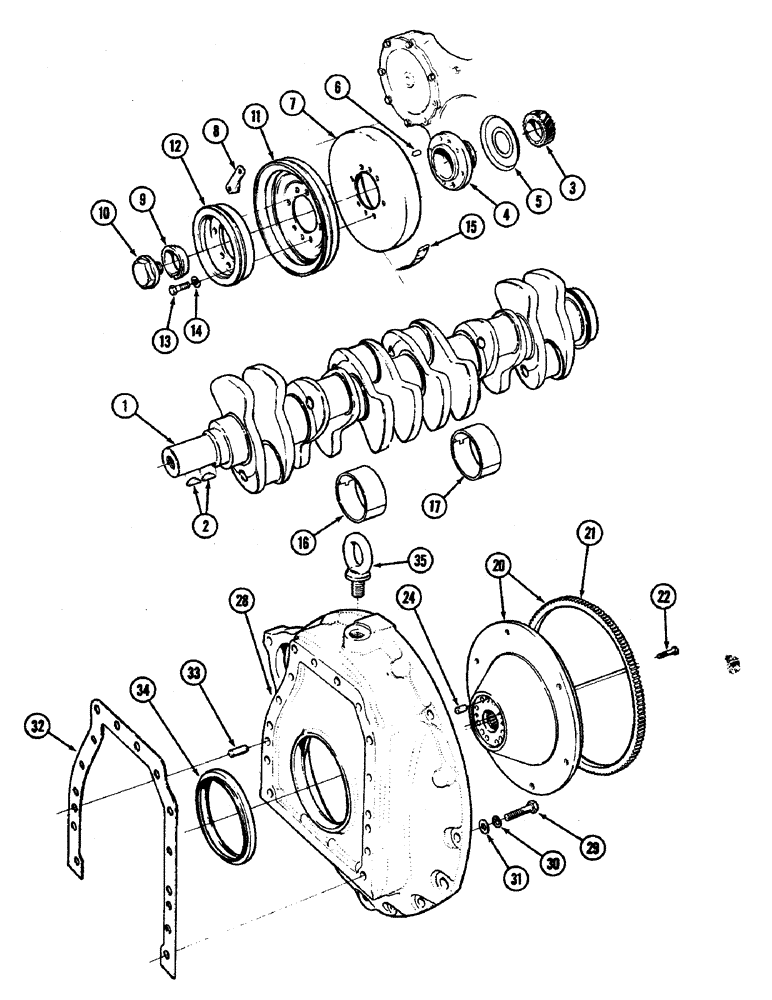

Запчасти Case IH 4890 (2-38) - CRANKSHAFT, FLYWHEEL AND HOUSING, 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A46616

CRANKSHAFT

- engine (Replaces A45907 and A46516)

1шт.

2

A46182

KEY

- pinion and, Serial Range: hub-crankshaft

2шт.

3

A45909

GEAR

PINION - crankshaft gear

1шт.

4

A46554

HUB

- damper (Replaces A46407)

1шт.

5

A46408

DEFLECTOR

- damper hub (Replaced by A46553)

1шт.

5

A46553

DEFLECTOR

- damper hub (Replaces A46408)

1шт.

6

A45921

PIN

- guide, Serial Range: damper-hub

2шт.

7

A45914

DAMPER

- vibration, crankshaft

1шт.

8

A46244

INDICATOR

- timing mark

1шт.

9

A45916

CONE

- damper hub

1шт.

10

A45917

SCREW

BOLT -, Serial Range: hub-crankshaft

1шт.

11

A45918

PULLEY

- two groove

1шт.

12

A45893

PULLEY

- small

1шт.

13

813-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

- 12 x 1.75 x 35 MM hex.

6шт.

14

195-533

WASHER,1/2", SAE

- 17/32 x 1-1/6 x 3/32" (13.49 x 26.99 x 2.38 mm)

6шт.

15

A46398

TAPE

- timing indicator

1шт.

16

A46441

LINING

LINER - main bearing, crankshaft (Standard) (Replaces A45820)

12шт.

16

A46476

LINING

LINER - main bearing, (.010 U/S) (Replaces A45822) (subs to 87403190 which is a set of two, only order 6 sets)

12шт.

16

A46442

LINING

LINER - main bearing, (.020" U/S) (Replaces A45823)

12шт.

16

A46443

BEARING LINER

LINER - main bearing, (.030 U/S)

12шт.

16

A46470

LINING

LINER - main bearing, (.040 U/S)

12шт.

16

A46471

BEARING LINER

LINER - main bearing, (.050 U/S)

12шт.

16

A46444

LINING

LINER - main bearing, (.060 U/S) (Replaces A45827)

12шт.

17

A46456

LINING

LINER - center bearing, crankshaft (Standard) (Replaces A45821)

2шт.

17

A46187

LINING

LINER - center bearing (101.37 MM undersize)

2шт.

17

A46188

LINING

LINER - center bearing (101.12 MM undersize)

2шт.

17

A46189

LINING

LINER - center bearing (100.87 MM undersize)

2шт.

17

A46472

LINING

LINER - center bearing (100.62 MM undersize)

2шт.

17

A46473

LINING

LINER - center bearing (100.37 MM undersize)

2шт.

17

A46192

LINING

LINER - center bearing (100.12 MM undersize)

2шт.

20

A46321

FLYWHEEL

ASSEMBLY - crankshaft, Includes: Ref. 21

1шт.

21

A46340

GEAR

- ring

1шт.

22

280264

BOLT,Hex, M14 x 50mm, Cl 8.8

Hex, M14 x 50, 8.8

8шт.

24

A45908

PIN

DOWEL -, Serial Range: flywheel-crankshaft

3шт.

28

A45877

HOUSING

- flywheel and oil seal

1шт.

29

813-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

- 12 x 1.75 x 45 MM hex.

14шт.

30

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

14шт.

31

195-533

WASHER,1/2", SAE

- 17/32 x 1-1/16 x 3/32" (13.5 x 27 x 2.4 mm)

14шт.

32

A46438

GASKET

-, Serial Range: housing-block

1шт.

33

A45971

PIN

- guide, Serial Range: housing-block

2шт.

34

A45879

SEAL

- oil, crankshaft rear

1шт.

35

A46171

BOLT

- lifting eye

1шт.
