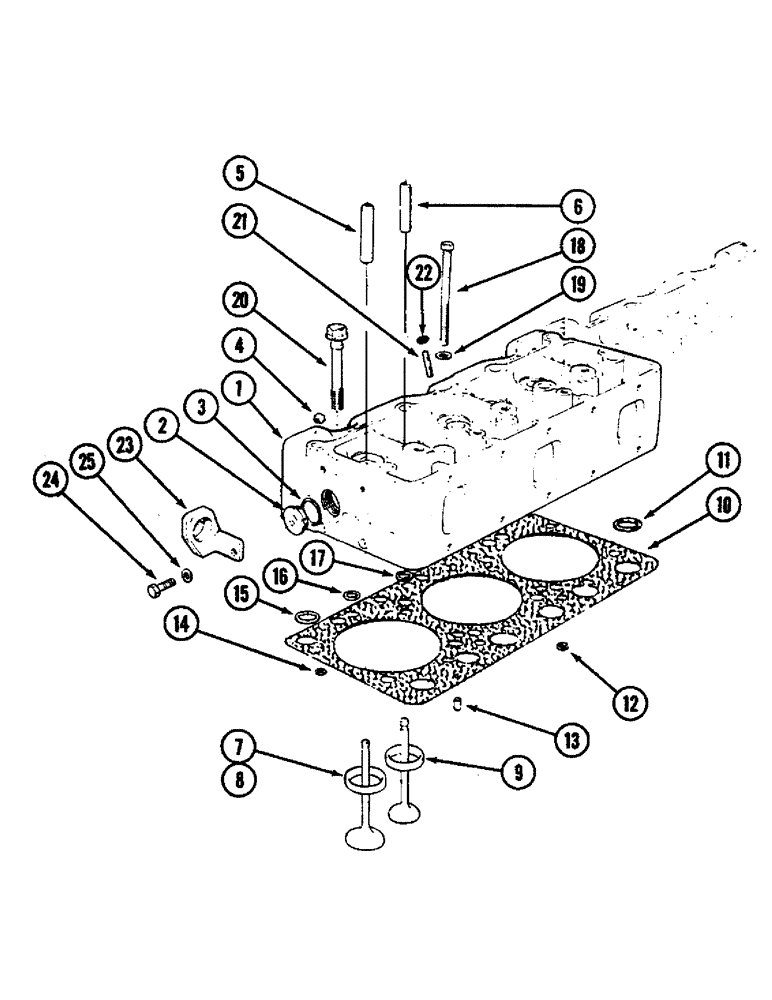

Запчасти Case IH 4890 (2-30) - CYLINDER HEAD, 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A46415

CYLINDER HEAD

HEAD ASSEMBLY - cylinder, Includes: Ref. 1 - 9, plug, and o-ring

2шт.

2

A45701

PLUG

- front and rear

2шт.

3

A45719

O-RING,39.3 mm ID x 1.6 mm

- plug

2шт.

4

A45720

PLUG

- side

3шт.

5

A46560

VALVE

GUIDE - intake valve (Replaces A46433)

3шт.

6

A46561

VALVE

GUIDE - exhaust valve (Replaces A46409)

3шт.

7

A46417

SEAT

- intake valve

3шт.

8

A46418

SEAT

- intake valve (Oversize)

3шт.

9

A45705

VALVE SEAT

SEAT - exhaust valve

3шт.

A46425

PLUG

- M27 x 1.5 MM (Not illustrated)

2шт.

A46424

RING

O-RING - M29.1 x 1.6 MM (Not illustrated)

2шт.

Ref #9A - A46867 Oversize Seat

1шт.

10

A45744

GASKET

- cylinder head to block (Steel)

2шт.

11

A45745

RING

- seal, head gasket (38.7 MM diameter)

12шт.

12

A45746

RING

- seal, head gasket (15.7 MM diameter)

4шт.

13

A45970

PIN

DOWEL -, Serial Range: head-block

4шт.

14

A46345

RING

- seal, head gasket (12.7 MM diameter)

2шт.

15

A46291

RING

- seal, head gasket (32.7 MM diameter)

2шт.

16

A46290

RING

- seal, head gasket (19.7 MM diameter)

18шт.

17

A45747

RING

- seal, head gasket (23.7 MM diameter)

4шт.

18

A45751

STEP BOLT

BOLT - cylinder head to block (16 x 170 MM)

22шт.

19

A45763

WASHER

- head bolt

22шт.

20

A45752

STEP BOLT

BOLT - cylinder head to block (18 x 110 MM)

6шт.

21

A45714

STUD

- injector nozzles (Used with A46570 nozzle, Figure 3-66)

12шт.

21

A46567

STUD

- injector nozzle (Used with A46044 nozzle, Figure 3-64)

12шт.

22

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

12шт.

23

A45440

BRACKET

- lift, cylinder head

1шт.

24

864-10025

HEX SOC SCREW,M10 x 25mm, Cl 8.8

BOLT - 10 x 1.5 x 25 MM hex.

2шт.

25

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

2шт.
