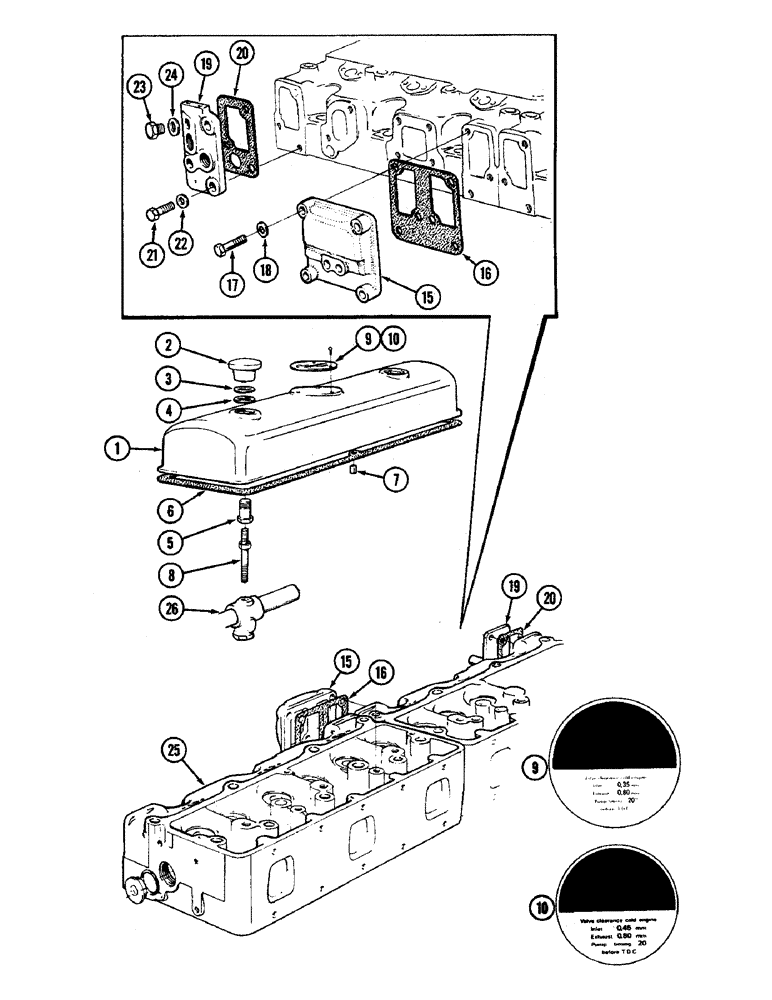

Запчасти Case IH 4890 (2-28) - CYLINDER HEAD COVERS, 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A46528

COVER

- valve and head

2шт.

Engine serial no. 5243345 and after. Engine serial no. 3027228 and after.

1шт.

NLS

NO LONGER SERVICED

- grip, cover fastener (Not shown)

4шт.

Engine serial no. 5243345 and after. Engine serial no. 3027228 and after.

1шт.

A46364

WASHER

- fastener nut (See item 3)

4шт.

Engine serial no. 5243345 and after. Engine serial no. 3027228 and after.

1шт.

A46530

SEALING RING

- rubber, nut to cover (Not shown)

4шт.

Engine serial no. 5243345 and after. Engine serial no. 3027228 and after.

1шт.

1

A46373

COVER

ASSEMBLY - valve and head, Includes: Ref. 2 - 5

2шт.

Prior to engine serial no. 5243345. Prior to engine serial no. 3027228.

1шт.

2

A45735

NUT

- grip, cover fastener

2шт.

3

A46364

WASHER

- fastener nut

2шт.

4

A46365

GASKET

- rubber, Serial Range: nut-cover

2шт.

5

A45738

ADAPTER

- cover nut

2шт.

6

A45742

GASKET

-, Serial Range: cover-head

2шт.

7

A45743

PIN

- tension, Serial Range: cover-head

8шт.

8

A45728

STUD

- valve cover and, Serial Range: bracket-head

4шт.

9

321-4195

DECAL

- valve clearance

1шт.

Prior to engine serial no. 5247395. Prior to engine serial no. 3029066.

1шт.

10

A166862

DECAL

- valve clearance

1шт.

Engine serial no. 5243345 and after. Engine serial no. 3029066 and after.

1шт.

15

A45754

FLANGE

- water connection, cylinder head

1шт.

16

A46383

MANIFOLD GASKET

-, Serial Range: flange-head

1шт.

17

813-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

- 12 x 1.75 x 50 MM hex.

2шт.

18

195-533

WASHER,1/2", SAE

- 17/32 x 1-1/6 x 3/32" (13.49 x 26.99 x 2.38 mm)

2шт.

19

A45756

COVER

- cylinder head, rear RH side

1шт.

20

A46170

GASKET

- rear cover (Replaces by A46566)

1шт.

20

A46566

GASKET

- rear cover (Replaces A46170)

1шт.

21

813-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

- 12 x 1.75 x 35 MM hex.

3шт.

22

195-533

WASHER,1/2", SAE

- 17/32 x 1-1/16 x 3/32" (13.49 x 26.99 x 2.38 mm)

3шт.

23

A45764

PLUG

- cover

1шт.

24

A45766

GASKET

WASHER - plug

1шт.

25

REF

INSTRUCTION

HEAD - cylinder (See Figure 2-30)

2шт.

26

REF

INSTRUCTION

SHAFT - rocker arm (See Figure 2-32)

2шт.
