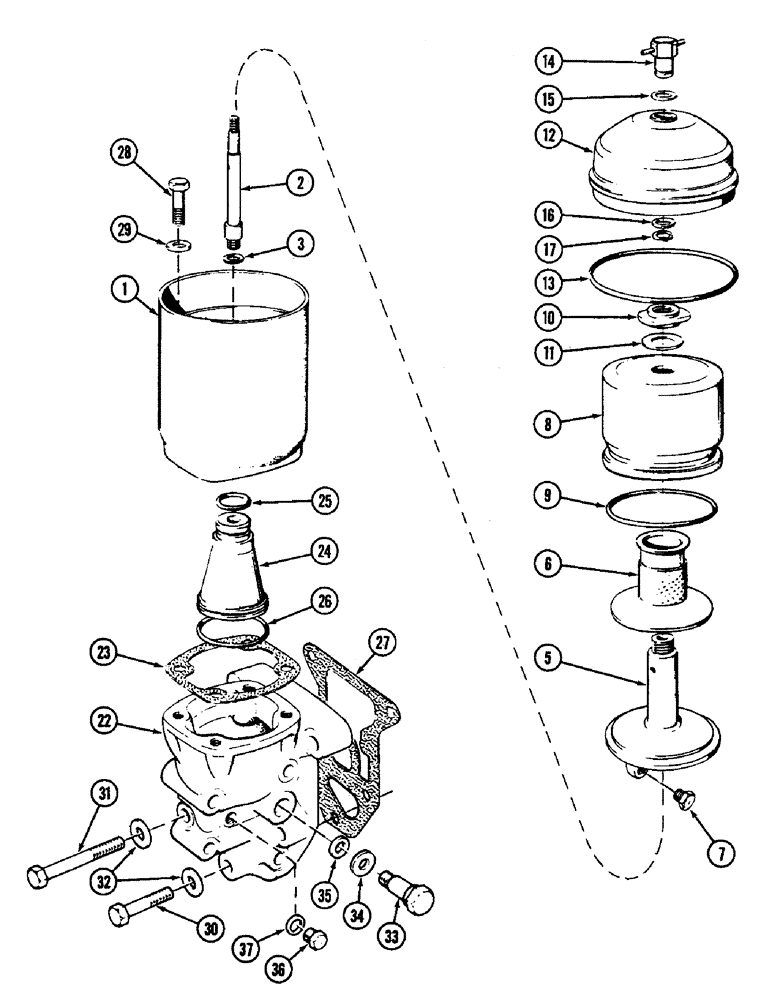

Запчасти Case IH 4890 (2-26) - OIL FILTER, 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

A45973

CLEANER

FILTER ASSEMBLY - engine oil, Includes: Ref. 1 - 17

1шт.

1

A45975

HOUSING

- oil filter

1шт.

2

A45978

SPINDLE

- rotor

1шт.

3

A45993

WASHER

- spindle

1шт.

5

A45980

ROTOR

- oil filter

1шт.

6

A45981

CLEANER

FILTER - oil

1шт.

7

A45982

NOZZLE CAP

NOZZLE - rotor

2шт.

8

A45983

COVER

- filter

1шт.

Use A48511 if Aluminum, or A48514 if Steel

1шт.

9

A45991

O-RING,4.359" ID x 4.637" OD

- cover to rotor

1шт.

Part of oil filter gasket kit, P/N A46294

1шт.

10

A45984

NUT

- cover

1шт.

11

A45994

WASHER

- cover nut

1шт.

12

A45985

COVER

- body

1шт.

13

A45992

O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro

- cover

1шт.

Part of oil filter gasket kit, P/N A46294

1шт.

14

A45986

NUT

ASSEMBLY - lock, cover, Includes: Ref. 15 - 17

1шт.

15

A45995

GASKET

- cover nut

1шт.

Part of oil filter gasket kit, P/N A46294

1шт.

16

A45996

WASHER

- cover nut

1шт.

17

A45987

RING

- snap, cover nut

1шт.

Part of oil filter gasket kit, P/N A46294

1шт.

22

A46396

BRACKET

- oil filter

1шт.

23

A45976

GASKET

- filter, Serial Range: housing-bracket

1шт.

Part of oil filter gasket kit, P/N A46294

1шт.

24

A45977

FILTER, ELEMENT

ELEMENT - oil filter

1шт.

25

A46176

RING,26.2 mm ID x 32.2 mm OD

O-RING - element (Small)

1шт.

Part of oil filter gasket kit, P/N A46294

1шт.

26

A45920

O-RING

- element (Large)

1шт.

Part of oil filter gasket kit, P/N A46294

1шт.

27

A45988

GASKET

-, Serial Range: bracket-block

1шт.

Part of oil filter gasket kit, P/N A46294

1шт.

28

813-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- 10 x 1.5 x 35 MM hex.

4шт.

29

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

4шт.

30

813-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- 10 x 1.5 x 45 MM hex.

4шт.

31

813-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

- 10 x 1.5 x 100 MM

1шт.

32

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

5шт.

33

A46411

PLUG

- filter bracket

1шт.

34

A46177

O-RING,13.3 mm ID x 18.1 mm OD

- pressure switch

1шт.

Part of oil filter gasket kit, P/N A46294

1шт.

35

A45997

GASKET

- pressure switch

1шт.

Part of oil filter gasket kit, P/N A46294

1шт.

36

A45990

PLUG

- bracket

1шт.

37

A45731

GASKET

- plug

1шт.

A46294

KIT

- gasket, oil filter, Includes: Refs. 9, 13, 15, 17, 23, 25, 26, 27, 34 and 35, plus A46154 oil cooler gasket ref. 10 Figure 2-24) (See general overhaul kit Figure 2-48)

1шт.
