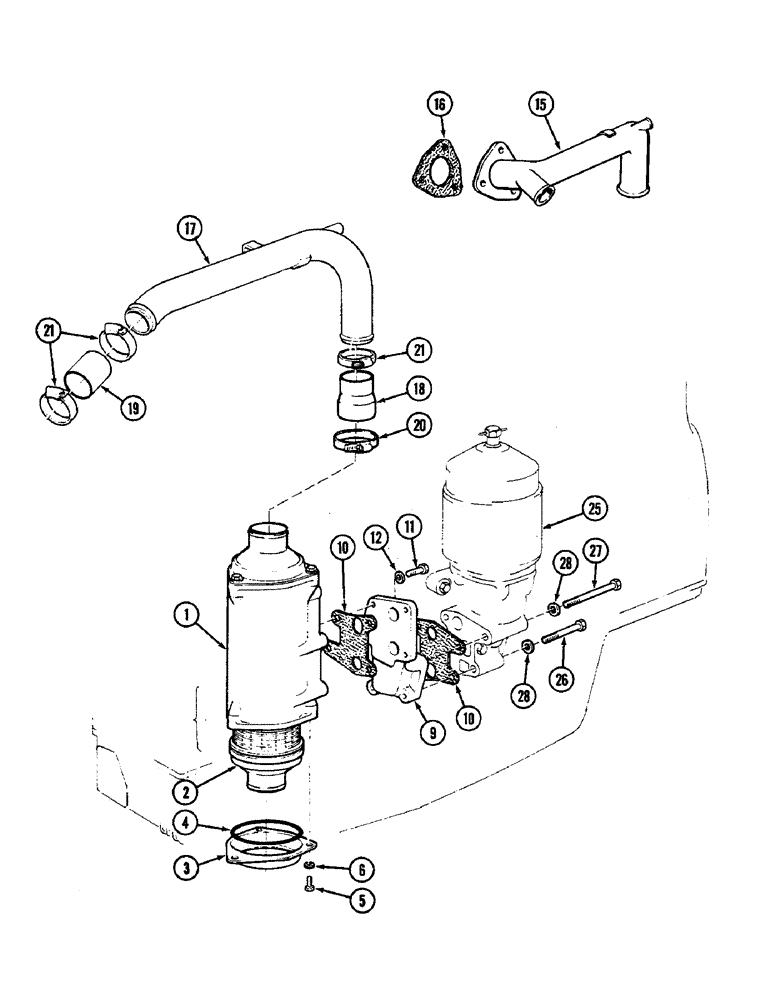

Запчасти Case IH 4890 (2-24) - OIL COOLER, 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
A46150
COOLER
ASSEMBLY - engine oil, Includes: Ref. 2 - 6
1шт.
1
A46151
HOUSING
BODY - cooler assembly
1шт.
2
NSS
NOT SOLD SEPARAT
ELEMENT - cooler (Cleanable type)
1шт.
3
A46196
COVER
- cooler element
1шт.
4
A46195
O-RING,3.859" ID x 4.137" OD
- cover seal
2шт.
5
813-6016
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd
- 6 x 1 x 16 MM
6шт.
6
195-515
WASHER,#12
- 1/4 x 1/2 x 3/64" (6.35 x 12.7 x 1.19 MM)
6шт.
9
A46153
BRACKET
- mounting, oil cooler and cleaner, with bushings
1шт.
10
A46154
GASKET
- cooler and, Serial Range: cleaner-bracket
2шт.
11
813-10080
BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8
- 10 x 1.5 x 30 MM (Cooler to bracket)
4шт.
12
195-525
WASHER,3/8", SAE
- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)
4шт.
15
A46540
TUBE
- cooler to water pump
1шт.
Engine serial no. 5243345 and after. Engine serial no. 3027228 and after.
1шт.
16
A46542
GASKET
- tube to water pump
1шт.
Ref #16 - (3 Hole)
1шт.
Engine serial no. 5243345 and after. Engine serial no. 3027228 and after.
1шт.
17
A46378
TUBE
- cooler to water pump
1шт.
Prior to engine serial no. 5243345. Prior to engine serial no. 3027228.
1шт.
18
A46541
HOSE
-, Serial Range: tube-cooler
1шт.
Engine serial no. 5243345 and after. Engine serial no. 3027228 and after.
1шт.
18
A46199
HOSE
-, Serial Range: tube-cooler
1шт.
Prior to engine serial no. 5243345. Prior to engine serial no. 3027228.
1шт.
19
A46200
HOSE
- tube to water pump
1шт.
Prior to engine serial no. 5243345. Prior to engine serial no. 3027228.
1шт.
20
214-262
HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm
CLAMP - hose to cooler, 2-5/16" to 3-1/4" (58.7 MM to 82.6 MM)
1шт.
21
214-258
HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm
(33.3 mm to 57.2 mm) #28, 1.31/2.25 Type F Worm
3шт.
25
REF
INSTRUCTION
FILTER ASSEMBLY - engine oil (See Figure 2-26)
1шт.
26
813-10075
BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8
- 10 x 1.5 x 75 MM hex.
1шт.
27
813-10100
BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8
- 10 x 1.5 x 100 MM hex.
3шт.
28
195-25
WASHER,3/8"
- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)
4шт.
