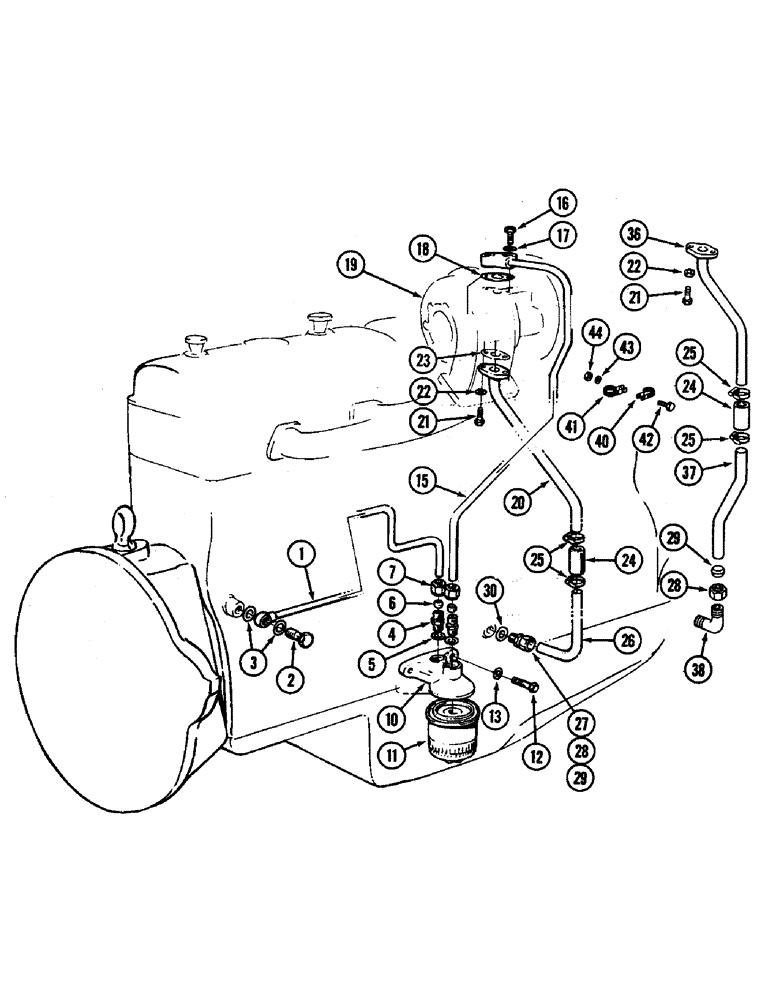

Запчасти Case IH 4890 (2-20) - TURBOCHARGER LUBRICATING SYSTEM, 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A45998

TUBE

- block to filter, lube oil

1шт.

Ref #1, #4, #6, & #15 - (15 mm)

1шт.

Prior to engine serial no. 5248560. Prior to engine serial no. 3029377.

1шт.

1

A46607

TUBE

- block to filter, lube oil

1шт.

Ref #1A, #4A, #6A, & #15A - (12 mm)

1шт.

Engine serial no. 5248560 and after. Engine serial no. 3029377 and after.

1шт.

2

A46600

BOLT

- hollow, Serial Range: tube-block

1шт.

Engine serial no. 5248560 and after. Engine serial no. 3029377 and after.

1шт.

2

A45999

BANJO BOLT

- hollow, Serial Range: tube-block

1шт.

Prior to engine serial no. 5248560. Prior to engine serial no. 3029377.

1шт.

3

A46323

WASHER

- gasket, tube fitting

2шт.

4

A45734

CONNECTOR, ELEC

CONNECTOR -, Serial Range: tube-filter

2шт.

Ref #1, #4, #6, & #15 - (15 mm)

1шт.

Prior to engine serial no. 5248560. Prior to engine serial no. 3029377.

1шт.

4

A46609

CONNECTOR, ELEC

CONNECTOR -, Serial Range: tube-filter

2шт.

Ref #1A, #4A, #6A, & #15A - (12 mm)

1шт.

Engine serial no. 5248560 and after. Engine serial no. 3029377 and after.

1шт.

5

A45850

GASKET

GASKET -, Serial Range: connector-filter

2шт.

6

A45741

SLEEVE

- connector to tube (15 MM)

2шт.

Ref #1, #4, #6, & #15 - (15 mm)

1шт.

Prior to engine serial no. 5248560. Prior to engine serial no. 3029377.

1шт.

6

A46611

SLEEVE

- connector to tube (12 MM)

2шт.

Ref #1A, #4A, #6A, & #15A - (12 mm)

1шт.

Engine serial no. 5248560 and after. Engine serial no. 3029377 and after.

1шт.

7

A46249

NUT

-, Serial Range: connector-tube

2шт.

Prior to engine serial no. 5248560. Prior to engine serial no. 3029377.

1шт.

7

A46610

NUT

-, Serial Range: connector-tube

2шт.

Engine serial no. 5248560 and after. Engine serial no. 3029377 and after.

1шт.

A46157

FILTER

ASSEMBLY - lube oil, Includes: Ref. 11 and 12

2шт.

10

NSS

NOT SOLD SEPARAT

HOUSING - filter

1шт.

11

A46158

FILTER, ELEMENT

ELEMENT - oil filter

1шт.

12

813-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- 10 x 1.5 x 30 MM hex.

2шт.

13

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

2шт.

15

A46159

TUBE

- lube oil, Serial Range: filter-turbocharger

1шт.

Ref #1, #4, #6, & #15 - (15 mm)

1шт.

Prior to engine serial no. 5248560. Prior to engine serial no. 3029377.

1шт.

15

A46608

TUBE

- lube oil, Serial Range: filter-turbocharger

1шт.

Ref #1A, #4A, #6A, & #15A - (12 mm)

1шт.

Engine serial no. 5248560 and after. Engine serial no. 3029377 and after.

1шт.

16

813-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- 10 x 1.5 x 35 MM hex.

2шт.

17

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

2шт.

18

A46160

GASKET

-, Serial Range: tube-turbocharger

1шт.

19

REF

INSTRUCTION

TURBOCHARGER - engine (See page 2-22)

1шт.

20

A46161

TUBE

- upper drain, turbocharger (See ref. 36)

1шт.

Prior to engine serial no. 5248560. Prior to engine serial no. 3029377.

1шт.

21

813-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- 10 x 1.5 x 25 MM

2шт.

22

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

2шт.

23

A46162

GASKET

- drain tube

1шт.

Prior to engine serial no. 5248560. Prior to engine serial no. 3029377.

1шт.

24

A46163

HOSE

- tube connecting

1шт.

25

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4" (30.2 MM to 44.5 MM)

2шт.

26

A46164

TUBE

- lower oil, Serial Range: return-block

1шт.

Prior to engine serial no. 5248560. Prior to engine serial no. 3029377.

1шт.

27

A46583

FITTING

NIPPLE -, Serial Range: tube-block

1шт.

Prior to engine serial no. 5248560. Prior to engine serial no. 3029377.

1шт.

28

A46582

NUT

- tube nipple

1шт.

29

A46584

CAP

FERRULE - return tube

2шт.

30

A46434

GASKET

-, Serial Range: connector-block

1шт.

36

A46601

TUBE

- upper drain, turbocharger (See ref. 20)

1шт.

Engine serial no. 5248560 and after. Engine serial no. 3029377 and after.

1шт.

37

A46602

TUBE

- lower oil, Serial Range: return-block

1шт.

Engine serial no. 5248560 and after. Engine serial no. 3029377 and after.

1шт.

38

A46603

FITTING

ELBOW - 90 degree, Serial Range: tube-block

1шт.

Engine serial no. 5248560 and after. Engine serial no. 3029377 and after.

1шт.

40

A46605

CLAMP

ASSEMBLY - tube (Used on ref. 36 and 20)

1шт.

41

A46612

CLAMP

ASSEMBLY - tube (Used on ref. 15)

1шт.

42

A46074

BOLT

- 6 x 22 MM

1шт.

43

195-515

WASHER,#12

- flat 1/4 x 1/2 x 3/64" (6.5 x 12.7 x 1.2 MM)

1шт.

44

825-1006

NUT,M6, Cl 8

- 6 MM

1шт.
