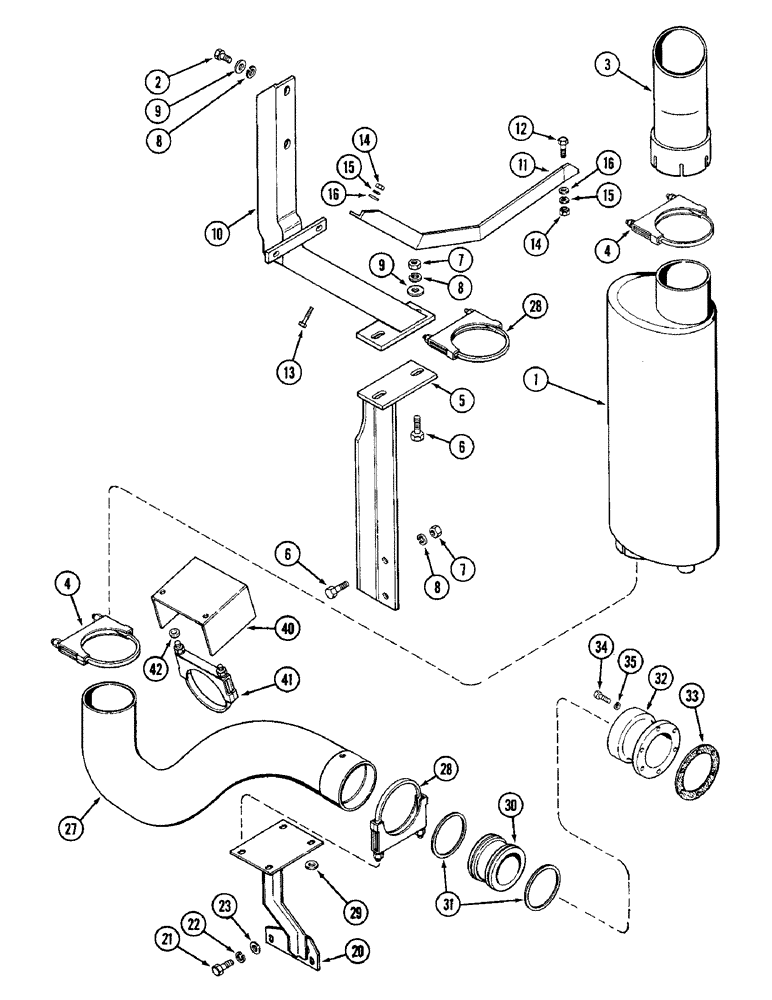

Запчасти Case IH 4890 (2-18) - EXHAUST TUBE AND MUFFLER, 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A142751

MUFFLER,W/ Spark Arrester

- exhaust

1шт.

2

113-2447

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

3

A161798

MUFFLER

DEFLECTOR - exhaust

1шт.

4

G142721

PITMAN

- muffler and deflector 5" (127 MM)

2шт.

5

A161763

SPINDLE

SUPPORT - muffler, Serial Range: bracket-frame

1шт.

6

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

9

195-106

WASHER,1/2"

- 9/16 x 1-3/8 x 7/64" (14.29 x 34.92 x 2.78 MM)

2шт.

10

A161761

SUPPORT

BRACKET - muffler mounting

1шт.

11

A152465

BRACE

- muffler bracket

1шт.

12

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

to fuel tank Hex, 3/8"-16 x 1 1/2", G5

2шт.

13

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(To muffler bracket) Hex, 3/8"-16 x 2", G5

2шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

16

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 MM)

4шт.

20

A150783

SUPPORT

- exhaust pipe bracket

1шт.

21

813-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- 12 x 1.75 x 30 MM hex. (To engine block)

2шт.

22

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

23

195-533

WASHER,1/2", SAE

- 17/32 x 1-1/16 x 3/32" (13.49 x 26.99 x 2.38 mm)

2шт.

27

A148148

PIPE

- exhaust, Serial Range: turbocharger-muffler

1шт.

28

A184592

CLAMP

- pipe bracket, 5" (127 MM)

2шт.

29

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 MM)

4шт.

30

A140857

JOINT

- expansion, Serial Range: pipe-coupling

1шт.

31

A20732

RING,101.78mm ID x 111.13mm OD x 2.37mm Thk

- compression, expansion joint

2шт.

32

A148911

COUPLING

COUPLING - turbocharger exhaust

1шт.

33

A140856

GASKET

- coupling flange

1шт.

34

864-10025

HEX SOC SCREW,M10 x 25mm, Cl 8.8

- cap, 10 x 1.5 x 20 MM hex. socket head

6шт.

35

192-407

LOCK WASHER,7/16"

7/16"

6шт.

40

A152264

GUARD

SHIELD - exhaust heat

1шт.

41

A142761

- shield

1шт.

42

A140435

BUSHING

SPACER -, Serial Range: clamp-shield

2шт.
